Cutter Cut-40 Control Cnc Water Jet HD Plasma Cutting Machine

Cutter Cut-40 Control Cnc Water Jet HD Plasma Cutting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $38000

≥2 Sets

US $37000

≥3 Sets

US $36000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Rated Power:: 3600w

Year:: 2019

Weight (KG):: 2000 KG

Product name:: Stinger Pro

Cutting mode:: HD plasma cutting

Cutting thickness:: 1 - 35mm

Height control:: Automatic voltage control

Running speed:: 0-20000mm/min

Motor:: Panasonic Servo Motor

Cutting size:: 3000 * 1500 mm

After-sales Service Provided:: Free spare parts

Quick Details

Place of Origin:: Shandong, China

Brand Name:: ARCBRO

Voltage:: 110/220V

Rated Power:: 3600w

Year:: 2019

Weight (KG):: 2000 KG

Product name:: Stinger Pro

Cutting mode:: HD plasma cutting

Cutting thickness:: 1 - 35mm

Height control:: Automatic voltage control

Running speed:: 0-20000mm/min

Motor:: Panasonic Servo Motor

Cutting size:: 3000 * 1500 mm

After-sales Service Provided:: Free spare parts

Product Description

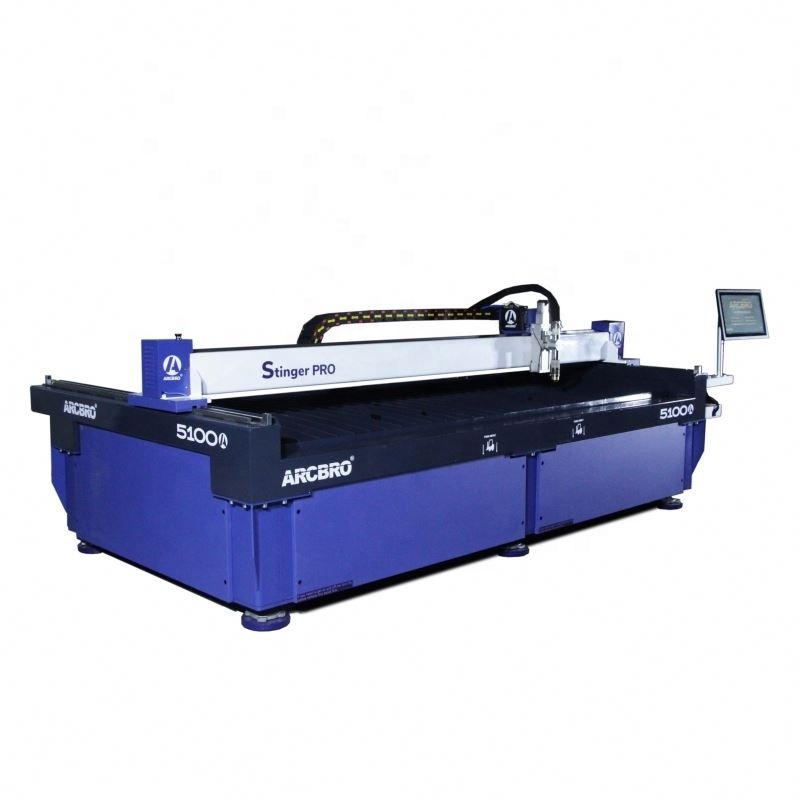

Stinger PRO 5100 - CNC HD PLASMA CUTTING TABLE FOR WORKSHOP PRO


         Stinger pro 5100 ArcBro flagship true hole HD plasma CNC cutting table launched in 2020.
This robust, industrial table is built with production in mind. The plasma table can handle the rigors of continuous production runs with industry leading repeatability and reliability. And it has been designed and built from the ground up by ARCBRO engineer team- ensuring a world class product with the quality and reliability you have come to expect.

          It meet all the requirements of HD cutting, improve production efficiency, reduce operating costs, comprehensively upgrade the cutting process, and build for all-day production.

          This one perfect plasma machine for every professional workshop own.

High productivity ≠ High cost


          A common thread in the technological advancement of plasma cutting since its invention is the continuous reduction in the cost per foot or meter of metal cut. This phenomenon, greatly accelerated in Stinger pro, is a primary driver of improved profitability for the user.

         The cutting speed is

          three times

         than flame cutting, but the unit cutting cost is only

          1/3 of the laser

         and same as flame cutting. Such high efficiency and low cost is what all users dream of. Right now, Stinger pro is the best choice to achieve this kind of requirement.


          Superior Machinery, every set is heat treated processed!


          1. Main frame and crossbeam are heat treated. Machine body strength and durability are maximized.

          2. High loaded iron gasket, guarantee machine leveling and absorb resonance.

          3. Fork lift position was already setup, easy to move.

          4. Magnetic anti-collision torch holder, connected by wire-rope, provide best torch protection

          5. Plasma cutting for HD true hole

          6. Cutting table is separated from machine frame. If cutting table is damaged by long time use, machine body get no any deformation.

          7. 21’’ industrial touch screen, best operation experience.

Fantastic perpendicularity. Say goodbye to annoying tapper!


          Stinger PRO can bring you a wonderful cutting quality, through all thickness. With HD plasma source ArcBlitz, this solution is able to meet ISO range 3 cutting quality. It means the taper angle is smaller than 2 degree. So, say goodbye to annoying tapper.

            The perfect hole technique is optional if you need to compare with drilling machine, we use perfect hole technology on bolt holes. It is the way more efficient.

             Unbeatable

            HD plasma power source - ArcBlitz

           ArcBlitz is the latest system ARCBRO plasma power supply product line, challenging the traditional plasma cutting industry concept.
ArcBlitz can increase cutting speed, significantly increase productivity and reduce operating costs. New ease-of-use features and engineered system optimization capabilities make ArcBlitz easier to run with minimal operator intervention, while ensuring optimal performance and unparalleled reliability.

Mild Steel	mm	inches
Pierce capacity	30	1.2
Severance	50	2
Stainless steel
Pierce capacity	25	1
Severance	20	3/4
Aluminum
Pierce capacity	25	3/4
Severance	25	1

Plug and play design,

upgrade your workshop!

To be more convenient, Stinger Pro has plug and play design. The operation data, wiring works and mechanism are all done before shipment. So, when you receive it, you can run it.

Product parameters:

Cutting mode	High definition plasma cutting
Input Voltage	110V / 220V
Frequency	50 / 60Hz
Cutting size	3000 * 1500 mm
Input power	3600w
Drive motor	Panasonic servo motor
Reducer	1:25
CNC controller	IPC
Plasma Power Source	ArcBlitz HD
Running Cutting Speed	0 - 20000 mm/min
Tolerance	≤ 0.3mm
Height Control	Automatic voltage THC

Our Services


             PRE-SALE SERVICE

              Service period: 7*24Hours

               1、

             Provide users with professional guidance and technical advice on CNC cutting technology

            2、

            Provide relevant procurement advice based on the user equipment usage environment and requirements

            3、

            Technical information:

             After the payment by the buyer, the supplier unit provides free of charge: machine instruction manual, basic production installation diagram, circuit diagram, gas supply drawing, power supply drawing.

              AFTER SALES SERVICE

               Service period: 7*24Hours

             1、After the final acceptance of the equipment, the quality assurance period of the whole machine is 18 months.

             2、During the warranty period, when the equipment failure occurs due to the quality of the equipment supplied by the seller, theseller will respond within 12 hours after receiving the buyer's notice, and free online troubleshooting, guidance repair orreplacement of parts.

             3、After the warranty expires, the equipment enters the paid service period, and the manufacturer only charges the cost and transportation costs.

              SERVICE FOR

              FREE

              1、Free installation of video, machine and using instructional videos of software, after-sales forums (please visit Arcbro official website - Support)

              2、Provide free machine instruction manual, basic production installation drawing, circuit diagram, gas supply drawing, power supply drawing

              3、Free online staff training (also available directly to manufacturers); multi-language CNC trainers: support one-on-one training in English, Russian, Spanish

              4、Free online technical support, technical consultation and machine diagnostics

              5、Warranty period: Free replacement of any machine fault parts, free online machine diagnosis . After the warranty period, the manufacturer only charges the cost and freight.

                   Thank you for your unquestioning inquiry

           and on-site guidance.

                   If you have any questions,

            please call or write us!

FAQ


              1. Are you the manufacture?

            Yes, we are. We are specializing in the plasma cutting area near 10 years. We have mature product lines. If you want to come andvisit, we absolutely welcome and we are willing to arrange the travel for you.

               2. How to ensure transportation on time?

            The customer can place an order in Alibaba, this is a third party and it will provide supervise and protect for buyer. If seller didn’t deliver the product in time, buyer can apply for a refund through the Ali platform to avoid losses.

              3. How about payment terms?

            The payment terms are optional, customer can choose at your convenience.

           【

           T/T, Alibaba Secure Payment, Western Union, Paypal, L/C】

               4. How can i find a most suitable cutting machine?

            We have most professional sales manager to help you choose the machine, and also, our strong engineer group will back up for anytechnology problems.

              5. How about after-service?

            Our warranty period is 18 months. If there is a problem with your machine during this period, we can provide the parts for free tosolve the problem. And customers who have reached a friendly transaction with us can enjoy lifelong technical support. If you needit, we can help you solve the problem through online communication, video and other means.

              6. Is there any benefits for becoming a dealer?

            Of course. If you have the strength and willingness to become our distributor, we will not only adjust the price. Secondly, we canprovide you with customized machines according to the sales habits of the buyer's market. More importantly, technically, we willsend professional engineers to give you on-the-spot guidance, so that you become the most understanding of the machine.
