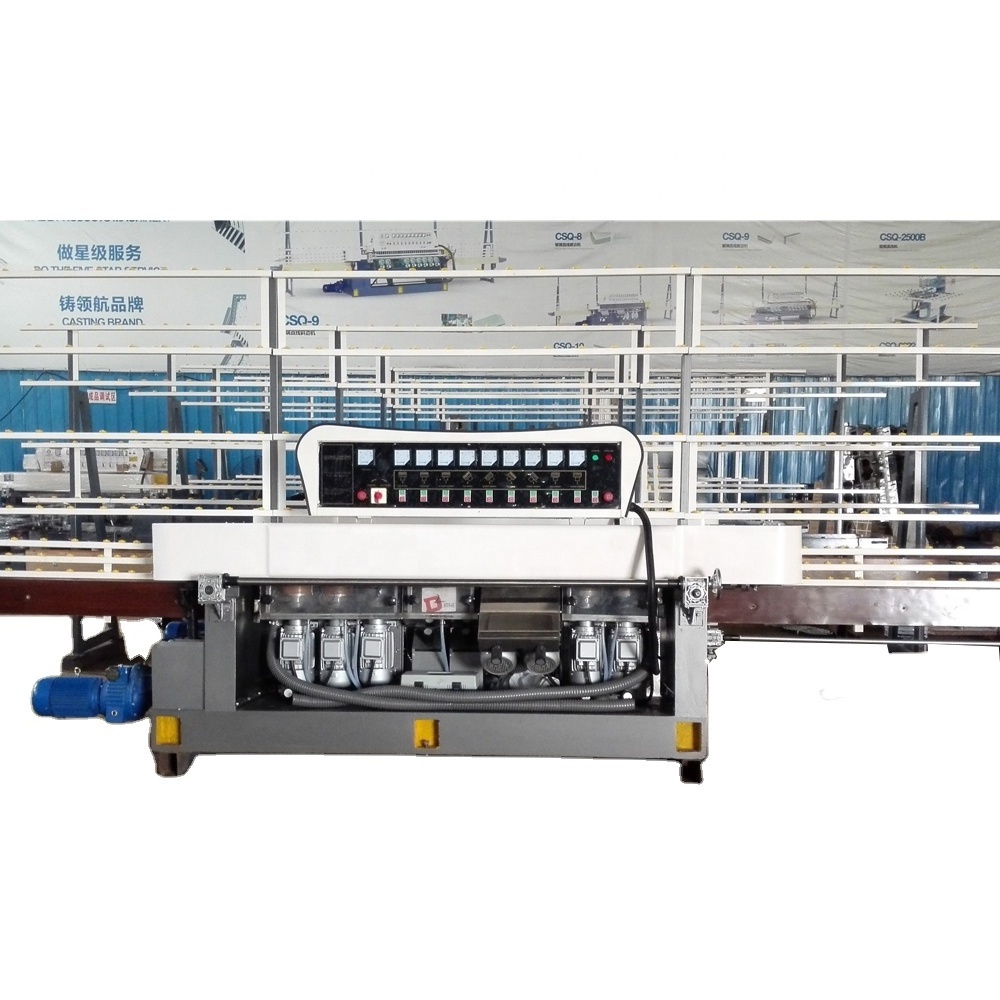

JFE-9243 Glass straight line edging and polishing machine with coarse grinding,fine-grinding, polishing and chamfering in one time.It's 9 grinding heads have a powerful function to eliminates lines of glass ,which can strongly improve the polishing brightness of glass.The base,front and rear beans,beds and grinding heads are of casting material, which can bear large loads and has stable performance.
The main features:
* simple operation
* high efficiency
* energy saving.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Global Jinfeng
-
Voltage:
-
220V/380V/415V, 380V/220V/415V
-
Power:
-
19KW
-
Dimension(L*W*H):
-
7000x1000x2500mm
-
Weight:
-
3200 kg, 3200KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Model:
-
JFE-9243
-
Function:
-
Glass straight line edging and polishing machine
-
Glass thickness:
-
3-25mm
-
Total power:
-
19KW
-
Land occupation:
-
7000x1000x2500mm
-
Seaport:
-
Shenzhen/Shunde/Guangzhou
-
Package:
-
Wrap film or wooden package
Quick Details
-
Machine Type:
-
Glass Edging Machine
-
Glass Thickness:
-
3-25mm
-
Production Capacity:
-
0.5-5 m/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Global Jinfeng
-
Voltage:
-
220V/380V/415V, 380V/220V/415V
-
Power:
-
19KW
-
Dimension(L*W*H):
-
7000x1000x2500mm
-
Weight:
-
3200 kg, 3200KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Model:
-
JFE-9243
-
Function:
-
Glass straight line edging and polishing machine
-
Glass thickness:
-
3-25mm
-
Total power:
-
19KW
-
Land occupation:
-
7000x1000x2500mm
-
Seaport:
-
Shenzhen/Shunde/Guangzhou
-
Package:
-
Wrap film or wooden package
Products Description
JFE-9243 Straight And Bevel Polish Machine Building Glass Edge Vertical Glass Polishing Machine
|
Model
|
JFE-9243
|
|
Glass thickness
|
3-25mm
|
|
Feeding speed
|
0.5-5 m/min
|
|
Min glass size
|
80x80mm
|
|
Max glass size
|
3000x3000mm
|
|
Power
|
19 KW
|
|
Weight
|
3200KG
|
|
Land occupation
|
7000x1000x2500mm
|
Details Images
1.
adjust the amount of grinding
The input can adjust the overall lifting height by adding and manually adjusting the screw.When the input belt is adjusted downward, the amount of grinding will increase. Using this method to adjust the amount of grinding will be more convenient than adjusting the height of the wheels.
2.
The variable-speed motor
The variable-speed motor is used to adjust the speed of transmission of the entire machine.When in use, the machine must be in a transmission state to be adjusted. variable-speed needs to go through the side viewing mirror. Observe whether the oil is turbid or low. If you need to add oil, use motorcycle oil. Generally, the oil can be changed once every 3 months.
3.Synchronous belt drive
relatively expensive, if the synchronous belt is damaged, it needs to be replaced as a whole.
4.Conveyor chain drive
It is composed of small rubber pads, and the glass straight line edge machine is generally equipped with a conveyor chain. If a few small rubber pads are damaged, they can be replaced independently, but when when many small rubber pads are damaged, it is recommended to replace the whole one.
5.
stainless steel tank
if the last polishing wheel is a felt polishing wheel, a separate water tank is required. When used for the first time, check whether the tank is full, open the water pump, and check the amount of water.
6.
two types of polishing: manual and pneumatic
The manual polishing wheel is a fixed grinding quantity, and the polishing effect is unstable。It is suitable for experienced operators; Pneumatic polishing has a stable effect because it can pneumatic control the position of the polishing wheel.It is suitable for inexperienced operators
Glass Effect
|
Item
|
Size
|
|
Pos.1 Diamond wheel
|
150x12x8x8mm
|
|
Pos.2 Diamond whee
|
150x12x8x8mm
|
|
Pos.3 Resin wheel(Chamfer)
|
130x12x10x10mm
|
|
Pos.4 DLD Wheel (Chamfer)
|
130x60x35mm 10S60
|
|
Pos.5 Resin wheel(Chamfer)
|
130x12x10x10mm
|
|
Pos.6 DLD Wheel (Chamfer)
|
130x60x35 10S60(Made in China)
|
|
Pos.7 Resin wheel
|
150x12x10x10mm
|
|
Pos.8 DLD Wheel
|
150x70x40mm 10S40(Made in China)
|
|
Pos.9 DLD Wheel
|
150x70x40mm 10S60(import)
|
Motor
Fluent Strip
Windows Control Panel
Other accessories
Product packaging
Plywood case
Plywood case is generally used for LCL, which is firm and not easily deformed, suitable for long-term transportation and storage.
