Quick Details
-
Rated Lifting Moment:
-
23 T*M
-
Max. Lifting Height:
-
9.5m
-
Place of Origin:
-
China
-
Crane type:
-
Other crane
-
Key words:
-
spider crane
-
Brand:
-
HW
-
Style:
-
High-quality
-
Usage:
-
10 years
-
Slewing angle:
-
360 Degree Rotation
-
Products item:
-
New products
-
Color:
-
Green
-
Applicaton:
-
100
-
Ground pressure:
-
36Kpa
Quick Details
-
Weight (KG):
-
550
-
Application:
-
Construction
-
Rated Loading Capacity:
-
3 ton
-
Rated Lifting Moment:
-
23 T*M
-
Max. Lifting Height:
-
9.5m
-
Place of Origin:
-
China
-
Crane type:
-
Other crane
-
Key words:
-
spider crane
-
Brand:
-
HW
-
Style:
-
High-quality
-
Usage:
-
10 years
-
Slewing angle:
-
360 Degree Rotation
-
Products item:
-
New products
-
Color:
-
Green
-
Applicaton:
-
100
-
Ground pressure:
-
36Kpa
Product Description
Specification
|
Specifications
|
|
Stretch
|
|
||
|
Operating radius
|
2.89t within 1.3m
|
Boom form
|
5 sections fully automatic
|
||
|
Maximum operating radius
|
8.45m
|
Undulation angle
|
|
||
|
Maximum ground lifting height
|
9.5m
|
Boom angle
|
0-75°
|
||
|
Winch
|
|
Rotation
|
|
||
|
Lifting speed of hook
|
3.6m/min(4 times）
|
Rotation angle
|
360° continuous rotation
|
||
|
Winch
|
Wire rope
|
Move
|
|
||
|
Diameter and length
|
Φ8mmX50m
|
Move method
|
Hydraulic walking
|
||
|
Outrigger
|
|
Walking speed
|
Infinitely variable speed 0-2km/h
|
||
|
Outrigger form
|
Breaststroke
|
Walking device
|
Synthetic rubber
|
||
|
Outrigger stretch
|
The first stage is automatic, the second stage is manually adjusted
|
Gradeability
|
30°
|
||
|
Maximum reach
|
The distance between the two legs is 4.04m (width) x 3.47m (length)
|
Ground pressure
|
36Kpa
|
||
|
Power
|
|
Fuel tank capacity
|
|
||
|
Environmental power
|
Single cylinder machine or three-phase motor 3KW
|
Hydraulic oil tank volume
|
30L
|
||
|
Dimensions
|
|
|
|
||
|
Crane shape (length x width x height)
|
2950x950x1500(mm)
|
|
|
||

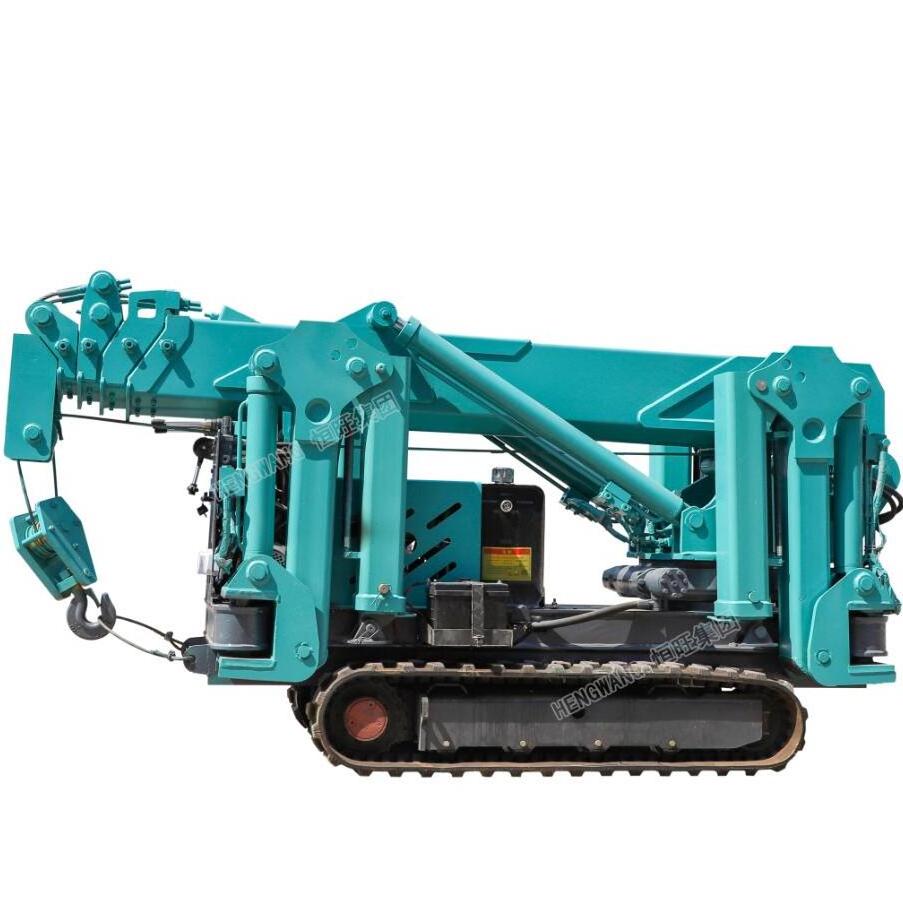

Product Detail
