Quick Details
-
Brand Name:
-
RFIDHY
-
Keyword:
-
Nfc Card Reader
-
Dimensions:
-
98.0(L) x 65.0(W) x 12.8(H)
-
Weight:
-
70.0 g
-
Interface:
-
USB Full Speed
-
Operating Distance:
-
Up to 50 mm (depends on the tag type)
-
Supply Voltage:
-
Regulated 5V DC
-
Supply Current:
-
200mA (operating); 50mA (standby); 100mA (normal)
-
Operating Frequency:
-
13.56 MHz
-
Smart Card Interface Support:
-
ISO14443 Type A & B, MIFARE, FeliCa, etc.
-
Compliance / Certifications:
-
ISO 18092, ISO 14443, PC/SC, CCID, CE, etc.
Quick Details
-
Frequency:
-
13.56Mhz
-
Protocol:
-
ISO 14443A
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
RFIDHY
-
Keyword:
-
Nfc Card Reader
-
Dimensions:
-
98.0(L) x 65.0(W) x 12.8(H)
-
Weight:
-
70.0 g
-
Interface:
-
USB Full Speed
-
Operating Distance:
-
Up to 50 mm (depends on the tag type)
-
Supply Voltage:
-
Regulated 5V DC
-
Supply Current:
-
200mA (operating); 50mA (standby); 100mA (normal)
-
Operating Frequency:
-
13.56 MHz
-
Smart Card Interface Support:
-
ISO14443 Type A & B, MIFARE, FeliCa, etc.
-
Compliance / Certifications:
-
ISO 18092, ISO 14443, PC/SC, CCID, CE, etc.

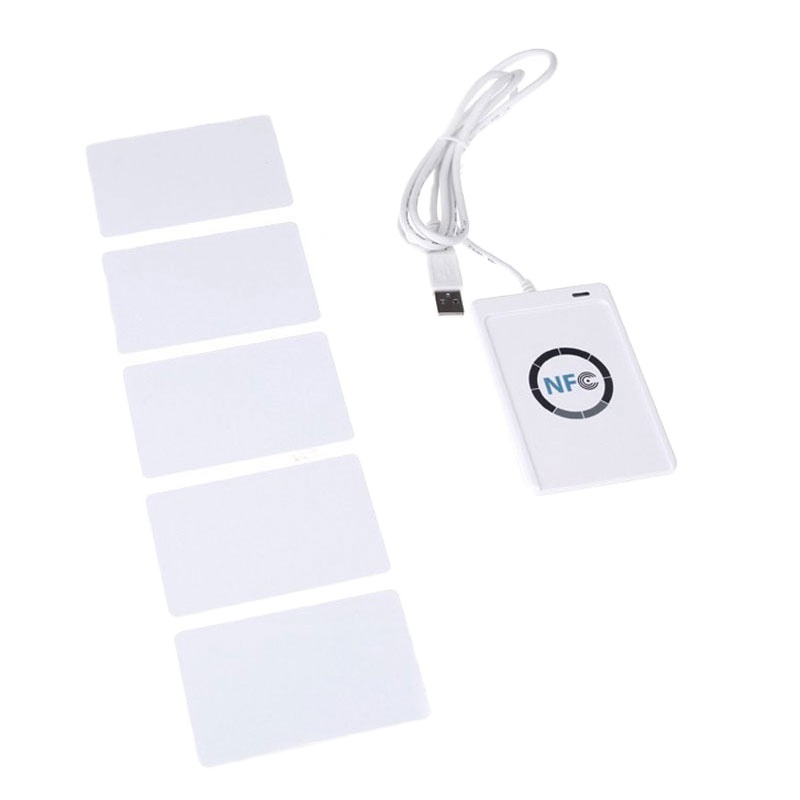

Hot Sell 13.56MHz NFC Chip Card Reader Writer with USB Interface and Free Software for IC Card Copier
| Product Description |
The Nfc Card Reader is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only MIFARE® and ISO 14443 A and B cards, but also all four types of NFC tags. ACR122U is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U can also read and write more quickly and efficiently. The proximity operating distance of ACR122U is up to 5 cm, depending on the type of contactless tag in use. |
| Dimensions | 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H) |
| Weight |
70.0 g
|
| Interface | USB Full Speed |
| Operating Distance | Up to 50 mm (depends on the tag type) |
| Supply Voltage | Regulated 5V DC |
| Supply Current | 200mA (operating); 50mA (standby); 100mA (normal) |
| Operating Temperature | 0-50 °C |
| Operating Frequency | 13.56 MHz |
| Smart Card Interface Support |
> ISO14443 Type A & B > MIFARE > FeliCa > 4 types of NFC (ISO/IEC18092) tags |
| Compliance / Certifications | ISO 18092, ISO 14443, PC/SC, CCID, EN60950/ISO 60950, CE, FCC, MIC, KC, VCCI, RoHS 2, USB Full Speed, Microsoft® WHQL |
| Operating System Support |
> Windows® > Win CE 5.0 and 6.0
> Linux®
|
| Professional RFID Reader Factory here now. OEM and ODM One-stop service Customized, happy send sample to you confirm quality. www.rfidhy.com ; huayuan @rfidhy.com | |
> e-Government
> Banking & Payment
> e-Healthcare
> Access Control
> Network Security
> e-Purse & Loyalty
> Transportation
|
Good RFID Reader Factory Supplier save you time and money, help your win market . Contact us: huayuan @rfidhy.com |
| 1. USB 2.0 Full Speed Interface |
| 2. CCID Compliance |
|
3. Smart Card Reader: > Read/write speed up to 424 kbps > Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type) > Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags > Built-in anti-collision feature (only 1 tag is accessed at any time) |
|
4. Application Programming Interface: > Supports PC/SC > Supports CT-API (through wrapper on top of PC/SC) |
|
5. Peripherals:
> User-controllable bi-color LED
|
| 6. Supports Android™ OS 3.1 and above |
| Key Benefits of ACR122U |
| - NFC-enabled : Supports NFC tag Type 1 to Type 4 for different applications |
| - PICC Support : Supports most of the ISO 14443 Type A and B cards, like MIFARE cards |
| - Ease of Integration : PC/SC Interface; Slim design |
| - Competitive Cost : ACR122U is made affordable in order to extensively share and promote NFC technology to customers. |
| - Driver-Free : The Unified driver is installed through Windows Update. |
| Professional RFID Reader factory here now. OEM and ODM One-stop service Customized, happy send sample to you confirm quality. www.rfidhy.com ; E: huayuan @rfidhy.com |
