Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SWI
-
Display mode:
-
IPS TFT
-
Resolution:
-
80(RGB)x160
-
Active Area:
-
10.8mmx21.7mm
-
Panel Size:
-
13.5mmx27.95mmx1.5mm
-
Drive IC:
-
ST7735S
-
Interface Type:
-
4-wire SPI
-
Module Connecting Type:
-
Soldering
-
Brightness:
-
400 Cd/m2 (Typ.)
-
Pins:
-
13
-
Color:
-
262K Colors
Quick Details
-
Type:
-
IPS
-
Display Size:
-
0.96inch
-
Supplier Type:
-
Manufacturer
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SWI
-
Display mode:
-
IPS TFT
-
Resolution:
-
80(RGB)x160
-
Active Area:
-
10.8mmx21.7mm
-
Panel Size:
-
13.5mmx27.95mmx1.5mm
-
Drive IC:
-
ST7735S
-
Interface Type:
-
4-wire SPI
-
Module Connecting Type:
-
Soldering
-
Brightness:
-
400 Cd/m2 (Typ.)
-
Pins:
-
13
-
Color:
-
262K Colors
Display General Description

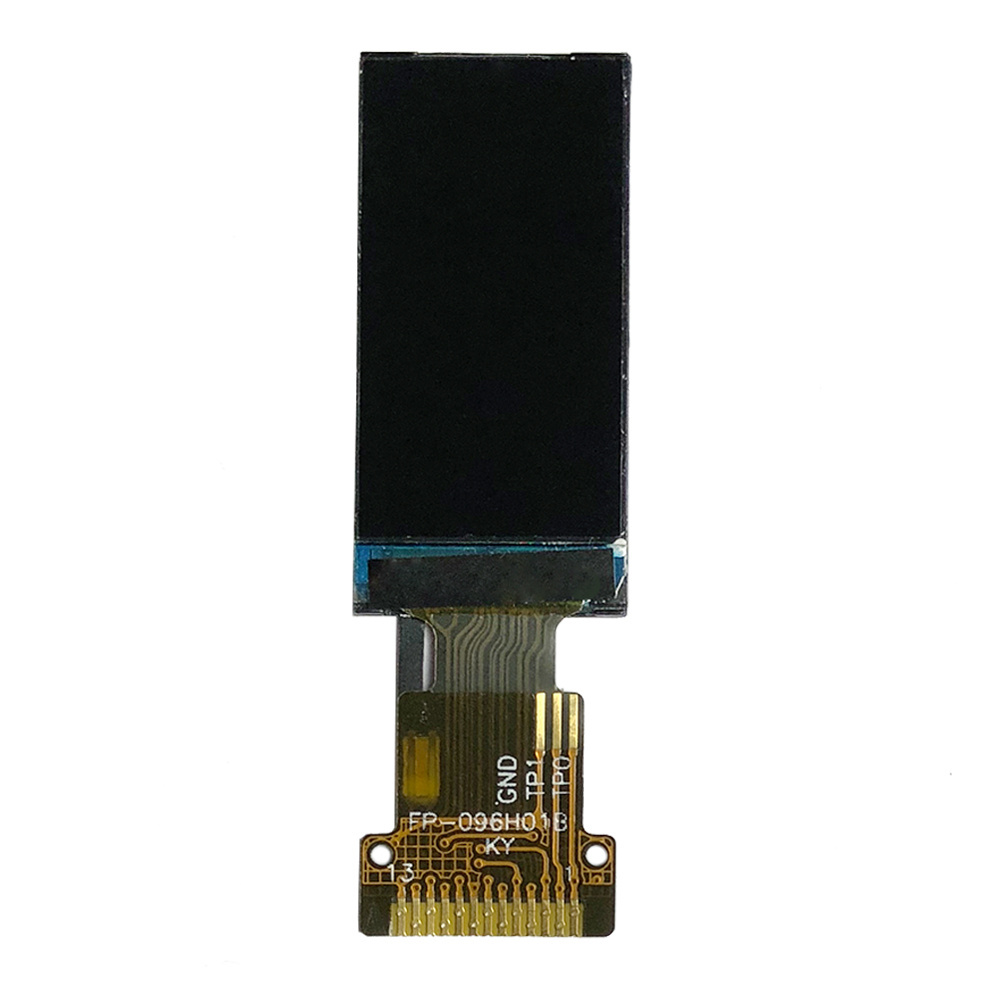

The LH096NT-IG11G is a small and vibrant 0.96-inch IPS TFT LCD module. This module, manufactured by SWICN, features an 80x160 RGB pixel resolution on a black background, offering an attractive visual experience. With a typical brightness of
400cd/m2, it ensures clear visibility even in various lighting conditions. Powered by the ST7735S driver IC and supporting the 4-wire SPI interface, this module delivers reliable performance.
What sets the LH096NT-IG11G apart is its compatibility with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This wide compatibility makes it suitable for a broad range of applications, including embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, banking devices, cryptocurrency hardware wallets, and handheld devices.
To simplify the integration process, the module's Flexible Printed Circuit (FPC) is designed for direct soldering onto your PCB. This eliminates the need for a separate connector, ensuring a secure and hassle-free connection.
Shineworld Innovations Limited, the manufacturer of the LH096NT-IG11G, offers customization options to meet specific requirements. They provide tailored solutions such as customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility allows customers to receive an optimized display solution that perfectly suits their unique needs and preferences. Additionally, SWI can provide customized demo kits upon customer request.
What sets the LH096NT-IG11G apart is its compatibility with various MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This wide compatibility makes it suitable for a broad range of applications, including embedded systems, industrial devices, wearables, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, banking devices, cryptocurrency hardware wallets, and handheld devices.
To simplify the integration process, the module's Flexible Printed Circuit (FPC) is designed for direct soldering onto your PCB. This eliminates the need for a separate connector, ensuring a secure and hassle-free connection.
Shineworld Innovations Limited, the manufacturer of the LH096NT-IG11G, offers customization options to meet specific requirements. They provide tailored solutions such as customized FPC, integrated cover lenses, touch screens, or driver boards. This flexibility allows customers to receive an optimized display solution that perfectly suits their unique needs and preferences. Additionally, SWI can provide customized demo kits upon customer request.
General Data
|
NO.
|
ITEM
|
|
SPECIFICATIONS
|
UNIT
|
|
|
1
|
Display Mode
|
|
IPS TFT
|
|
|
|
2
|
Diagonal Size
|
|
0.96
|
Inch
|
|
|
3
|
Resolution
|
|
80(RGB)x 160
|
Dots
|
|
|
4
|
Active Area
|
|
10.8(W) x 21.7(H)
|
mm
|
|
|
5
|
Outline Dimension
|
|
13.5(W) x 27.95(H)
|
mm
|
|
|
6
|
Thickness
|
|
1.5±0.2
|
mm
|
|
|
7
|
Pixel Pitch
|
|
0.135(W) x 0.135(H)
|
mm
|
|
|
8
|
Pixel Size
|
|
0.135(W) x 0.135(H)
|
mm
|
|
|
9
|
Display Driver IC
|
|
ST7735S
|
-
|
|
|
10
|
Touch Driver IC
|
|
No Touch
|
-
|
|
|
11
|
Display Color
|
|
262K
|
-
|
|
|
12
|
Gray Scale
|
|
8
|
Bit
|
|
|
13
|
Brightness
|
|
400(min)
|
cd /m2
|
|
|
14
|
Contrast Ratio
|
|
800:1
|
-
|
|
|
15
|
Interface
|
|
4-wire SPI
|
-
|
|
|
16
|
IC Package Type
|
|
COG
|
-
|
|
|
17
|
Module Connecting Type
|
|
Soldering
|
-
|
|
|
18
|
Weight
|
|
TBD
|
g
|
|
|
19
|
Duty
|
|
1/160
|
-
|
|
|
20
|
Pins
|
|
13
|
Pins
|
|
|
21
|
Operating Temperature
|
|
-20~70
|
℃
|
|
|
22
|
Storage Temperature
|
|
-30~80
|
℃
|
|
Drawing
