Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GABLI
-
Model Number:
-

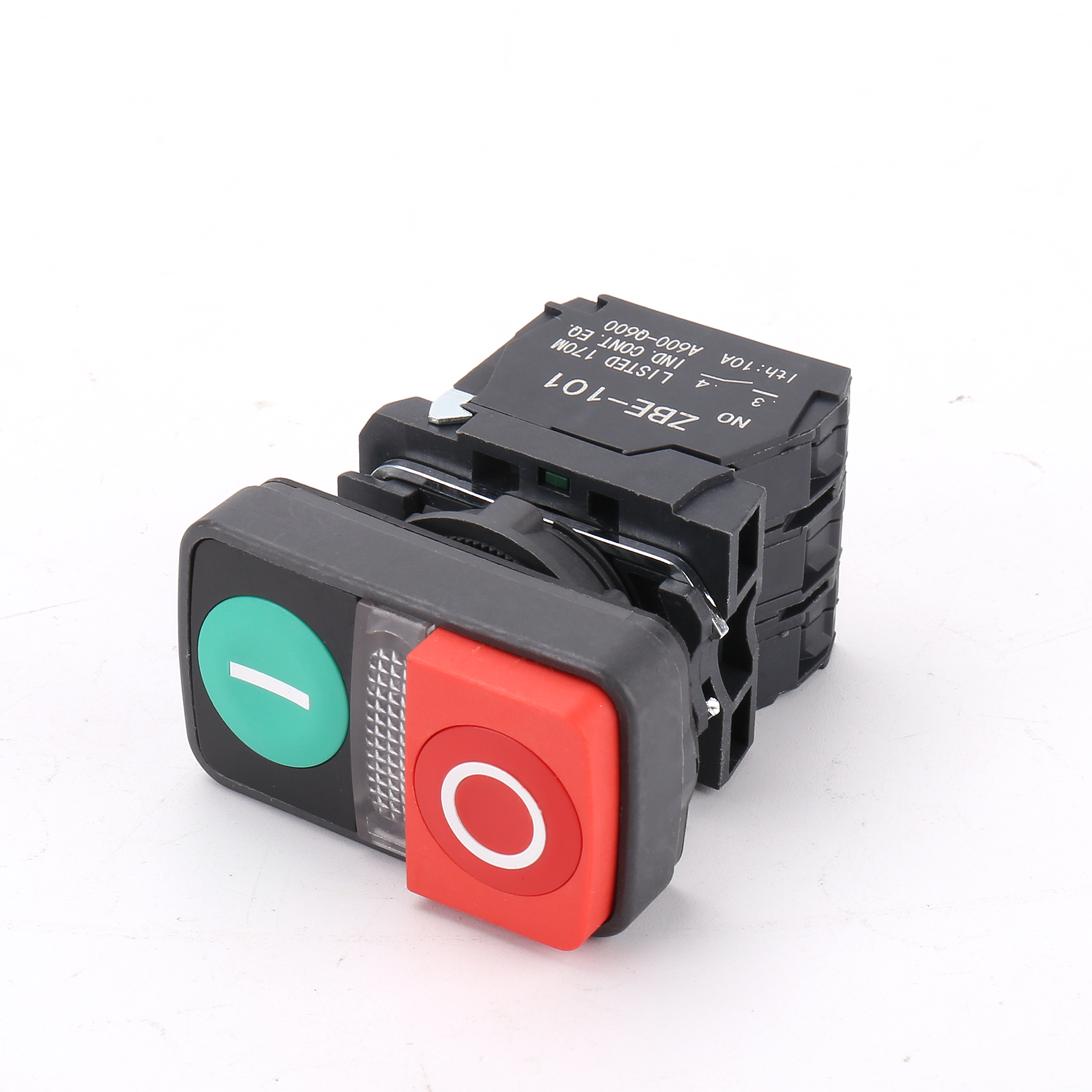

XB5-AW7425
-
IP level:
-
IP65
-
Product name:
-
Push Button Switch
-
Material:
-
Plastic+Silver Alloy
-
Operation type:
-
Momentary flat
-
Color:
-
Red+Green
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
10A
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GABLI
-
Model Number:
-
XB5-AW7425
-
IP level:
-
IP65
-
Product name:
-
Push Button Switch
-
Material:
-
Plastic+Silver Alloy
-
Operation type:
-
Momentary flat
-
Color:
-
Red+Green
XB4 series are suitable to industrial control circuit with AC 50 Hz or 60Hz,0-380V rated voltage and 0-220V DC operating voltage,used for the control of magnetic starter, contactor, relay and other electric circuit.
Structure The switch unit slow-break and self-cleaning. It uses modular combustion mode and you can combine from one to eight switch units optional, so can make the product meet requirement of many special control circuits. It can be connected more safely and installed firmly.
Structure The switch unit slow-break and self-cleaning. It uses modular combustion mode and you can combine from one to eight switch units optional, so can make the product meet requirement of many special control circuits. It can be connected more safely and installed firmly.
1) Operational Voltage: ≤660V
2)Ambient temperature: -25 °C~ +55°C
3) Operational humidity: 45% to 90%
4) Power-frequency withstand voltage: 2500V AC, 1min
5) Contact resistance: ≤50mΩ
6) Mechanical life: Monentary 1000, 000, others:10, 000
7) Electric life: Monentary 100, 000 others:50000
8) Protection grade: IP65
2)Ambient temperature: -25 °C~ +55°C
3) Operational humidity: 45% to 90%
4) Power-frequency withstand voltage: 2500V AC, 1min
5) Contact resistance: ≤50mΩ
6) Mechanical life: Monentary 1000, 000, others:10, 000
7) Electric life: Monentary 100, 000 others:50000
8) Protection grade: IP65
|
Mounting hole size:
|
|
|
|
dia 22mm
|
|||
|
Switch Rating:
|
|
|
|
10A/380V
|
|||
|
Operation Type:
|
|
|
|
Maintained or spring return
|
|||
|
Protection Degree:
|
|
|
|
IP65
|
|||
|
Switch Configuration:
|
|
|
|
NO or NC
|
|||
|
Shell Material:
|
|
|
|
metal
|
|||
|
Switch Head Shape:
|
|
|
|
Flat rectangle
|
|||
|
color：
|
|
|
|
Green+Red
|
|||
|
Common description for waterproof push button switch
|
|
|
|
Momentary
|
When you push switch and then move your finger, the actuator will back to the original position.
|
|
|
Latching
|
When you press the button, it keeps pressed until you press again
|
|
|
N.O.
|
Normally Open circuit
|
|
|
N.C.
|
Normally Closed circuit
|
|
|
SPST
|
Single Pole Single Throw
|
|
|
DPDT
|
Double Pole Double Throw
|
|
