Quick Details
-
Brand Name:
-
Edinh
-
Material:
-
chrome steel, Bearing Steel
-
Performance:
-
High Running Performance
-
Type:
-
linear guide rail with ball screw
-
Structure:
-
Holder
Quick Details
-
Core Components:
-
screw
-
Model Number:
-
As your request
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Edinh
-
Material:
-
chrome steel, Bearing Steel
-
Performance:
-
High Running Performance
-
Type:
-
linear guide rail with ball screw
-
Structure:
-
Holder

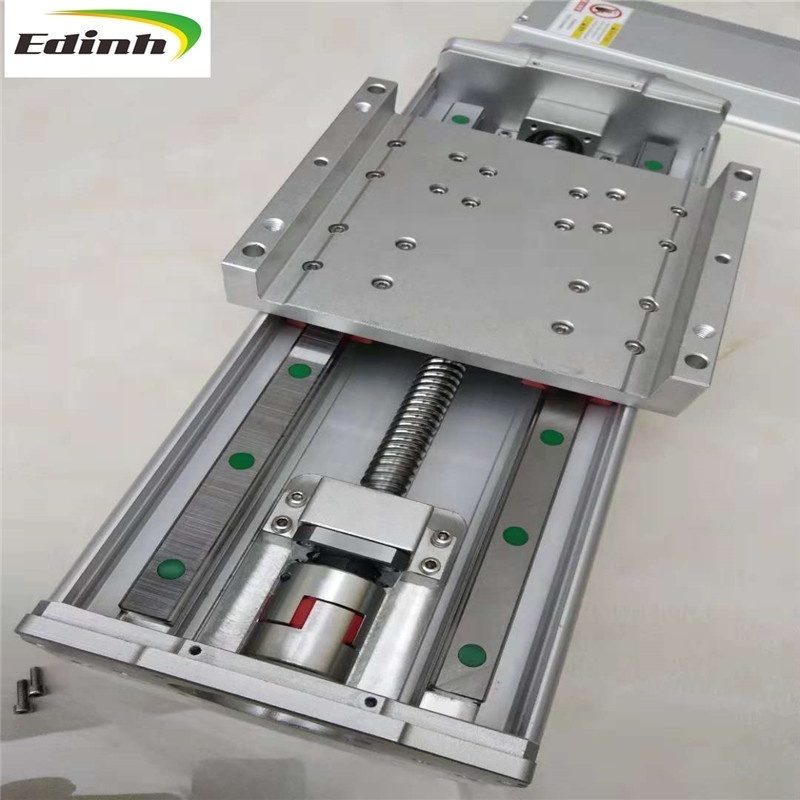

CNC Parts for DIY CNC Router DIY CNC Kit Linear Stage
Product Description
Linear Modules:
Linear modules can be installed according to every customer requirements.Its main motion way is to control the motor which connected with couplings and ball screw to move by CNC system . So it can move the sliding motion table straightly that’s to say move from front to back. It’s Positioning accuracy error range can be≤0.02mm,if re-positioned,the accuracy(error range) can be ≤0.01mm. Under different environments and technical requirements,several linear modules can be composed and jointed to be 1 set robot arm to meet client’s demand.For example:Glue Dispensing machine,industry, food machinery,ceramic machinery, welding machinery, spraying equipment, lifting platform, the dynamic seats,press machine,etc.With the development of intelligent manufacturing technology,linear modules will be widely used in various areas.
Linear modules can be installed according to every customer requirements.Its main motion way is to control the motor which connected with couplings and ball screw to move by CNC system . So it can move the sliding motion table straightly that’s to say move from front to back. It’s Positioning accuracy error range can be≤0.02mm,if re-positioned,the accuracy(error range) can be ≤0.01mm. Under different environments and technical requirements,several linear modules can be composed and jointed to be 1 set robot arm to meet client’s demand.For example:Glue Dispensing machine,industry, food machinery,ceramic machinery, welding machinery, spraying equipment, lifting platform, the dynamic seats,press machine,etc.With the development of intelligent manufacturing technology,linear modules will be widely used in various areas.
Specification:
For example: YD75-05-C-P-FO
YD: Brand, YI DING
75: Size-Linear Modules width: 60 75 86 95 116 120 150 175
05: Ball screw lead (thread pitch): 04 05 10 16 20 25(It is selective)
C: Precision Rating C-common rating H-high precision rating
P: Clearance: According to customer requirement
FO: Motor Operation way FN:Motor built-in, FW:Motor built-out
For example: YD75-05-C-P-FO
YD: Brand, YI DING
75: Size-Linear Modules width: 60 75 86 95 116 120 150 175
05: Ball screw lead (thread pitch): 04 05 10 16 20 25(It is selective)
C: Precision Rating C-common rating H-high precision rating
P: Clearance: According to customer requirement
FO: Motor Operation way FN:Motor built-in, FW:Motor built-out
|
Single Linear Guide Rail Series
|
|
|
|
|
|
|
|
|
||||||||
|
Size
|
Ball Screw
|
Max Carrying Weight (KG)
|
|
Rated Thrust
(N) |
Motor (Optional)
|
|
Working Clearance(mm)
|
|
||||||||
|
|
|
Horizontal
|
Vertical
|
|
Built-In
|
Built-Out
|
<300mm
|
>300mm
|
||||||||
|
YD60C
|
Bll screw diameter:12
Screw lead:04 |
280
|
20
|
280
|
/
|
60 Stepper Motor and Servo Motor
|
<300mm
|
>300mm
|
||||||||
|
YD75C
|
Bll screw diameter:16;
Screw lead:04 05 10 16 |
40
|
20
|
280
|
42,60 Stepper Motor
|
42,57 Stepper Motor;
60 Servo Motor |
<300mm
|
>300mm
|
||||||||
|
YD86C
|
|
40
|
20
|
280
|
42,60 Stepper Motor
|
42,57 Stepper Motor;
60 Servo Motor |
<300mm
|
>300mm
|
||||||||
|
YD95C
|
|
40
|
20
|
280
|
42,60 Stepper Motor
|
42,57Stepper Motor;
60 Servo Motor |
<300mm
|
>300mm
|
||||||||
|
Double Linear Guide Rail Series
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Size
|
Ball Screw
|
Max Carrying Weight (KG)
|
|
Rated Thrust
(N) |
Motor(Optional)
|
|
Working Clearance (mm)
|
|
|
|||||||||
|
|
|
horizontal
|
vertical
|
|
Built-In
|
Built-Out
|
<500mm
|
500-1000mm
|
1000-1500mm
|
|||||||||
|
YD116C
|
Ball screw diameter:16
Screw lead:04 05 10 16 |
80
|
60
|
330
|
42 57 Stepper Motor
|
42 57 Stepper Motor
60 Servo Motor |
<500mm
|
500-1000mm
|
1000-1500mm
|
|||||||||
|
YD120C
|
Ball screw diameter:16
Screw lead:04 05 10 16 |
80
|
60
|
330
|
42 57 Stepper Motor
|
42 57 Stepper Motor
60 Servo Motor |
<500mm
|
500-1000mm
|
1000-1500mm
|
|||||||||
|
YD150C
|
Ball screw diameter:16 20 25
Screw lead:04 05 10 16 20 25 |
80
|
60
|
340
|
42 57 Stepper Motor
|
42 57 86 Stepper Motor
60 80 Servo Motor |
<500mm
|
500-1000mm
|
1000-1500mm
|
|||||||||
|
YD175C
|
|
120
|
80
|
520
|
42 57 Stepper Motor
|
Stepper Motor Series
Servo Motor Series |
<500mm
|
500-10
|
|
|||||||||
Our Services
|
Samples
|
OK
|
|
OEM
|
OK
|
Packing & Shipping
|
package
|
1)Neutral package + carton package 2)Carton package + pallet 3)Wood package + pallet
|
|
Delivery Time
|
1-3 days after order
|
|
Shipping
|
by air to door address / by sea to sea port
|
