Quick Details
-
Voltage:
-
380
-
Weight (KG):
-
800
-
Power (kW):
-
11KW
-
Machine name:
-
Camless CNC Spring Rotating Forming Machine
-
SIZE:
-
380X200X165 cm
-
WEIGHT:
-
2000KG
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
MYT
-
Marketing Type:
-
Hot Product 2022
-
Voltage:
-
380
-
Weight (KG):
-
800
-
Power (kW):
-
11KW
-
Machine name:
-
Camless CNC Spring Rotating Forming Machine
-
SIZE:
-
380X200X165 cm
-
WEIGHT:
-
2000KG
-
Certification:
-
ce
Product Overview

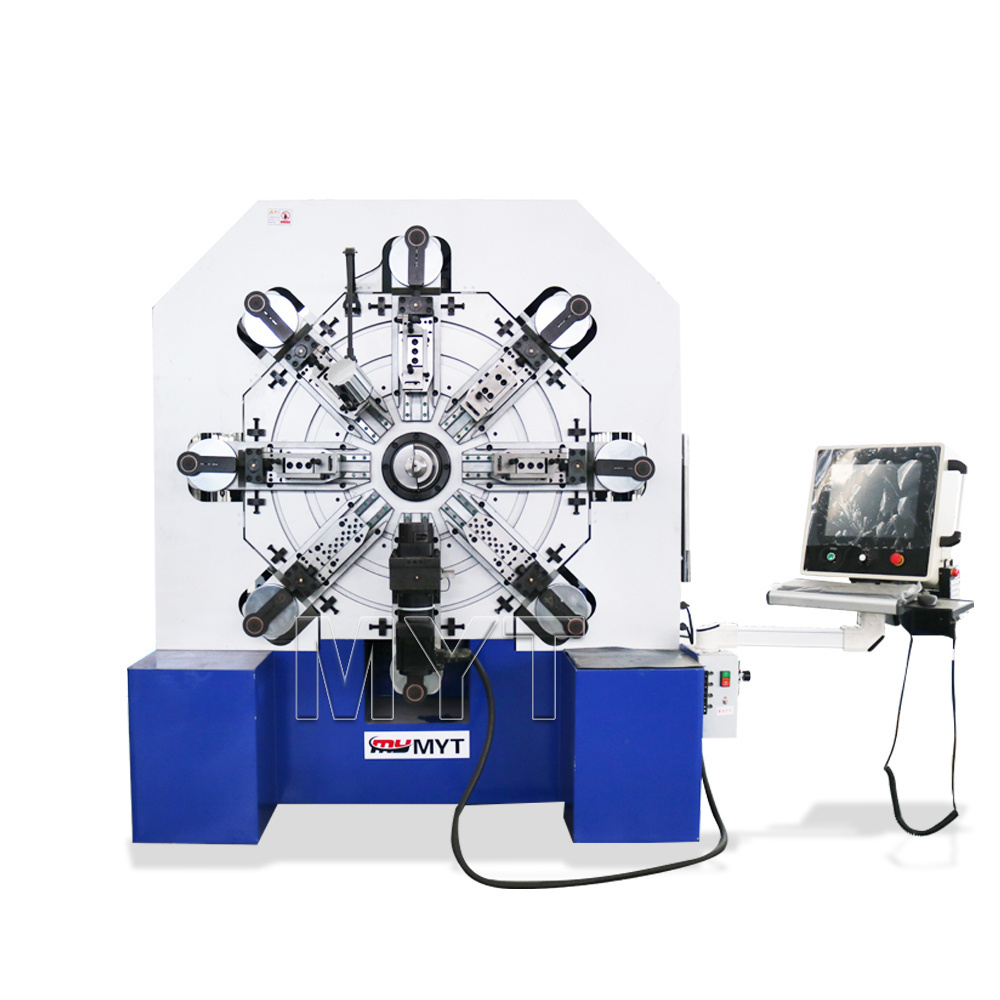

AUTOMATIC CNC Camless spring machine
Details Product details
Side of CNC Camless spring machine
Back side of
Camless spring machine
Spring machine 8 arms
Strighten part
Extra spinner customized
Cutter arm
Auto feeding rollers
Japan Sanyo servo system
CNC system
Hand wheel to control system
Electric decoiler
Many sets of CNC spring machine
Machine specifications
|
Model
|
|
CNC-1245
|
|
|
Color
|
|
Grey/Blue
(customized) |
|
|
Diameter of the steel wire(mm)
|
|
Φ1.5~Φ4.5
|
|
|
Total power (kw)
|
|
25.8
|
|
|
Number of axes
|
|
12 axis
|
|
|
Number of the wire feed wheel
|
|
3 pairs
|
|
|
Servo motor
|
Wire feeding
|
5.5KW
|
|
|
|
Rotary wire
|
5.5KW
|
|
|
|
Rotary mandrel
|
1.2KW
|
|
|
|
Curved shaft
|
1.5KW
|
|
|
|
Knife rest of slide
|
1.5KW*8
|
|
|
Main Machine(L*W*H)(mm)
|
|
2200*1760*2100
|
|
|
Net Weight of Machine (kg)
|
|
3500
|
|
