Quick Details
-
Brand Name:
-
Totolink
-
Model Number:
-
S808G
-
Place of Origin:
-
China
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
12G
-
Brand Name:
-
Totolink
-
Model Number:
-
S808G
-
Place of Origin:
-
China

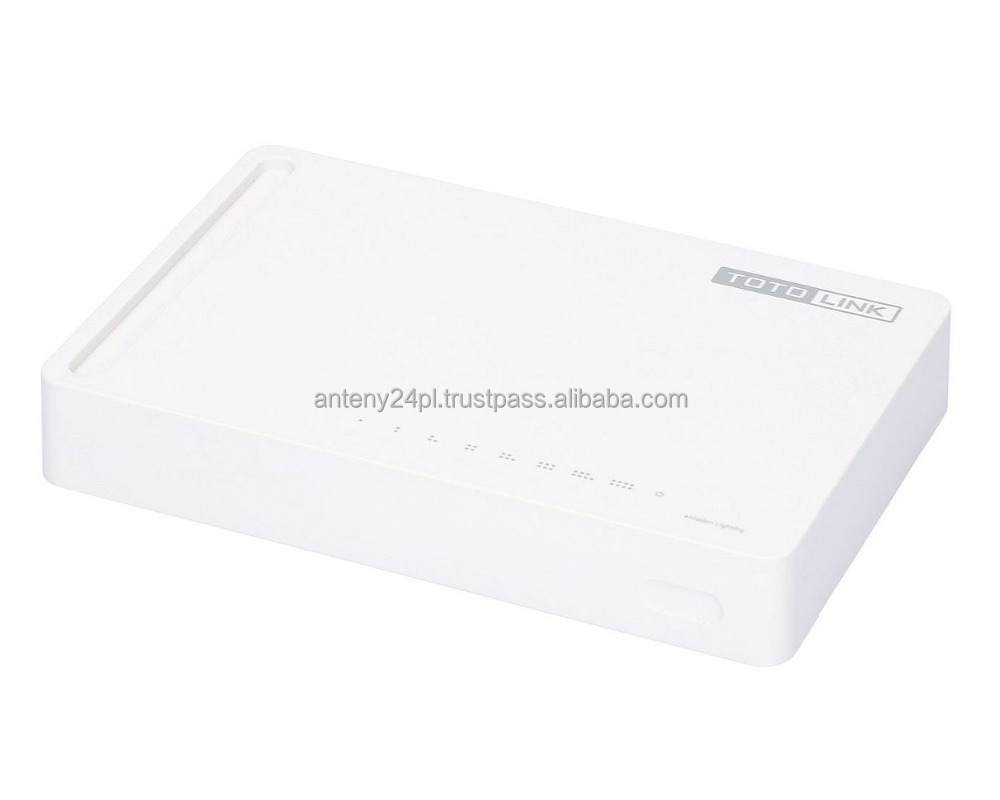

S808G
Gigabit Ethernet Switch 10/100/1000Mbps
S808G is a 8-port unmanaged desktop switch. It is a smart high performance gigabit switch that provides an ideal solution for workgroup or department Gigabit applications. With 8port 10/100/1000BASE-T (AUTO-MDIX) Gigabit Ethernet ports, this switch can provide full bandwidth up to 2000Mlops in full duplex mode. Also it supports easy-to-view LED indicators for cable installation and normal operational diagnostics.
Features:
- Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, lEEE 802.3x standards.
- 8port 10/100/1000Mbps auto-negotiation ports.
- Supports flow control for each port.
- Supports store and forward switching scheme capability.
- Supports NWay auto-negotiation for all ports.
- Supports auto MDI/MDlX for each port.
- Supports per-port bandwidth control.
- Supports PHY register read/write access.
Specifications:
|
General |
|
|
Interface |
8*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX) |
|
Power Supply |
9V DC/0.8A |
|
Dimensions |
163mm x 106mm x 25mm(L x W x H) |
|
LED |
Power, Link/Activity |
|
MAC Address Learning |
Auto-learning, auto update |
|
MAC Address Table |
8K |
|
Network Media |
-10Base-T: UTP Cat 3, 4, 5 cable (100m, max.) - EIA/TIA- 568 100 Ohm STP (100m max.) -100Base-Tx: UTP Cat 5, 5e cable (100m, max.) -EIA/TIA-568 100 Ohm STP (100m max.) -1000Base-T: UTP Cat 5, 5e cable (100m,max.) |
|
Frame Filtering |
-10Mbps: 14,880pps -100Mbps:148,800pps -1000Mbps:1,488,000pps |
|
Backup Bandwidth |
-16Gbps |
|
Transmission Method |
Store-and-forward |
|
Environment |
- Operating Temperature: 0°C ~40°C (32°F~104°F) - Storage Temperature: -40°C~70°C (-40°F~158° F) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~95% non-condensing |
