Quick Details
-
Color:
-
R/G/B/Y/W
-
Panel Size:
-
LED Dot-matrix, LED Dot-matrix
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-

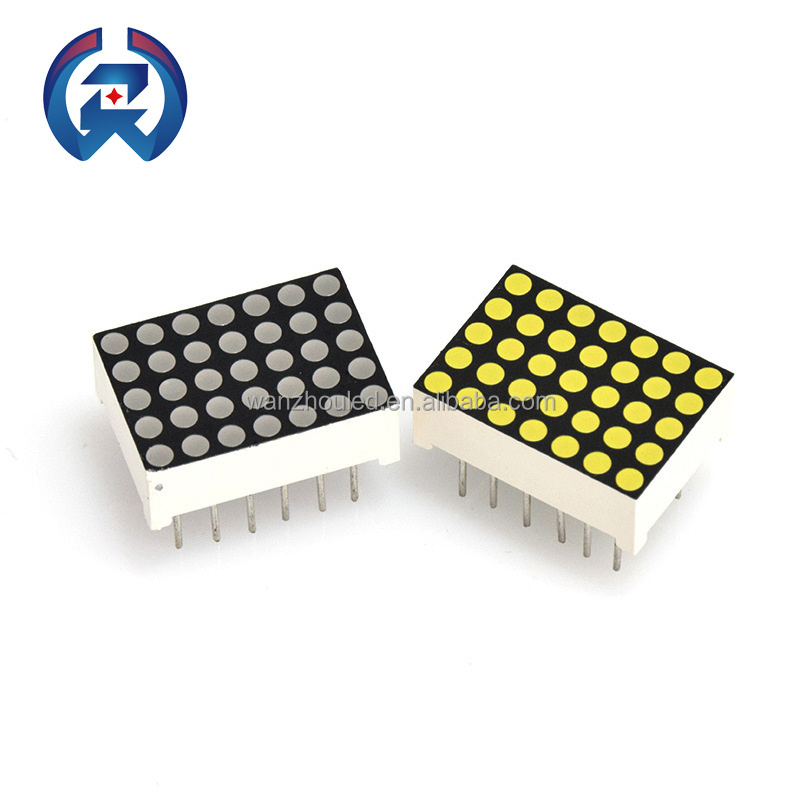

5 x 7 Dot Matrix, WZ12057
-
Specification:
-
8x8, 5x7, 5x8, 16x16
-
Resolution:
-
8*8
-
Usage:
-
Indoor
-
Emitting Color:
-
Red/Green/Bule/White/Yellow/Orange/Purple/Amber
-
Digit Number:
-
Single Digit
-
Lens Color:
-
Black Face/ White Segment
-
Wavelength:
-
450-480 nm
-
VF:
-
1.8-2.2 V/3.0-3.6V
-
Polarity:
-
Common Anode/Common Cathode
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
wanzhou, wanzhou
-
Color:
-
R/G/B/Y/W
-
Panel Size:
-
LED Dot-matrix, LED Dot-matrix
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
5 x 7 Dot Matrix, WZ12057
-
Specification:
-
8x8, 5x7, 5x8, 16x16
-
Resolution:
-
8*8
-
Usage:
-
Indoor
-
Emitting Color:
-
Red/Green/Bule/White/Yellow/Orange/Purple/Amber
-
Digit Number:
-
Single Digit
-
Lens Color:
-
Black Face/ White Segment
-
Wavelength:
-
450-480 nm
-
VF:
-
1.8-2.2 V/3.0-3.6V
-
Polarity:
-
Common Anode/Common Cathode
Products Description
Color:
|
Led color
|
Blue
|
Green
|
Yellow-Green
|
Yellow
|
Amber
|
Orange
|
Red
|
White
|
|
Wave length(nm)
|
465-475
|
515-525
|
565-575
|
585-595
|
600-610
|
620-630
|
635-650
|
/
|
|
Led chip
|
GaN
|
GaP
|
GaP
|
GaAsP
|
GaAsP
|
GaAsP
|
AlInGaP
|
GaN+Phosphor
|
Absolute Max Rating (25℃, take yellow-green led as sample):
|
Symbol
|
Parameter
|
Value
|
Unit
|
|
PAD
|
Power Dissipation per segment
|
60
|
mW
|
|
VR
|
Reverse Volrage per segment
|
5
|
V
|
|
IAF
|
Continuous Forward Current per segment
|
25
|
mA
|
|
IPF
|
Peak Forward Vurrent per segment (Duty-0.1, 1KHz)
|
80
|
mA
|
|
/
|
Derating Linear from 25℃ per segment
|
0.33
|
mA/℃
|
|
Topr
|
Operating Temperature Range
|
-35~+85
|
℃
|
|
Tstg
|
Storage Temperature Range
|
-35~+85
|
℃
|
