Quick Details
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Remax
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1465*1070*1490mm
-
Weight (KG):
-
300
-
Product name:
-
3040 desktop 5 axis cnc carving marble granite stone machine
-
Working area:
-
300*400*150mm
-
Control system:
-
March 3,5 axis NC studio
-
spindle:
-
2.2kw water cooling spindle
-
Transmission:
-
Ball screw
-
Machine Structure::
-
cast iron
-
Rails:
-
Hiwin or PMI square rails
-
Drive motor:
-
stepper motor
-
Weight:
-
330kg
-
Power(W):
-
1500W
Quick Details
-
Working Table Size(mm):
-
300×400
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Y Axis)(mm):
-
400 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Remax
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1465*1070*1490mm
-
Weight (KG):
-
300
-
Product name:
-
3040 desktop 5 axis cnc carving marble granite stone machine
-
Working area:
-
300*400*150mm
-
Control system:
-
March 3,5 axis NC studio
-
spindle:
-
2.2kw water cooling spindle
-
Transmission:
-
Ball screw
-
Machine Structure::
-
cast iron
-
Rails:
-
Hiwin or PMI square rails
-
Drive motor:
-
stepper motor
-
Weight:
-
330kg
-
Power(W):
-
1500W

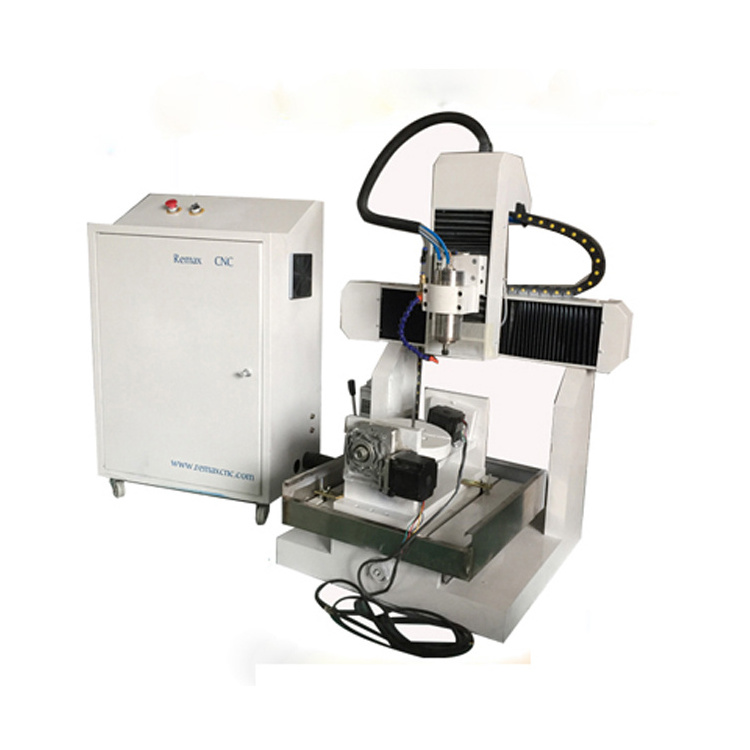

Remax 3040 desktop 5 axis cnc carving marble granite stone machine for jade
1.Remax-3040 5 axis cnc router can work at same time for 5 axis. it use March 3 control system,
can save the cost greatly.
2.for the rotary axis configurate with reducer, so it can stop at any angel.
3.the whole machine is cast iron, so it can process metal kind of materials.
4.Table moving and ball screw transmission can prove the work precision highly.
5.Remax-3040 5 axis cnc router is used for engraving and cutting wood, plastic, acrycli, aluminum, brass, MDF, PVC, plywood, double color board, PCB and other materials. It can both process plate and round subjects mini 5 axis cnc router
Parameter
|
Description |
mini 5axis cnc router |
|
X,Y,Z Working Area |
300*400*200mm |
|
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
X,Y,Z Repositioning Accuracy |
±0.03mm |
|
Table Surface |
aluminum Table |
|
Frame |
cast iron Structure |
|
X, Y Structure |
Hiwin Rail Linear Guide |
|
Z Structure |
TBI Ball Screw |
|
Max. Power Consumption |
(Without Spindle) 3.0kw |
|
Max. Rapid Travel Rate |
25000mm/min |
|
Max. Working Speed |
18000mm/min |
|
Spindle Power |
2.2 kw water cooling spinle |
|
Spindle Speed |
0-24000RPM |
|
Drive Motors |
Stepper Motor |
|
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
|
Command Language |
G Code |
|
Operating System |
March3 |
|
Computer Interface |
USB |
|
Flash Memory |
128M (U Disk) |
|
X,Y Resolution |
<0.01mm |
| Software Compatibility | Type3 |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Inverter | Delta/Fuling |
| Electrical components | Schneider |
| Limit switch | OMRON |
| Driver | Leadshine or Yako |
