Quick Details
-
Model Number:
-
HBTS
-
Power:
-
118/195 KW
-
Weight:
-
7100/7200 KG
-
Dimension(L*W*H):
-
677*2060*2500
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Building construction equipment diesel power mini concrete mixer pump
-
Application:
-
Concrete Placing
-
Keyword:
-
Cement Mixer Pump
-
Brand:
-
Fangyuan Group
-
Theoretical conveying volume:
-
80/95 m3/h
-
Max. conveying pressure:
-
13 MPa
-
Distribution valve type:
-
S pipe valve
-
Rated power:
-
118/195 KW
-
Dimension L*W*H:
-
6770*2060*2500 MM
-
Payment terms:
-
T/T
-
Certification:
-
ISO9001
Quick Details
-
Power Type:
-
Diesel
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Fangyuan Group
-
Model Number:
-
HBTS
-
Power:
-
118/195 KW
-
Weight:
-
7100/7200 KG
-
Dimension(L*W*H):
-
677*2060*2500
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Building construction equipment diesel power mini concrete mixer pump
-
Application:
-
Concrete Placing
-
Keyword:
-
Cement Mixer Pump
-
Brand:
-
Fangyuan Group
-
Theoretical conveying volume:
-
80/95 m3/h
-
Max. conveying pressure:
-
13 MPa
-
Distribution valve type:
-
S pipe valve
-
Rated power:
-
118/195 KW
-
Dimension L*W*H:
-
6770*2060*2500 MM
-
Payment terms:
-
T/T
-
Certification:
-
ISO9001

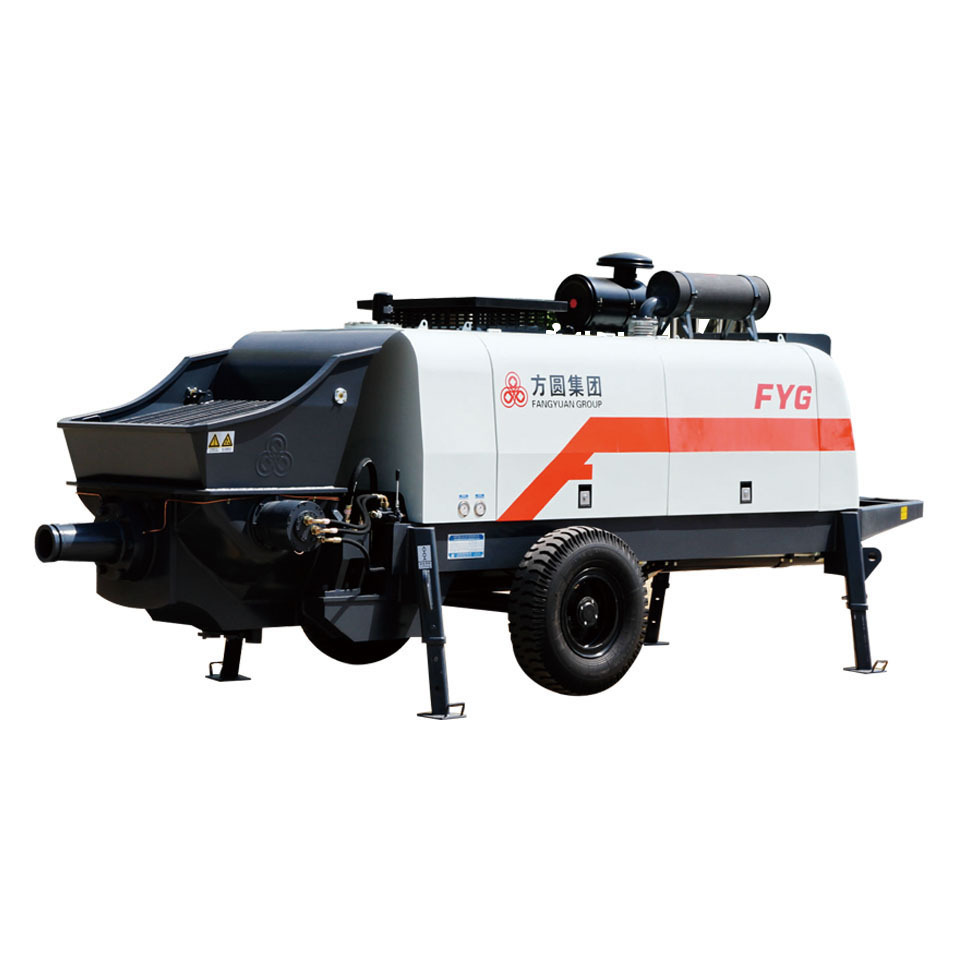

Building construction equipment diesel power mini concrete mixer pump
|
Model |
HBTS60-13-118 |
HBTS80-16-195 |
||
|
Theoretical conveying volume |
m 3 /h |
80 | 95 | |
|
Max. conveying pressure |
MPa |
13 | 16 | |
|
Pumpable concrete specification |
Slump |
cm |
8-23 |
8-23 |
|
Aggregate size |
mm |
≤40 |
≤40 |
|
|
Hopper |
Volume |
L |
500 |
500 |
|
Feeding height |
mm |
1375 |
1375 |
|
|
Distribution valve type |
S pipe valve |
S pipe valve |
||
|
Tank volume |
L |
500 |
500 |
|
|
Diesel |
Model number |
Y280M-4 |
||
|
Rated power |
kW |
118 |
195 | |
|
Internal diameter of conveying pipe |
mm |
φ125 |
φ125 |
|
|
Pipe cleaning method |
Compressed air or high pressure water wash |
|||
|
Dimension L×W×H
|
mm |
6770×2060×2500 |
6770×2060×2500 |
|
|
Overall weight |
kg | 7100 | 7200 | |
