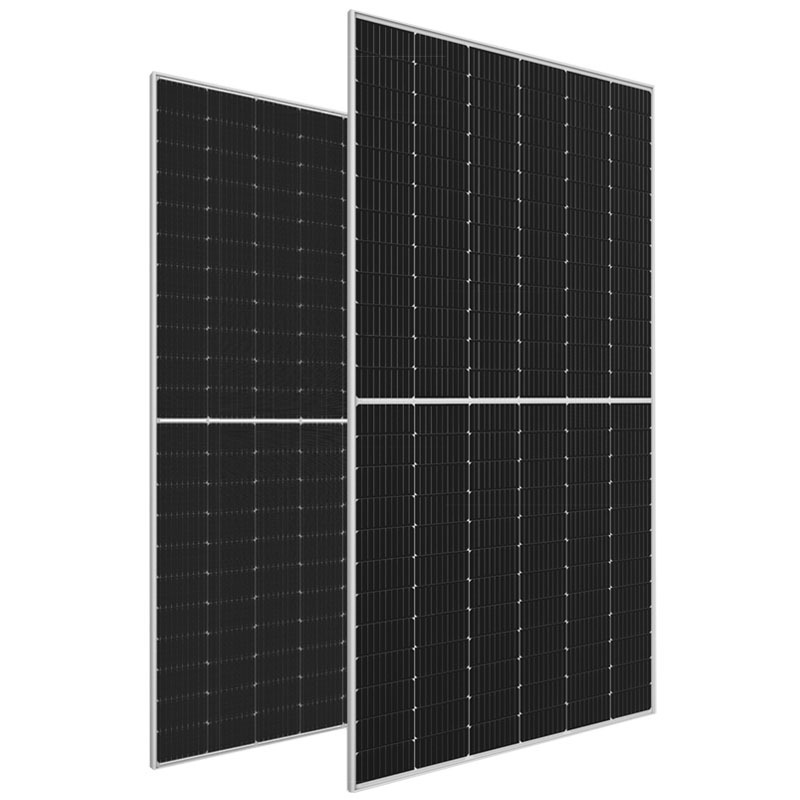

Quick Details
-
Warranty:
-
10YEARS
-
Brand Name:
-
JXSOL
-
Model Number:
-
JX550M
-
Place of Origin:
-
Hebei, China
-
Panel Dimensions:
-
2279*1134*35mm
-
Front Glass:
-
3.2mm Tempered Glass
-
EVA:
-
High Viscosity EVA
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
MC 4 Compatible Connector
-
Junction Box:
-
IP68 Rated
-
Application:
-
Solar Power System
-
OEM Order:
-
Acceptable
-
Cable:
-
4.0mm2
-
Certificate:
-
TUV IEC
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
20.9%
-
Warranty:
-
10YEARS
-
Brand Name:
-
JXSOL
-
Model Number:
-
JX550M
-
Place of Origin:
-
Hebei, China
-
Panel Dimensions:
-
2279*1134*35mm
-
Front Glass:
-
3.2mm Tempered Glass
-
EVA:
-
High Viscosity EVA
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
MC 4 Compatible Connector
-
Junction Box:
-
IP68 Rated
-
Application:
-
Solar Power System
-
OEM Order:
-
Acceptable
-
Cable:
-
4.0mm2
-
Certificate:
-
TUV IEC
Product Description
Specification
|
DATA (STC)
|
|
|
|
|
||||
|
ELECTRICAL DATA(STC)
|
|
|
|
|
||||
|
Peak Power Watts-Pmax(Wp)
|
530
|
540
|
545
|
550
|
||||
|
Power Output Tolerance-P MAX (W)
|
0~+5W
|
|
|
|
||||
|
Maximum Power Voltage-V MPP (V)
|
40.63
|
41.01
|
41.15
|
41.28
|
||||
|
Maximum Power Current-l MPP (A)
|
13.04
|
13.17
|
13.24
|
13.32
|
||||
|
Open Circuit Voltage-V OC (V)
|
48.80
|
49.53
|
49.67
|
49.80
|
||||
|
Short Circuit Current-l SC (A)
|
13.95
|
13.85
|
13.93
|
14.01
|
||||
|
Module Efficiencyηm (%)
|
20.14
|
20.52
|
20.71
|
20.9
|
||||
|
STC:Irradiance 1000 W/m2,Cell Temperature 25℃,Air Mass AM1.5.
|
|
|
|
|
||||
Details Images
solar cells
9bb/10bb/11bb/12bb/16bb
158.75/166/182/210mm
Anti-PID
Tire 1 solar cell
Anti-PID
Tire 1 solar cell
Glass
Anti-reflective
Module efficiency increased 2%
self-clean function
self-clean function
Frame
Black/Silver Color
Thickness 30/35/40/45/50mm
Thickness 30/35/40/45/50mm
Anodized Aluminium
Stress Test
Stress Test
Junction Box
P68 Rate
Excellent heat dissation
Innovative Full-Glue-Filled
Innovative Full-Glue-Filled
