Quick Details
-
Material:
-
Steel hot galavanzing
-
Warranty:
-
1 YEAR
-
Output Power:
-
7.5kw
-
Design Style:
-
NEW
-
Product name:
-
Car Wash Machine
-
Application:
-
AUTOMOBILE BEAUTY
-
Cleaning type:
-
high pressure cleaner
-
Cleaning process:
-
cold water cleaning
-
Washable car size:
-
L5300mmxW2300mmxH2250mm
-
Assembling range:
-
L6300mmxW4000
-
Logo:
-
Customized Logo
-
MOQ:
-
1 Set
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Youda
-
Model Number:
-
DA-W200ST
-
Material:
-
Steel hot galavanzing
-
Warranty:
-
1 YEAR
-
Output Power:
-
7.5kw
-
Design Style:
-
NEW
-
Product name:
-
Car Wash Machine
-
Application:
-
AUTOMOBILE BEAUTY
-
Cleaning type:
-
high pressure cleaner
-
Cleaning process:
-
cold water cleaning
-
Washable car size:
-
L5300mmxW2300mmxH2250mm
-
Assembling range:
-
L6300mmxW4000
-
Logo:
-
Customized Logo
-
MOQ:
-
1 Set

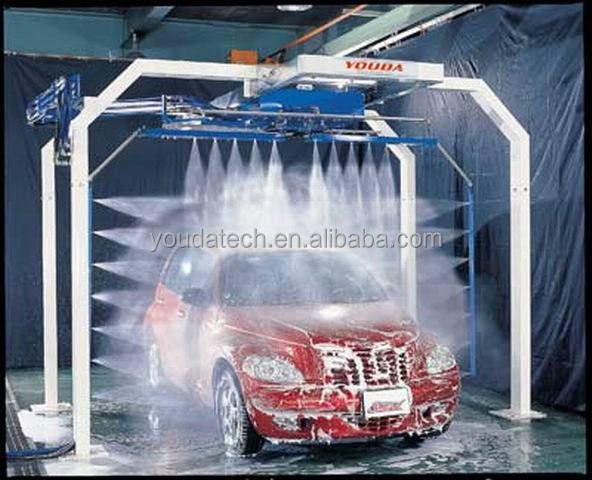

Youda touchless car wash machine
DA-W200ST touchless car wash machine is qualified to wash and spray foam, water and wax
automatically, which covers small space and operates easily; there is no need for customer to
concern the car paint destroyed by the brush since it is brushless. The dual-swing-arm spraying
system ensures the easy and complete full-scope cleaning.
Main Futures:
1. The machine is controlled by intelligent CUP.
2. Swing arm move in 360 round, can clean any where of cars.
3. Cover a small area, saving space and easy to operation.
4. Bottom wash and high pressure water gun are as optional.
Technical Data :
|
Model |
DA- W200 ST |
|
|
Parameter |
Machine Size |
L3950mm×W3800mm× H2690mm |
|
Assembling range |
L6300mm×W4500 |
|
|
Wash type |
car, jeep, coach below 10 seats |
|
|
Washable car size |
L5200mm×W2300mm×H2300mm |
|
|
Washing ways |
Water wash, shampoo wash and wax wash |
|
|
Washing time |
2 roll over 1minute 20 seconds (without hand wipe-time) |
|
|
Cost consumption |
Water consumption |
120L/set |
|
|
Power consumption |
0.15kwh/car |
|
Shampoo consumption |
7ml/car |
|
|
Wax consumption |
12ml/car |
|
|
Total electrical capacity |
7.5KW |
|
|
Install ation |
Power required |
AC380V50Hz volume 15KVA |
|
Water required |
Pipe diameter DN25 flow≥100L/min |
|
|
Air supply |
Pressure0.75~0.9Mpa/flow≥0.1m³/min |
|
|
Surface roughness |
||
High pressure water wash:
Foam:
Foam Wash:
