Quick Details
-
Brand Name:
-
SUNOND
-
Model Number:
-
4S4P 14.8V 8800mAh
-
Place of Origin:
-
GUA
-
Weight:
-
0.9KG
-
The charging ratio:
-
1C
-
The discharge rate:
-
1C
-
Product name:
-
ICR18650 4S4P 14.8V 8800mAh Lithium Ion Battery
-
Voltage:
-
14.8V
-
Capacity:
-
8800mAh/8.8Ah
-
Cycle life:
-
1000 Times
-
OEM/ODM:
-
Yes
-
Color:
-
Blue PVC
-
BMS:
-
Yes,built-in BMS
-
MOQ:
-
5pcs
-
Battery cell:
-
18650 3.7V 2200mAh
Quick Details
-
Storage Type:
-
Normal Storage
-
Anode Material:
-
NCM
-
Application:
-
Consumer Electronics, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Electric Forklifts, LED/Stage Light
-
Brand Name:
-
SUNOND
-
Model Number:
-
4S4P 14.8V 8800mAh
-
Place of Origin:
-
GUA
-
Weight:
-
0.9KG
-
The charging ratio:
-
1C
-
The discharge rate:
-
1C
-
Product name:
-
ICR18650 4S4P 14.8V 8800mAh Lithium Ion Battery
-
Voltage:
-
14.8V
-
Capacity:
-
8800mAh/8.8Ah
-
Cycle life:
-
1000 Times
-
OEM/ODM:
-
Yes
-
Color:
-
Blue PVC
-
BMS:
-
Yes,built-in BMS
-
MOQ:
-
5pcs
-
Battery cell:
-
18650 3.7V 2200mAh

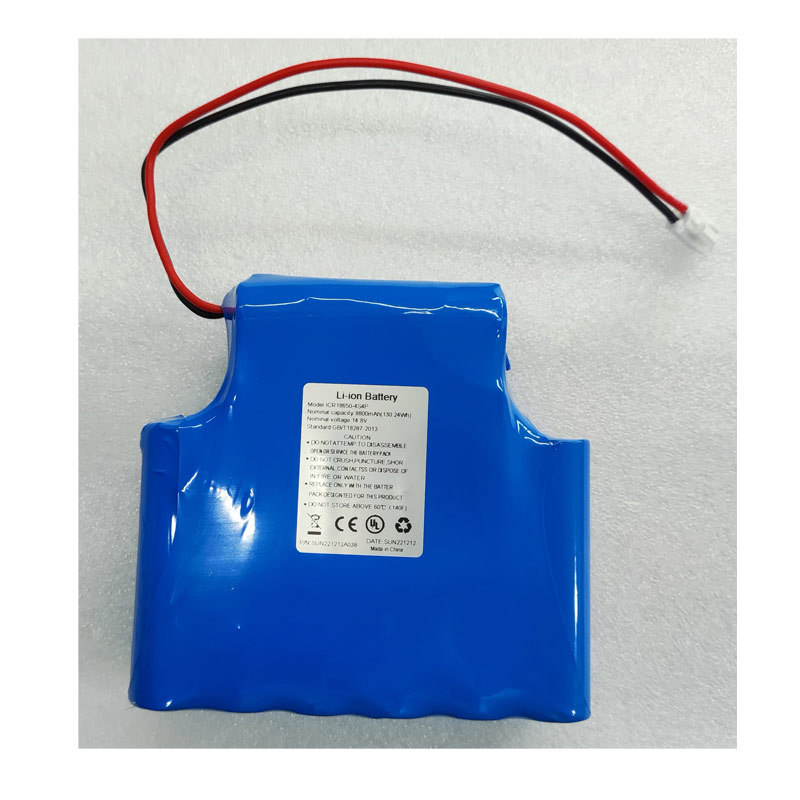

LED Stage Light Lithium Ion Battery 18650 3.7V 2200mAh 4S4P 14.8V 8800mAh Lithium Battery with BMS for Chauvet
Chinese lithium battery pack manufacturer.
ISO9001:2015 certified factory, passed UL, TUV audit.
Products Description
This battery fits perfectly with the Chauvet LED Prolights Smart Bat
4S4P 14.8V 8800mAh Lithium Ion Battery
|
Electrical Properties
|
|
|
|
Nominal Voltage
|
14.8V
|
|
|
Nominal Capacity
|
8800Ah
|
|
|
Energy
|
130.24Wh
|
|
|
Internal Resistance
|
20≤mΩ
|
|
|
Cycle Life
|
800 Times
|
|
|
Self-discharge
|
3% per month
|
|
|
|
|
|
|
Charging
|
|
|
|
Charging Voltage
|
16.8V
|
|
|
Charging Mode
|
AC-DC
|
|
|
Charging Current
|
2.2A
|
|
|
Maximum Charging
|
11A
|
|
|
|
|
|
|
Discharging
|
|
|
|
Discharging Current
|
2A
|
|
|
Maximum Continuous Discharging Current
|
11A
|
|
|
Peak Current
|
33A(ms)
|
|
|
Discharging Cut-off Voltage
|
10V
|
|
|
|
|
|
|
Environment
|
|
|
|
Charging Temperature
|
0℃ to 45℃(32℉ to 113℉)
|
|
|
Discharging Temperature
|
-20℃ to 60℃(-4℉ to 140℉)
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉)
|
|
|
Dustproof and Waterproof rating
|
|
|
|
|
|
|
|
Physical
|
|
|
|
Configuration
|
4S4P
|
|
|
Battery Cell
|
18650 3.7V 2200mAh
|
|
|
Case
|
PVC
|
|
|
Dimension
|
80*40*120mm
|
|
|
Weight
|
0.92KG
|
|
|
Terminal
|
VH3.96
|
|
|
|
|
|
|
BMS
|
|
|
|
Overcharge Protection
|
Yes
|
|
|
Overdischarge Protection
|
Yes
|
|
|
Overcurrent Protection
|
Yes
|
|
|
Short circuit Protection
|
Yes
|
|
|
Balanced cell
|
Yes
|
|
