Quick Details
-
Brand Name:
-
Yueke
-
Model Number:
-
STZSZ-1
-
Product name:
-
STZSZ-1 Soil Four-bladed Situ Vane Shear Test Apparatus
-
determine:
-
the natural shearing strength of the saturated soft clay
-
This apparatus can obtain:
-
more precise strength indication.
-
Size of the four-bladed vane:
-
dia 75mmX150mm, dia 50mmX100 mm
-
Torquemoment of the steel ring:
-
80N.m
-
Precision of the torquemoment:
-
0.55 N.m
-
Guide stem:
-
dia 30mmX1040mm
-
Size of the machine:
-
430mmX910mmX220mm (LxWxH)
-
Weight:
-
40kg
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yueke
-
Model Number:
-
STZSZ-1
-
Product name:
-
STZSZ-1 Soil Four-bladed Situ Vane Shear Test Apparatus
-
determine:
-
the natural shearing strength of the saturated soft clay
-
This apparatus can obtain:
-
more precise strength indication.
-
Size of the four-bladed vane:
-
dia 75mmX150mm, dia 50mmX100 mm
-
Torquemoment of the steel ring:
-
80N.m
-
Precision of the torquemoment:
-
0.55 N.m
-
Guide stem:
-
dia 30mmX1040mm
-
Size of the machine:
-
430mmX910mmX220mm (LxWxH)
-
Weight:
-
40kg

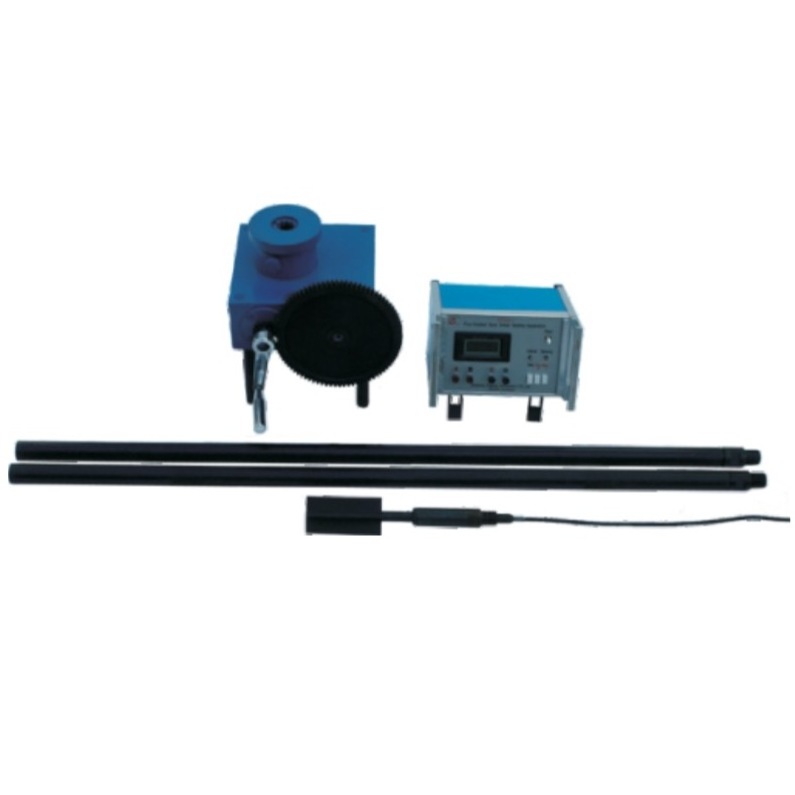

STZSZ-1 Soil Four-bladed Situ Vane Shear Test Apparatus for on site testing
Wechat/whatsapp:+ 18857877591
Application: This apparatus is used to determine the natural shearing strength of the saturated soft clay.
Strength testing results of some soft clay with high sensitivity subjects to be improper and rest on sampling.
This apparatus can obtain more precise strength indication.
It is recommended to be used together with drilling equipments as four bladed vane shear testing apparatus measures strength by drilling holes. It is able to test clay whose depth less than 30 meters.
Specification:
| Size of the four-bladed vane | dia 75mm×150mm, dia 50mm×100 mm |
| Torquemoment of the steel ring | 80N.m |
| Precision of the torquemoment | 0.55 N.m |
| Guide stem | dia 30mmx1040mm |
| Size of the machine | 430mmx910mmx220mm (LxWxH) |
| Weight | 40kg |
