Youhui Customized Flat Wire Winding Machine Whole Process Electric Motor Winding Machine Winding Coil Machine For Flat Wire
Youhui Customized Flat Wire Winding Machine Whole Process Electric Motor Winding Machine Winding Coil Machine For Flat Wire
Youhui Customized Flat Wire Winding Machine Whole Process Electric Motor Winding Machine Winding Coil Machine For Flat Wire
Youhui Customized Flat Wire Winding Machine Whole Process Electric Motor Winding Machine Winding Coil Machine For Flat Wire
Youhui Customized Flat Wire Winding Machine Whole Process Electric Motor Winding Machine Winding Coil Machine For Flat Wire
Youhui Customized Flat Wire Winding Machine Whole Process Electric Motor Winding Machine Winding Coil Machine For Flat Wire
Youhui Customized Flat Wire Winding Machine Whole Process Electric Motor Winding Machine Winding Coil Machine For Flat Wire
Youhui Customized Flat Wire Winding Machine Whole Process Electric Motor Winding Machine Winding Coil Machine For Flat Wire

Youhui Customized Flat Wire Winding Machine Whole Process Electric Motor Winding Machine Winding Coil Machine For Flat Wire

FOB Reference Price: Get Latest Price
≥1 Sets
US $42500
≥5 Sets
US $40375
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Center Height (mm):
90 mm
Max.Transformer Capacity(kVA):
500 kVA
Place of Origin:
Guangdong, China
Brand Name:
Youhui
Weight (KG):
1000
Dimension(L*W*H):
9500*900*1900
Input voltage:
Triphasic 220V
Minimum wire thickness:
<0.2mm
Machinable cross-section:
>60mm²(Standard winding)
Maximum aspect ratio:
>20Fold(The wire is wide and thick)
Rated power:
6.5KW
Maximum wire thickness:
>5mm
Use air pressure:
0.6≤P≤1.0MPa
Minimum wire width:
<1.0mm
Minimum inner diameter:
2Fold Line width,least 3mm
Maximum efficiency:
<0.1sCircle

Quick Details

Max. Load (KG):
1000 KG
Coil Type:
round
Length of Axis (mm):
120 mm
Center Height (mm):
90 mm
Max.Transformer Capacity(kVA):
500 kVA
Place of Origin:
Guangdong, China
Brand Name:
Youhui
Weight (KG):
1000
Dimension(L*W*H):
9500*900*1900
Input voltage:
Triphasic 220V
Minimum wire thickness:
<0.2mm
Machinable cross-section:
>60mm²(Standard winding)
Maximum aspect ratio:
>20Fold(The wire is wide and thick)
Rated power:
6.5KW
Maximum wire thickness:
>5mm
Use air pressure:
0.6≤P≤1.0MPa
Minimum wire width:
<1.0mm
Minimum inner diameter:
2Fold Line width,least 3mm
Maximum efficiency:
<0.1sCircle
Products Description
Product Name
Youhui Customized Flat Wire Winding Machine Whole Process Electric Motor Winding Machine Winding Coil Machine For Flat Wire
Model
YH-350S
Unfolded Working Size(Length*Width*Height)
950*90*190cm
Machinable Cross Section：
>60mm²（Standard Winding）
Machine Weight：
1500KG
Maximum Aspect Ratio：
>18Fold（The Wire Is Wide And Thick）
Input Voltage
Triphasic 380V
Minimum Wire Thickness：
<5mm
Rated Power：
12KW
Maximum Wire Thickness：
<16mm
Use Air Pressure：
0.6≤P≤1.0MPa
The Maximum Storage Line Length Of The Equipment：
<5500mm
Inner Diameter
1mm-50mm  （Inner Diameter>3 Times The Line Width）
The Coil Height Is Maximum：
80mm
Maximum Feed Speed：
The Maximum Linear Feeding Speed Is 100mm/s
Minimum Number Of Laps：
<0.25s/Circle
Maximum Number Of Laps：
Theory Is Not Limited
Maximum Efficiency：
<0.5s/Circle
Product Name Specifications
Brand
Model Specifications
Quantity
Remark
Machine body
Youhui
1 Piece
Servo motors
DORNA
2.0KW
2 Set
Cable Spool
DORNA
2.0KW
2 Set
Spool Wound
DORNA
0.4KW
1 Set
Wire Feeding
DORNA
0.4KW
1 Set
Push Angle
DORNA
0.4KW
1 Set
Grab The Material
DORNA
1.0KW
1 Set
Storage Spool
PC Controller
YouHui
10-Axis Controller
1 Piece
17 Inch Screen
Lead Screw
HIWIN/TBI
3205*477
2 Strip
Y Axis
Guide Rail
HIWIN/TBI
20-L350
1 Strip
Wire Feeding
guide rail
HIWIN/TBI
25-L5000
1 Strip
Storage Line
Solenoid valve
AIRTAC
210-08
6 Set
Peculiarity：
1. Realize the synchronous winding of the double head, which is more efficient
2. Runs efficiently, winds, stores the line quickly, and has high precision
3. Save the post-process man-hours and improving efficiency.
4. Achieve face recognition,fingerprint recognition, password recognition, MES data collection and analysis, production data report output and other effective management methods for customers to choose.
5. Realize collaborative automation with other process equipment.

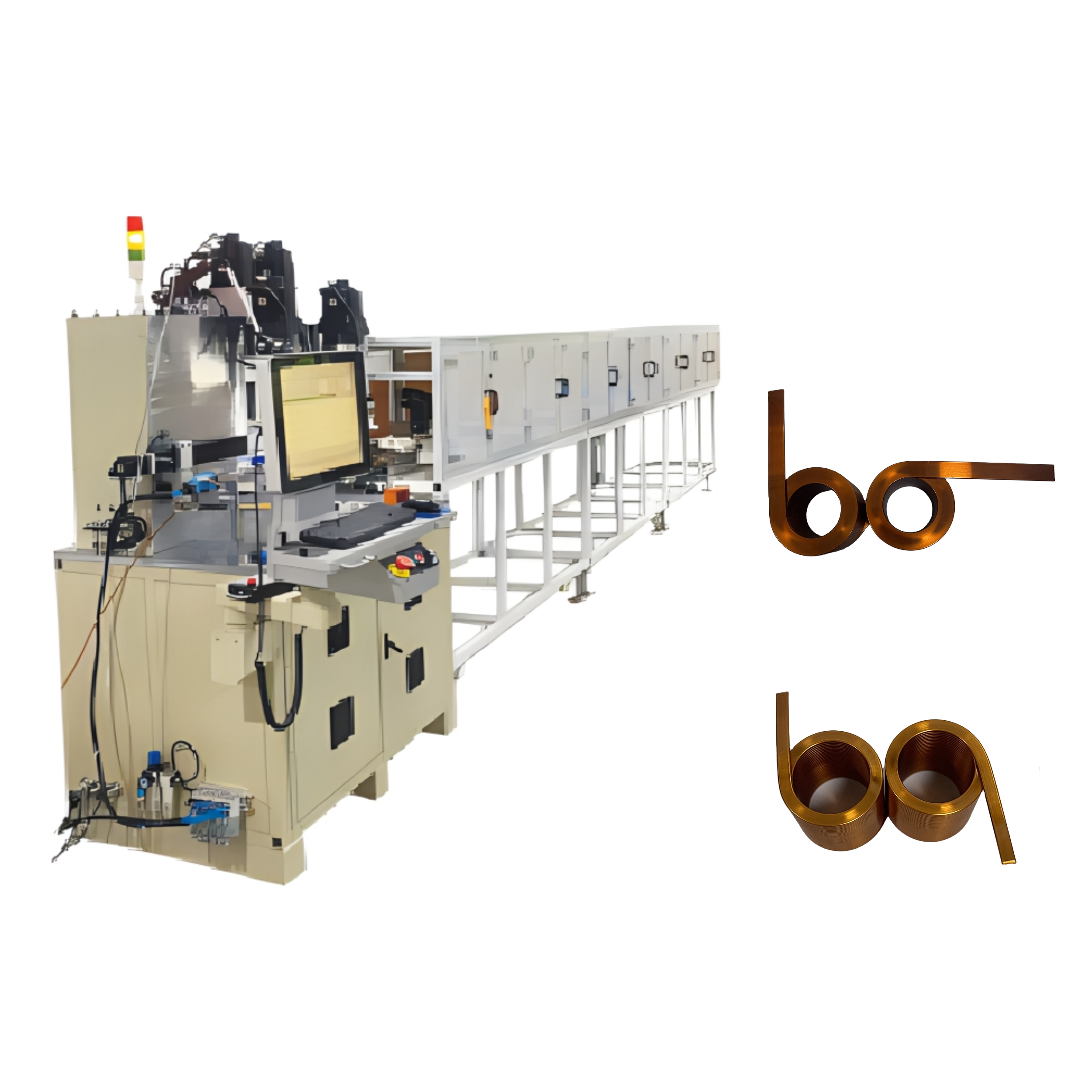

This machine can be wound the following coils, if you have coils need to customize, please feel free to contact us.
