- Product Details
- {{item.text}}
Quick Details
-
Power:
-
up to retort size
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
up to retort size
-
Sterilizing way:
-
steam,water
-
Advantage:
-
Energy Saving
-
Design pressure:
-
0.35 Mpa
-
Sterilizing Type:
-
high temperature and pressure
-
OEM service:
-
accepted
-
Application:
-
food and beverage sterilization
-
Material:
-
Stainless Steel 304/316
-
Max working temperature:
-
121 degree centigrade
-
Max working pressure:
-
0.25 Mpa
-
Control system:
-
PLC+ Touch Screen
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shenlong
-
Voltage:
-
customized
-
Power:
-
up to retort size
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
up to retort size
-
Sterilizing way:
-
steam,water
-
Advantage:
-
Energy Saving
-
Design pressure:
-
0.35 Mpa
-
Sterilizing Type:
-
high temperature and pressure
-
OEM service:
-
accepted
-
Application:
-
food and beverage sterilization
-
Material:
-
Stainless Steel 304/316
-
Max working temperature:
-
121 degree centigrade
-
Max working pressure:
-
0.25 Mpa
-
Control system:
-
PLC+ Touch Screen

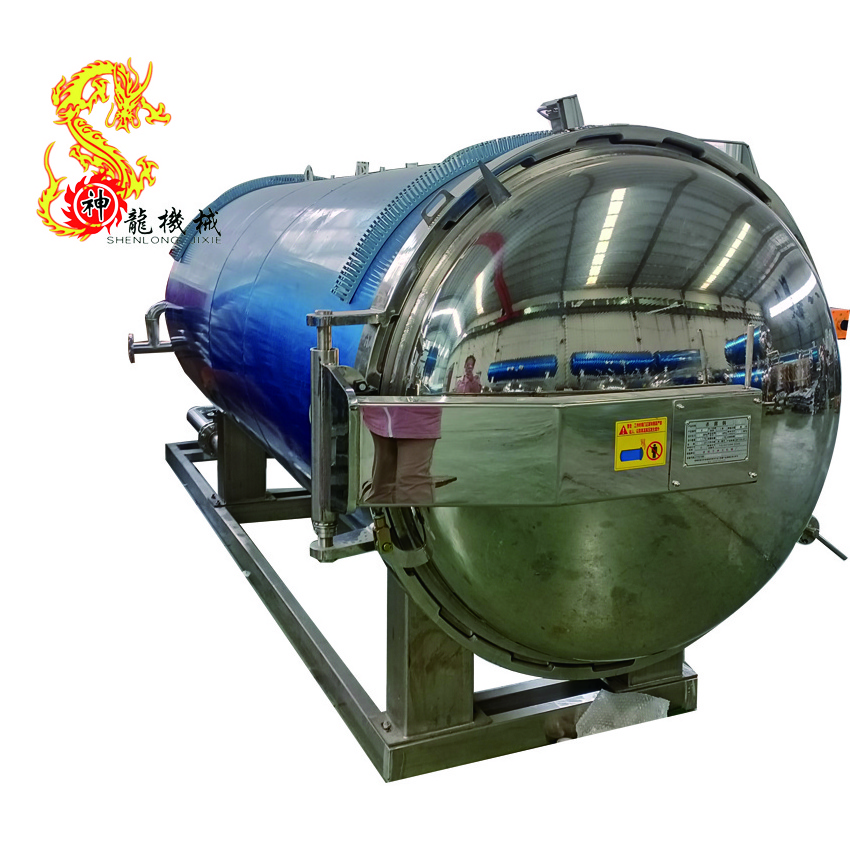

Product Display
1、Our retort/autoclave is safe:
Our retort/autoclave door is interlock to guarantee the door’s sealing.
All retort/autoclave body is detected in our detecting room to check if the welding is good。
Equipped with safety valve, when retort has problems, can manual opening the safety valve to relief pressure.
2、Our electric parts are Siemens and Schneider to guarantee our machine’s stable running.
Model:
Our retort size is customized according to customer's requrements
|
Model
|
1200*3600
|
1500*5250
|
|
Volume
|
4.5m³
|
10m³
|
|
Steel thinkness
|
5mm
|
8mm
|
|
Design temperature
|
145℃
|
145℃
|
|
Design Pressure
|
0.44Mpa
|
0.44Mpa
|
|
Test Pressure
|
0.35Mpa
|
0.35Mpa
|
|
Material
|
SUS304
|
SUS304
|
Detailed Images
Product Application
Steam Retort/Autoclave is to sterilize the canning food by saturated steam; so in order to obtain good heat distribution, before the heating, need to have the venting process. Steam retort is mainly for the canned meat, canned fish, etc.
