Quick Details
-
Range of Spindle Speed(r.p.m):
-
0 - 5200 r.p.m
-
Place of Origin:
-
Henan
-
Brand Name:
-
WKS
-
Voltage:
-
380V or customized, Country
-
Dimension(L*W*H):
-
550*400*850mm
-
Weight (KG):
-
100 KG
-
Marketing Type:
-
New Product
-
Product name:
-

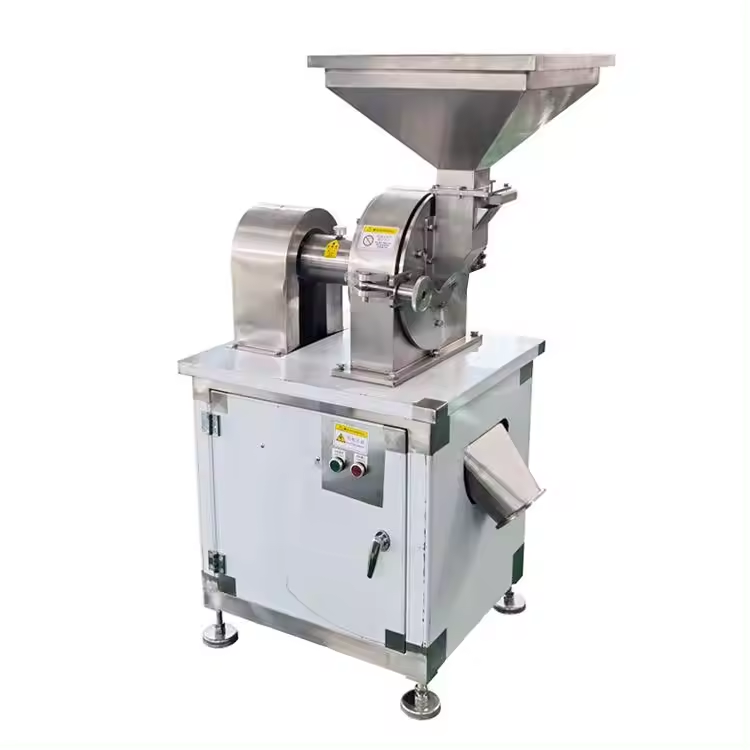

Powder Grinder Machine
-
Usage:
-
Food Used
-
After-sales Service Provided:
-
Online Support
-
Suitable for:
-
Food Chemical Powder Grinder Mill
-
MOQ:
-
1 Set
-
Raw material:
-
304 stainless steel
-
Feature:
-
Easy Operation
-
Color:
-
Silver
Quick Details
-
Output (kg/h):
-
50 - 60 kg/h
-
Output Size (mesh):
-
2 - 120 mesh
-
Power (kW):
-
3
-
Range of Spindle Speed(r.p.m):
-
0 - 5200 r.p.m
-
Place of Origin:
-
Henan
-
Brand Name:
-
WKS
-
Voltage:
-
380V or customized, Country
-
Dimension(L*W*H):
-
550*400*850mm
-
Weight (KG):
-
100 KG
-
Marketing Type:
-
New Product
-
Product name:
-
Powder Grinder Machine
-
Usage:
-
Food Used
-
After-sales Service Provided:
-
Online Support
-
Suitable for:
-
Food Chemical Powder Grinder Mill
-
MOQ:
-
1 Set
-
Raw material:
-
304 stainless steel
-
Feature:
-
Easy Operation
-
Color:
-
Silver
Products Description
working principle
The machine uses the high-speed relative motion between movable gears to crush materials through the impact between gears, friction and impact between materials. The utility model has the advantages of simple structure, firmness, stable operation and good crushing effect. The crushed material can be directly removed from the grinding chamber of the main engine, and the particle size can be obtained by changing the screen with different apertures.
●
Made of 304 stainless steel
●
Food grade design
●
Simple structure and easy to operate
●
Customized
●
Changing the fineness through the screen
●
Universal grinder single machine
Product Paramenters
|
Model
|
10B
|
|
Capacity
|
50-60(kg/h)
|
|
Shaft speed
|
5200(r/min)
|
|
Fineness size
|
2-120 (mesh）
|
|
Motor power
|
3(kW)
|
|
Weight
|
100(kg)
|
|
Dimension
|
550*400*
850
(mm)
|
Details Images
Vertical feed hopper
Inclined feed hopper
Different grinding chamber designs
Hammer
Pin
Application scope
Product packaging
