Quick Details
-
Brand Name:
-
B&TON
-
Use:
-
FTTH
-
Data Rate:
-
10/100/1000Mbps
-
Fiber Connector:
-
SC/LC
-
Ethernet Port:
-
2 RJ45
-
Fiber Port:
-
2 SC Fiber
-
Distance:
-
0~120km
-
Color:
-
Blcak
-
Brand:
-
BTON
-
Warraty:
-
3 Years
-
Product name:
-
Fiber Switch 2 Fiber with 2 RJ45 Switch
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
BT-952GE-2G
-
Place of Origin:
-
Guangdong, China, China
-
Brand Name:
-
B&TON
-
Use:
-
FTTH
-
Data Rate:
-
10/100/1000Mbps
-
Fiber Connector:
-
SC/LC
-
Ethernet Port:
-
2 RJ45
-
Fiber Port:
-
2 SC Fiber
-
Distance:
-
0~120km
-
Color:
-
Blcak
-
Brand:
-
BTON
-
Warraty:
-
3 Years
-
Product name:
-
Fiber Switch 2 Fiber with 2 RJ45 Switch

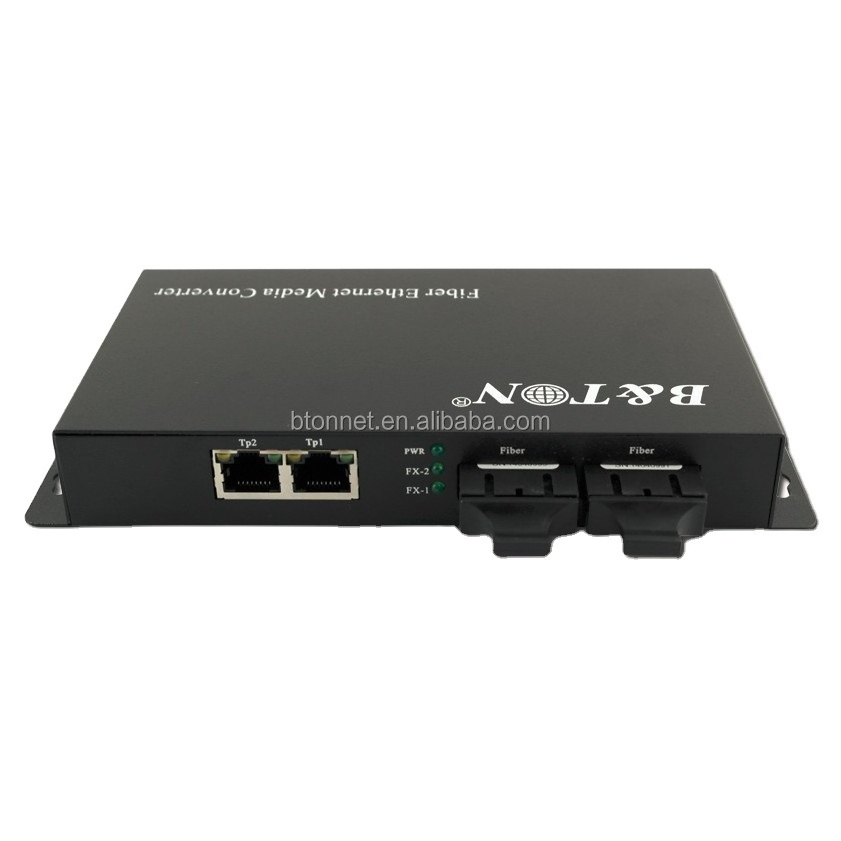

Gigabit ethernet switch optical fiber switch 1000M 2 UTP ports and 2 fiber SC media converter
Specifications
1.fiber optical switch
2.manufacturer,customized
3.three years warranty free
4.in stock,quick delivery
5.good after sail service
Introduction
Features
* Supports 10/100/1000Base-T, 1000Base-X protocol.
* Flow control for full duplex and half duplex.
* Supports up to 10k byte JUMBO frame.
* Supports Fiber Port Trunking, Increasing Fiber Channel Bandwidth and Supply Fiber Channel Redundancy.
* Supports Ports Based VLANS and TAG Based VLANS.
* In conformity to safety code of FCC and CE MARK.
* Connector: Multi-UTP RJ-45connector, one or two fiber connector
* Operation mode: full duplex mode or half duplex mode
* Power supply parameter: DC 5V 1A/2A
* Environmental temperature: 0-50℃
* Relative humidity: 5%-90%
* UTP cable: Cat5 UTP cable
* Transfer fiber: multimode(50/125, 62.5/125 or 100/140um); single mode( 8.3/125,8.7/125, 9/125 or 10/125um).
Specification
|
Rate |
10/100M or 10/100/1000M |
|
Protocol |
supported IEEE802.3 |
|
Fiber type |
single / dual fiber |
|
Optic mode |
single / multimode |
|
Transmission mode |
half / full duplex |
|
Ethernet interface |
RJ-45 |
|
Optic interface |
SC/FC/ST |
|
Optic wavelength |
850nm, 1310nm, 1550nm, 1310/1550nm,1490/1550nm |
|
BER |
< 1/1000000000 |
|
MTBF |
3 years |
|
POWER |
2.5W |
|
Power supply |
AC220V/0.5A,DC-48 V /0.5A, DC5V/1A,2A |
|
Working temperature |
0~50℃ |
|
Working humidity |
5%-95% |
|
Storage temperature |
-40℃~70℃ |
|
Storage humidity |
5%~95%(no-condensing) |
Application
* Extend your Ethernet connection up to 0~120km away using fiber optics.
* Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones.
* Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network Scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus).
* Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network.
* Intelligent transportation supervisory system (ITS)
* High-speed Way supervisory/Tele-Communication System
* Large corporations, network security monitoring system, multifunction system
*Long-distance Muti-media Schooling, Campus monitoring, long distance broadcast television transmission system.
Warranty
B&TON Products are with good quality, all materials are new provided, 3 years warranty with good after-sale service.We promise all B&TON products can do good jobs to you and your customers!
Our Services
3 years warranty for B&TON converters
Direct technical support from B&TON Factory
