Quick Details
-
Brand Name:
-
Robotlinking
-
Model Number:
-
NB185
-
Product Name:
-
DN50 water flow sensor 10-200L/min 5-24V
-
Save Humidity:
-
25% -95% RH
-
Production process:
-
Integrated
-
Output high pulse:
-
> DC 4.5 V (input voltage DC 5 V)
-
Output pulse low:
-
-
Working Voltage:
-
5-24V
-
Color:
-
Black
-
Output pulse duty cycle:
-
50 ± 10%
-
Output Rise Time:
-
0.04μS
-
Output Fall Time:
-
0.18μS
Quick Details
-
Type:
-
Flow Sensors
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Robotlinking
-
Model Number:
-
NB185
-
Product Name:
-
DN50 water flow sensor 10-200L/min 5-24V
-
Save Humidity:
-
25% -95% RH
-
Production process:
-
Integrated
-
Output high pulse:
-
> DC 4.5 V (input voltage DC 5 V)
-
Output pulse low:
-
-
Working Voltage:
-
5-24V
-
Color:
-
Black
-
Output pulse duty cycle:
-
50 ± 10%
-
Output Rise Time:
-
0.04μS
-
Output Fall Time:
-
0.18μS
Products Description

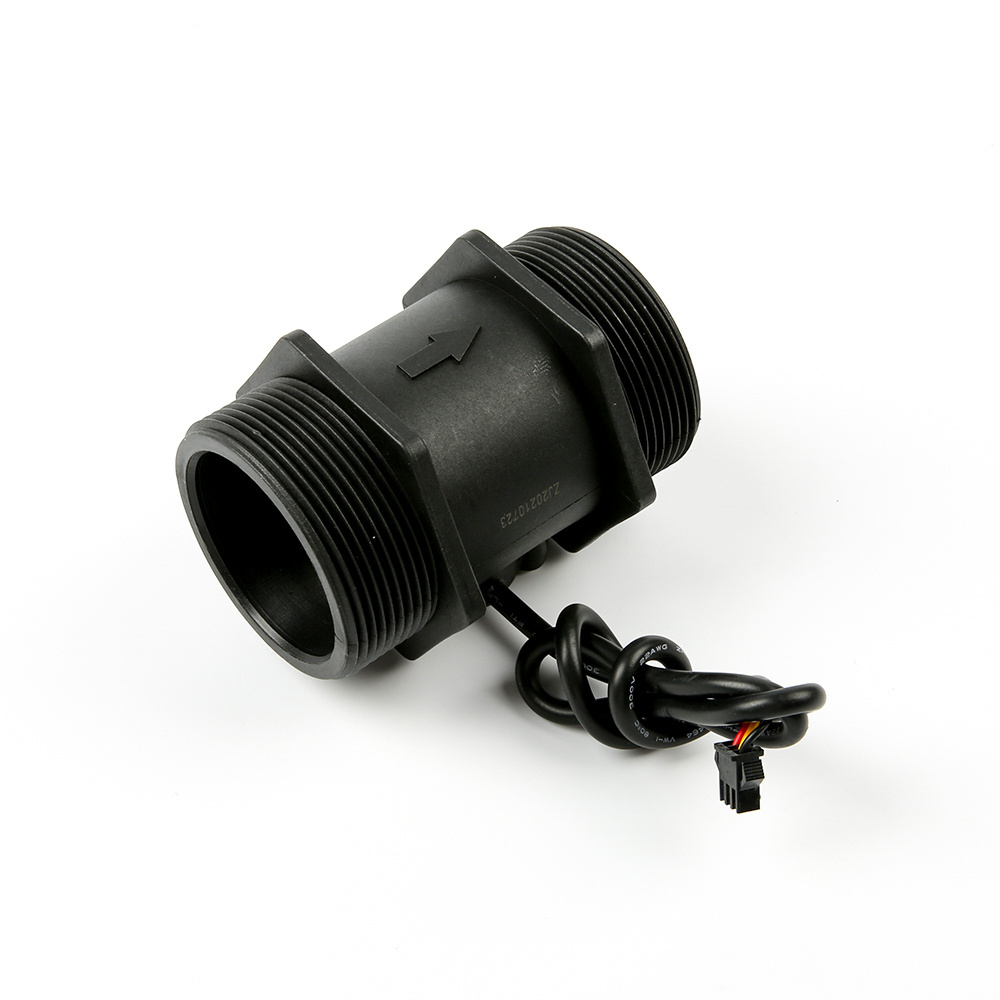

Water Flow Sensor YF-DN50 Flowmeter G2 10-200L/min 5-24V
Waterproof,Heat resistance,pressure resistance,cold resistance.
Easy to install.
Inlaid with stainless steel impeller shaft, durable wearable.
Suitable for automatic gas water heater.
Specification:
Material:Plastic / monocrystalline
Color:Black
Sensor:Hall effect
Interface Type: 2" interface (2 inch tubing)
Flow accuracy range: 10 ~ 300L / min ± 3%
Lowest rated working voltage: DC 5V-24V
Maximum operating current: 15 mA (DC 5V)
Operating voltage range: DC 5 ~ 18 V
Load capacity: ≤10 mA (DC 5V)
Operating temperature range: ≤80°C
Operating humidity range: 35% ~ 90% RH (no condensation state)
Allow withstand water pressure: <1.75Mpa
Storage temperature: -25 ~ + 80°C
Save Humidity: 25% ~ 95% RH
Production process: Integrated
Output high pulse:> DC 4.5 V (input voltage DC 5 V)
Output pulse low: Output pulse duty cycle: 50 ± 10%
Output Rise Time: 0.04μS
Output Fall Time: 0.18μS
Flow - Level Test pulse frequency pulse characteristics: (Hz) = [0.2 * Q] ± 3% (proficiency tests) (Q is flow L / min)
Dimension:92 x 59mm/3.62 x 2.32"(L x Dia)
