Quick Details
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1200
-
Power (kW):
-
70kw
-
Product name:
-
Rubber Vulcanization Machine
-
Material:
-
Q345R
-
Control System:
-
Electric Control System
-
System pressure:
-
0.85Mpa
-
Working pressure:
-
0.70Mpa
-
Design temperature:
-
180℃
-
Advantage:
-
High Producing Efficiency
-
Moq:
-
1 set
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
New Product 2021
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhongnuo
-
Voltage:
-
220v/240v/380v/415v
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1200
-
Power (kW):
-
70kw
-
Product name:
-
Rubber Vulcanization Machine
-
Material:
-
Q345R
-
Control System:
-
Electric Control System
-
System pressure:
-
0.85Mpa
-
Working pressure:
-
0.70Mpa
-
Design temperature:
-
180℃
-
Advantage:
-
High Producing Efficiency
-
Moq:
-
1 set
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
New Product 2021

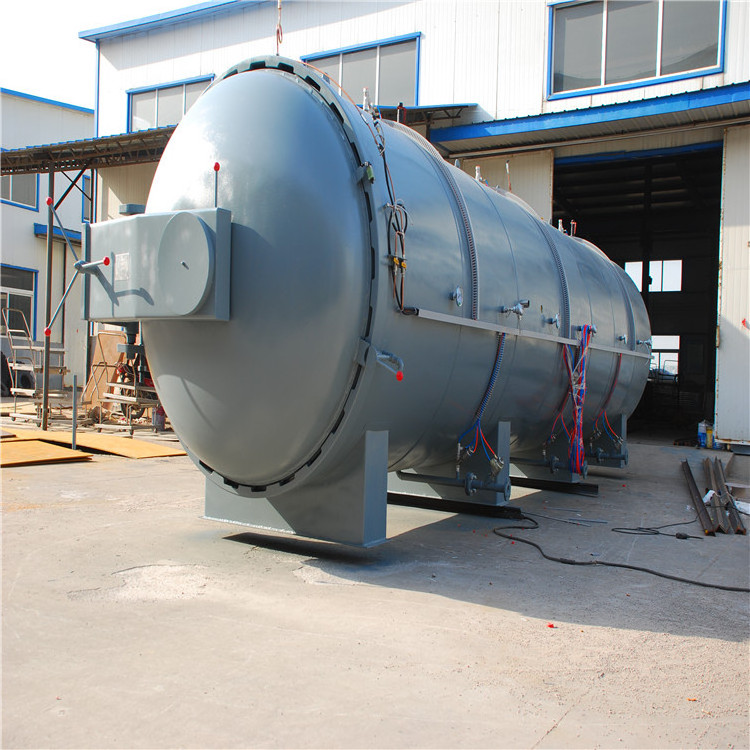

Product Description
1. Heating Type:
Steam direct
or
steam indirect heat
2. Opening door type: Manual quick opening, single man can easily complete all the steps.
3. This design is the most advanced way and idea of opening the door.
4. Open and close the door normally when it is power failure.
5. Sealing Method:The door uses inflatable silicone sealing ring, which is simple and convenient to maintain and the sealing effect is obviously better than other methods with more than 2 years of service life.
Safety chain type: 3 sets of safety interlock devices are designed at the tank door. It solves the safety problems caused by mistaken operation completely.
(1) Pressure automatic safety chain
(2)Manual safety chain
(3)Sealing ring safety chain
Control Type:
PLC Computer Full-automatic
Control, Computer
Semi-automatic Control
and Manual Control
Insulation Type: It uses double layer external insulation, saving thirty percent of energy consumption than ordinary insulation.
Loading mode: There are two 36# steel rail with the national standard in the tank. A filtering net is covered in the discharge hole which is easy to clean the sundries without clogging the outlet.
|
Model NO.
|
Diameter
(mm) |
Length
(mm) |
Capacity
(CBM) |
Thickness
(mm) |
Design Temp.
|
Design Pressure
|
|
ZNLH-1.2*5
|
800
|
1200
|
0.6
|
8mm
|
190℃ |
0.8MPa
|
|
ZNLH-1.2*5
|
1200
|
3000
|
3.4
|
8
|
|
|
|
ZNLH-1.5*4
|
1500
|
4000
|
7.06
|
8
|
|
|
|
ZNLH-1.5*5
|
1500
|
6000
|
10.6
|
8
|
|
|
Product Application:
Widely used in vulcanization of rubber products, SBR thermoplastic as well as the carbonization and degreasing of bamboo, such as,
rubber,
cable, printing and dyeing, chemical, building materials and other industries. Mainly used in rubber products, rubber hose, rubber roller etc.
Used in tire, rubber sleeve cable,
rubber shoes, rubber hose, rubber roller
, rubber belt, belt, conveyor belt, rubber ball, rubber lining, rubber cloth, rubber head, gloves, red flag, etc.
Also used for Yarn thread, mane, socks heat setting, high pressure modification and degreasing of horn and bone, feather hydrolysis, oxidation treatment of aluminum products, steaming and cooking of carbon materials, asbestos friction materials, gypsum and its products.
Specification
|
|
|
|
Autoclave Inter Diameter/Length/Volume
|
1500mm /6000mm/11m3
|
|
Set Pressure
|
0.8Mpa
|
|
Max Working Pressure
|
0.75Mpa
|
|
Test Pressure
|
0.9Mpa
|
|
Max Working Temp.
|
200℃
|
|
Power
|
Total Power: 120KW
|
|
Electric Voltage
|
320V/ 50HZ, 3ph electric power
|
|
Heating Way
|
Electric heating produce steam
|
|
Material
|
Q345R
|
|
Autoclave thickness
|
8mm
|
|
Way of open the door
|
By hand
|
|
Floor space( L/W/H)
|
7500*2000*2000mm (Approx )
|
Packing & Delivery
wooden packing or packed according to the customer's requirement.
