Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CHZ
-
Model Number:
-
CHZ-ST29
-
Beam Angle(°):
-
TYPE II TYPE III TYPE V
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
100-277V
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Lamp Luminous Flux(lm):
-
26000
-
Working Temperature(℃):
-
-35 ^+50
-
Product Weight（kg）:
-
4.3
-
Product name:
-
Led Street Lights
-
Dimming method:
-
0-10V, PMW, DALI and other intelligent controls
-
Power:
-
40W/50W/60W/80W/100W/120W/150W/160W/180W
-
Power factor:
-
>0.95
-
Work humidity:
-
10%~90%
-
Protection level:
-
0-10V, PMW, DALI and other intelligent controls
-
Light shell spraying:
-
Gray, black or white
-
Aperture dia (mm):
-
D50/60
-
Beam Angle:
-
TYPE II TYPE III TYPE V
-
Drive type:
-
MW, INVENTRONICS, DONE CLASS I
Quick Details
-
Color Temperature(CCT):
-
3000-6500K
-
Warranty(Year):
-
5-Year
-
Lighting solutions service:
-
DIALux evo layout
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CHZ
-
Model Number:
-
CHZ-ST29
-
Beam Angle(°):
-
TYPE II TYPE III TYPE V
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
100-277V
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Lamp Luminous Flux(lm):
-
26000
-
Working Temperature(℃):
-
-35 ^+50
-
Product Weight（kg）:
-
4.3
-
Product name:
-
Led Street Lights
-
Dimming method:
-
0-10V, PMW, DALI and other intelligent controls
-
Power:
-
40W/50W/60W/80W/100W/120W/150W/160W/180W
-
Power factor:
-
>0.95
-
Work humidity:
-
10%~90%
-
Protection level:
-
0-10V, PMW, DALI and other intelligent controls
-
Light shell spraying:
-
Gray, black or white
-
Aperture dia (mm):
-
D50/60
-
Beam Angle:
-
TYPE II TYPE III TYPE V
-
Drive type:
-
MW, INVENTRONICS, DONE CLASS I

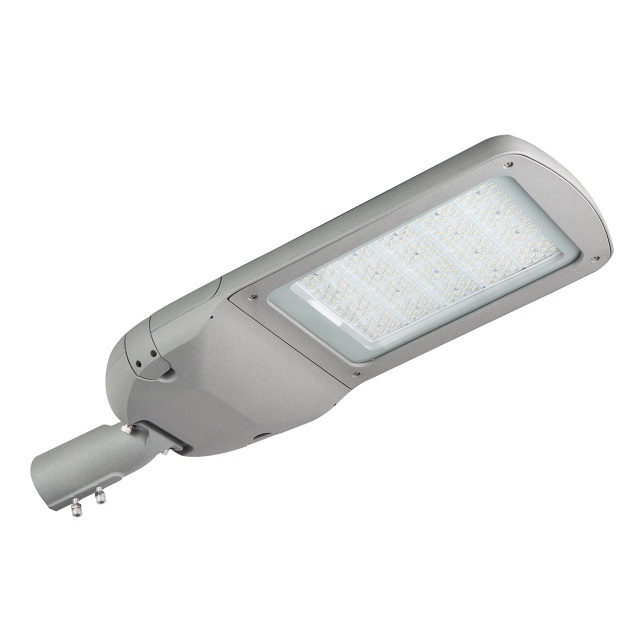

Competitive advantages of CHZ lighting outdoor LED street light CHZ-ST29:
1. The appearance design is smooth and conforms to the Western aesthetic;
2. High quality, able to meet the bidding requirements of most markets. To this end, we have done a comprehensive test and certification of this product: ENEC, CE, EMC, LVD, TUV, ROHS, WEEE, IP66, IK10, 10KV/20KV, IES, TM-21+ISTMT, LM-82 , SALT-FOG TEST, BOM, EN62471-R, LM79 and detailed operating manuals were produced.
3. The kit is of good quality and the light source, driver and cable are well-known brands. More than 60% of the workers are skilled workers of 4-5 years, and the performance of the products is stable.
4. Good sealing and heat dissipation performance, waterproof, dustproof and lightning proof. The working temperature can be more than 50,000 hours without working temperature from -35 °C to +50 °C. The warranty period is 5 years.
5. Our company is a professional manufacturer of LED lamps and has passed ISO9001 and ISO14000 certification. The design department can provide simulation solutions according to actual projects to help customers choose suitable products and lighting solutions to improve the efficiency of the order.
6. Fast delivery, 3-5 working days for samples,15-20 working days for bulk after payment depends on the order quantity
7. The project is experienced. This product has successfully completed physical projects such as Kenya Airport, Bangladesh Street, Spanish Street Light, Kenya Parking Lot, etc.
|
Model |
CHZ-ST29 |
|
Power |
30W 40W 50W 60W 80W 90W 100W 120W 150W 160W 180W 200W |
|
LED type |
SMD 5050 |
|
Lumen |
>150LM/W |
|
CCT |
3000K/4000K/5000K/5700K/6500K |
|
Beam Angle |
TYPE II TYPE III TYPE V |
|
RA |
>70 |
|
Input Volt |
100-277V |
|
Power factor |
>0.95 |
|
Drive type |
MW, INVENTRONICS or other, according to customer needs |
|
Dimming method |
Ordinary, 0-10V, PMW, DALI and other intelligent controls |
|
Lamp body material |
Die-casting aluminum lamp body + tempered glass cover +304 stainless steel screws |
|
Lamp housing spraying |
Gray, black or white |
|
Installation diameter |
D60mm |
|
Protection level |
IP66/IK09 |
|
Lightning protection level |
10KV or 20KV |
|
Operating temperature |
-35 ℃ ~+50 ℃ |
|
Working humidity |
10%~90% |
|
Life/warranty period |
50,000hrs / 5 years |
ENEC certificate TUV certificate CB certificate
Established in 2010, Shanghai CHZ Lighting Co., Ltd. is a high-tech enterprise engaged in the research, development, production and sales of lighting products.
CHZ adheres to the standard of "leading technology and leading quality" and has established a joint R&D center with Professor Chen Dahua (Ph.D.) of Fudan University's electric light source department. It continues to develop new products and lead the smart trend. Our products cover industrial lighting, stadium lighting, street lighting and solar lighting. We insist on using high-quality raw materials and advanced production technology to focus on manufacturing every kind of high-quality lamps. Our factory has passed ISO9001, ISO14001, TUV, CB, ENEC, CE , FCC, ROSH... certificates.
1. What is a general business process?
Answer: Send inquiry to CHZ→(Customer provides engineering information→Dialux simulation design→Confirm design plan and product→) Specification confirmation→Quotation→Sample list confirmation→Form invoice→Payment bank document→Sample delivery→Sample satisfaction→Big order list→ Formal invoice → 30% deposit payment in advance → production ready → 70% balance bank check → delivery → after-sales service
2. What is the warranty?
A: According to different types of lamps, a 5-7 year warranty is provided. If the product fails during the warranty period due to quality problems, we will immediately send out new replacements and freight charges in case of emergency. Or, we prefer to send a replacement for the next order.
3. What is the payment period?
A: For sample orders, we can accept wire transfer 100% in advance, PayPal, Western Union. For large orders, please pay 30% deposit by wire transfer and pay 70% balance before shipment. For large orders, letters of credit
3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable.
4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.
5. I don't know which sty how many LED Street Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.
6. Do you have any MOQ limit for led light order?
Answer: Low MOQ, 1pc for sample checking is available .
7. How do you ship the goods and how long does it take to arrive?
Answer: We usually ship samples and small quantities of products that customers need urgently with DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. High-volume product transportation is available for airline or maritime transportation. The shipping time is updated according to the actual situation of the shipping company.
8. We don't know how to install,can you help?
Answer : We offer both online and on-site installation instructions and testing. Please communicate with us in advance, we will negotiate to confirm the more appropriate guidance to ensure the smooth completion of the project.
9. How to deal with the faulty?
Answer : Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will send out new replacement to you immediately for you to solve the problem.
10. It is not convenient for us to visit your company in China, but what if you want to know the strength of your company in more detail?
Answer : You can visit us by visiting our foreign branches. We have teams and warehouses in Spain, USA, Nigeria and Nicaragua can provide you with comprehensive pre-sales and after-sales protection. You can also pay attention to it through our official website and the FACEBOOK homepage .
