Quick Details
-
Brand Name:
-
GOLD
-
Model Number:
-
WSY-B
-
Rated penetration force:
-
30 KN
-
pulling force:
-
40 KN
-
Penetration speed:
-
1.2±0.3 m/min
-
Slow Lift speed:
-
1.03 m/min
-
Fast Lift speed:
-
2.06 m/min
-
System oil pressure:
-
8 MPa
-
Working cylinder diameter:
-
50 mm
-
piston rod:
-
25 mm
-
Tank capacity:
-
40 L
-
Powered diesel engine:
-
170 model
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
GOLD
-
Model Number:
-
WSY-B
-
Rated penetration force:
-
30 KN
-
pulling force:
-
40 KN
-
Penetration speed:
-
1.2±0.3 m/min
-
Slow Lift speed:
-
1.03 m/min
-
Fast Lift speed:
-
2.06 m/min
-
System oil pressure:
-
8 MPa
-
Working cylinder diameter:
-
50 mm
-
piston rod:
-
25 mm
-
Tank capacity:
-
40 L
-
Powered diesel engine:
-
170 model
|
Specification WSY
|
|
WSY-3B
|
WSY-5B
|
WSY-8B
|
WSY-10B
|
WSY-15B
|
WSY-20B
|
|
|
Rated penetration force KN
|
|
30
|
50
|
80
|
100
|
150
|
200
|
|
|
pulling force KN
|
|
40
|
60
|
95
|
130
|
180
|
240
|
|
|
Penetration speed m/min
|
|
1.2±0.3
|
1.2±0.3
|
1.2±0.3
|
1.2±0.3
|
1.2±0.3
|
1.2±0.3
|
|
|
Lift speed m/min
|
Slow
|
1.03
|
1.03
|
1.03
|
1.03
|
0.92
|
0.92
|
|
|
|
Fast
|
2.06
|
2.06
|
2.06
|
2.06
|
2.06
|
2.06
|
|
|
System oil pressure MPa
|
|
8
|
8
|
9
|
9
|
10
|
10
|
|
|
Working cylinder
mm |
diameter
|
50
|
60
|
70
|
90
|
100
|
110
|
|
|
|
piston rod
|
25
|
30
|
35
|
40
|
50
|
50
|
|
|
Tank capacity L
|
|
40
|
70
|
70
|
80
|
90
|
100
|
|
|
Power
|
diesel engine
|
170
|
180
|
190
|
195
|
1100
|
1105
|
|

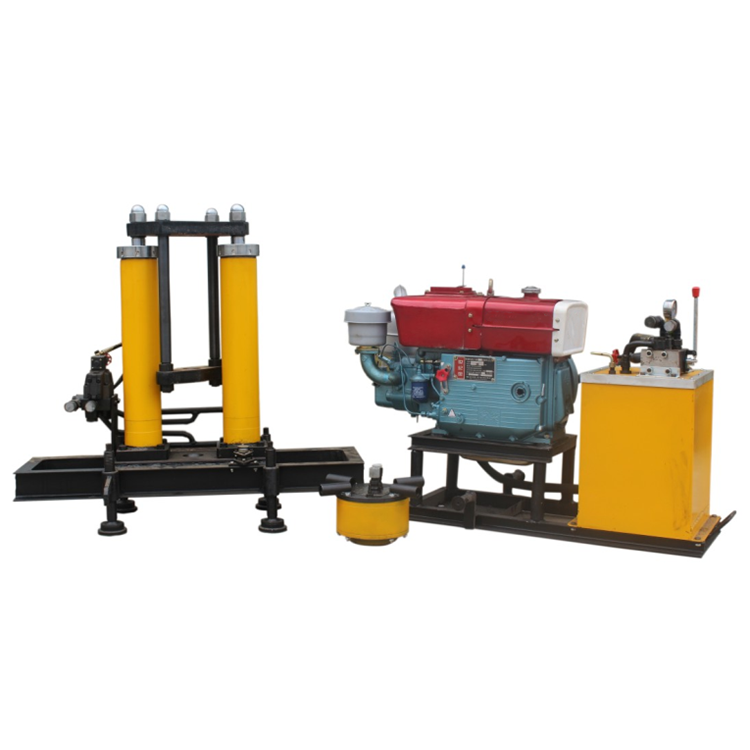

Introduction of WSY-B CPT Test Machine
WSY-B static probe machine adopts hydraulic transmission technology, the force measuring static probe is automatically pressed into the soil at a constant speed, and the relevant mechanical parameters of the soil are determined by the static probe microcomputer (or automatic recording instrument).
Wsy-b static probing machine adopts many advantages of similar products at home and abroad, with novel design, light structure, small size, large power, easy operation, high degree of automation, it is an ideal equipment for soil static probing (CPT). It can be extended for in situ testing such as hole pressure static probe (CPTU), cross plate shear (VCT), press-in wave velocity (WVT) and flat shovel side swelling (DMT)
Wsy-b static probing machine adopts many advantages of similar products at home and abroad, with novel design, light structure, small size, large power, easy operation, high degree of automation, it is an ideal equipment for soil static probing (CPT). It can be extended for in situ testing such as hole pressure static probe (CPTU), cross plate shear (VCT), press-in wave velocity (WVT) and flat shovel side swelling (DMT)
Main Specification and Parameter
Specification type
: WSY-3B, WSY-5B, WSY-8B, WSY-10B, WSY-15B, WSY-20B (see Table 1)
Structure type
: bulk type, forkshaped truck manual pull.
Reaction force
: Ground anchor (diameter 250 ~ 350 mm), the anchor is automatically lowered by hydraulic pressure.
Lower anchor
: Oil motor, torque 2.8 KN.m, speed 10-18 R /min (adjustable).
Clamping rod form
: insert plate oil cylinder stroke: 600 mm
Oil circuit
: Adopt DL and 4WE control valves, high pressure and low loss.
Working oil
: 46# hydraulic oil, winter temperature is low can also be used 32# hydraulic oil.
Matching probe
: double bridge static probe, can also be optional single bridge or hole pressure three use probe.
Optional measuring instrument
: static probe microcomputer (or automatic recorder, digital dynamometer, etc.).
Rod
: φ28, φ33, φ36, φ40 high strength alloy (45MnMoBo) seamless steel pipe.
Usage
A Cone Penetration Test (CPT) is widely used to decide the subsurface stratigraphy in situ (in place) and to estimate geotechnical parameters of the substances present. Geotechnical engineers normally use a CPT check to decide the vital development necessities for infrastructure – roadbeds, bridges, buildings. Due to the touchy electronics interior the cone, it should be pushed to depth by means of static push methods. The CPT take a look at technique consists of pushing an instrumented cone into
the floor at a managed two cm/sec push rate. Common measurements being gathered are cone tip pressure, sleeve friction, pore stress and tilt angle. Additional sensors can be introduced like seismic, or different geo-environmental logging tools.
the floor at a managed two cm/sec push rate. Common measurements being gathered are cone tip pressure, sleeve friction, pore stress and tilt angle. Additional sensors can be introduced like seismic, or different geo-environmental logging tools.
