Quick Details
-
Model Number:
-
LXSG-32E
-
product name:
-
Multi-jet pulse water meter
-
Keyword:
-
ISO 4064 class b water meter
-
Certificate:
-
ISO9001/ISO14001/OHSAS18001
-
filter:
-
ABS
-
Water Pressure:
-
1.0Mpa/1.6Mpa
-
Feature:
-
Long Working Life
-
color:
-
blue or customized
-
material:
-
brass, nylon
-
type:
-
dry dial
Quick Details
-
Type:
-
Multi-jet meters
-
Place of Origin:
-
China
-
Brand Name:
-
BOSTAR
-
Model Number:
-
LXSG-32E
-
product name:
-
Multi-jet pulse water meter
-
Keyword:
-
ISO 4064 class b water meter
-
Certificate:
-
ISO9001/ISO14001/OHSAS18001
-
filter:
-
ABS
-
Water Pressure:
-
1.0Mpa/1.6Mpa
-
Feature:
-
Long Working Life
-
color:
-
blue or customized
-
material:
-
brass, nylon
-
type:
-
dry dial

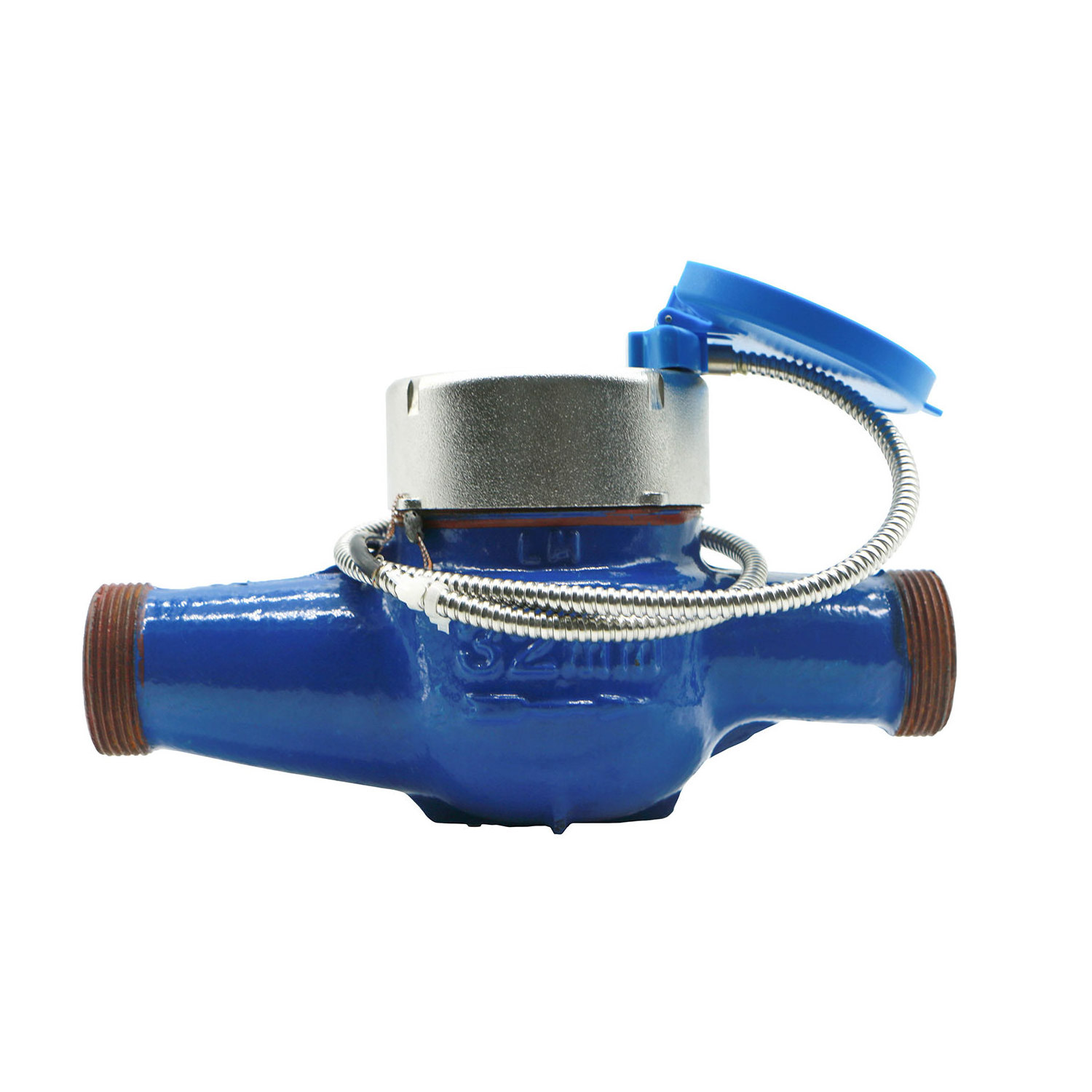

RS485-MODBUS Wired Remote Water Meter Product Use: This product is mainly used for water metering in residential areas, commercial buildings, office buildings, industries, etc. with remote meter reading requirements and remote power supply capability.
|
Flow parameter
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Size
|
Rate
|
Q4
|
Q3
|
Q2
|
Q1
|
Min.reading
|
Max.reading
|
||||||||
|
|
|
Q3/Q1
|
M3/h
|
|
|
|
M3
|
|
||||||||
|
LXS-15
|
1/2"
|
80
|
3.125
|
2.5
|
0.05
|
0.03125
|
0.00001
|
99999
|
||||||||
|
LXS-20
|
3/4"
|
80
|
5
|
4
|
0.08
|
0.05
|
0.00001
|
99999
|
||||||||
|
LXS-25
|
1"
|
80
|
7.875
|
6.3
|
0.126
|
0.07875
|
0.00001
|
99999
|
||||||||
|
LXS-32
|
1 1/4"
|
80
|
12.5
|
10
|
0.2
|
0.125
|
0.00001
|
99999
|
||||||||
|
LXS-40
|
1 1/2"
|
80
|
20
|
16
|
0.32
|
0.2
|
0.00001
|
99999
|
||||||||
|
LXS-50
|
2"
|
80
|
31.25
|
25
|
0.5
|
0.3125
|
0.00001
|
99999
|
||||||||
Quality:
•Dry type, magnet drive, clean dial to guarantee it legible reading, resistance to magnetic interference.
•Available with non-return valve, inlet strainer and pulse output on request.
•Technical data conform to International Standard ISO4064 Class B.
Working condition:
Temperature:0.1~30℃ (cold water);
0.1~90℃ (hot water)
Pressure: ≤1Mpa
Maximum Permissible Error:
Qmin→Qt (ex Qt)=±5%;
Qt→Qs (both included)=±2% or ±3%(hot water)
Qmin=Min Flow, Qt=Transition Flow, Qs= Max Flow.
Main performance parameters of RS485 water meter:
External input voltage: 12V;
Battery voltage: 3.6V;
Working current: 3mA;
Quiescent current: 10μ A;
Switching filter time: 500ms;
Communication method: RS485;
Communication protocol: MODBUS (RTU mode);
Baud rate: 9600bps;
Verification: no verification;
Data bits: 8 digits;
Stop bit: 1 bit.
|
DN
|
Length
|
Width
|
Height
|
Thread
|
|
Weight
|
||||||
|
|
L
|
B
|
H
|
|
|
|
||||||
|
（mm）
|
mm
|
|
|
d
|
D
|
Kg
|
||||||
|
Horizontal
|
|
|
|
|
|
|
||||||
|
15
|
165
|
94
|
112.5
|
R1/2
|
G3/4B
|
1.5
|
||||||
|
20
|
195
|
94
|
114
|
R3/4
|
G1B
|
1.8
|
||||||
|
25
|
225
|
98
|
124
|
R1
|
G1 1/4B
|
2.4
|
||||||
|
32
|
230
|
98
|
124
|
R1 1/4
|
G1 1/2B
|
3
|
||||||
|
40
|
245
|
124
|
154
|
R1 1/2
|
G2B
|
5
|
||||||
|
50
|
280
|
165
|
179
|
①
|
|
9.5
|
||||||
|
Vertical type
|
|
|
|
|
|
|
||||||
|
15
|
144
|
98
|
100
|
R1/2
|
G3/4B
|
1.6
|
||||||
|
20
|
152
|
98
|
100
|
R3/4
|
G1B
|
1.8
|
||||||
|
25
|
164
|
104
|
110
|
R1
|
G1 1/4B
|
2.5
|
||||||
