Quick Details
-
Model Number:
-
SEB-DR 042
-
Material:
-
High Quality Carbon Steel
-
Hardness:
-
HRC56-58
-
MOQ:
-
1pcs
-
Advantage:
-
High Quality
-
Keywords:
-
drill chuck
Quick Details
-
Number of Jaws:
-
3
-
Place of Origin:
-
China
-
Brand Name:
-
SEB
-
Model Number:
-
SEB-DR 042
-
Material:
-
High Quality Carbon Steel
-
Hardness:
-
HRC56-58
-
MOQ:
-
1pcs
-
Advantage:
-
High Quality
-
Keywords:
-
drill chuck
Drill Chuck PRODUCTS LIST

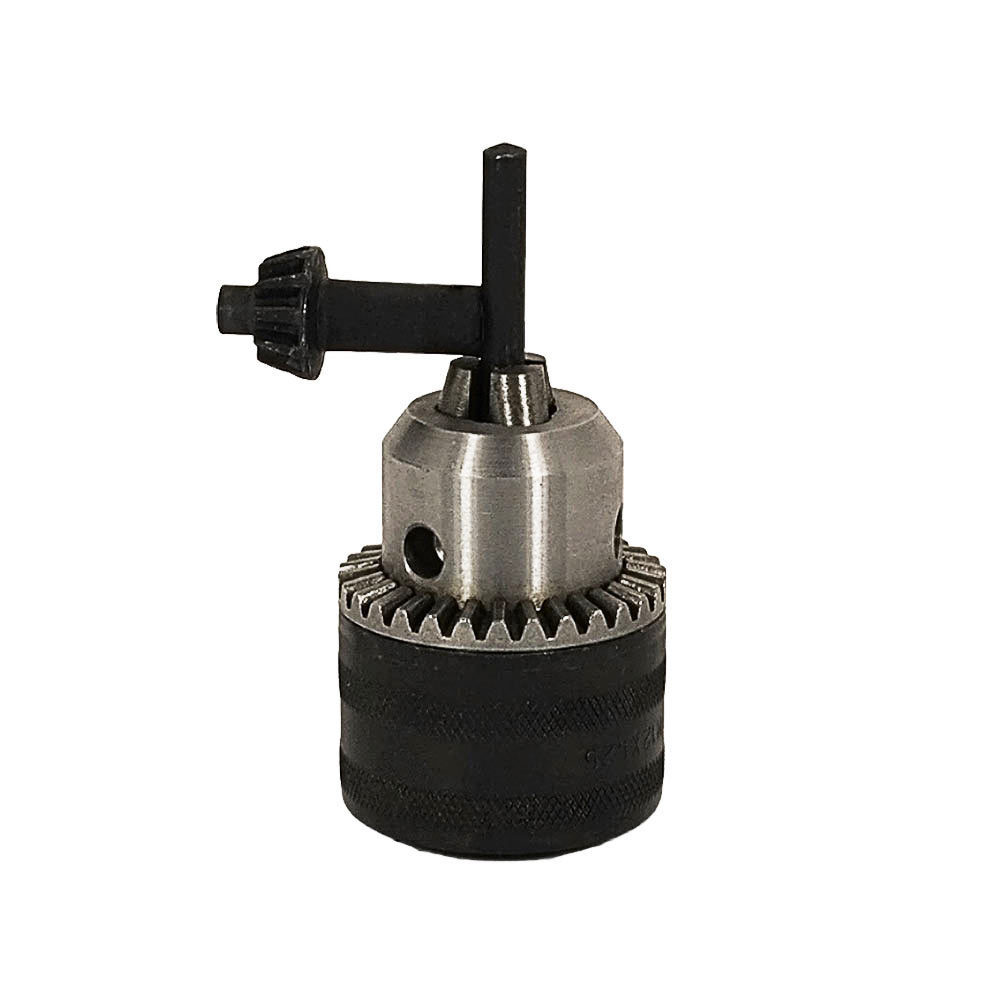

Key Type Chuck
Keyless Chuck
Self-tighten Chuck System
Type: Light Duty/ Mid-heavity Duty/ Heavy Duty
Thread
10mm 3/8"-24UNF
13mm 1/2"-20UNF
16mm 5/8"-16UNF
1.The nut and jaws adopt special steel ,durability and super precision
2.Suitable for super electic grinder, engravine machine and precision machine lathe
3.To be used for milling & drilling machine ,bench and wood working machine.
Scope of light, medium, heavy-based drilling connecting portable bench drill or power tool.
Features:
1. High-precision thread and tapered bore closely connected to the tool.
2. Shell, keyhole, keys after quenching.
3. Gripper special treatment, with good wear resistance.
4. Gears and gear housing Pressing the key.
5. Accuracy accurate and reliable, durable.
Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.
Shipment way: We can send the goods by sea,air or couirer(DHL,TNT,Fedex etc) according to the customer's requirement.
Our Services and reputation:
Great quality, excellent price and customers ’ satisfication
| Type | Clamping range | Thread | D (mm) | L (mm) | |
| mm | inch | ||||
| J316 | 0.6-6 | 1/64-1/4 | 3/8-24UNF | 30 | 49 |
| J3510 | 1.5-10 | 1/16-3/8 | 3/8-24UNF | 33.3 | 57 |
| J3510A | 1.5-10 | 1/16-3/8 | M12 × 1.25 | 33.3 | 57 |
| J3510B | 1.5-10 | 1/16-3/8 | 1/2-20UNF | 33.3 | 57 |
| J3510C | 1.5-10 | 1/16-3/8 | M10 × 1.0 | 33.3 | 57 |
| J3513 | 1.5-13 | 1/16-1/2 | 1/2-20UNF | 42.5 | 72.5 |
| J3513A | 1.5-13 | 1/16-1/2 | 3/8-24UNF | 42.5 | 72.5 |
| J3513B | 1.5-13 | 1/16-1/2 | M12 × 1.25 | 42.5 | 72.5 |
| J3513C | 1.5-13 | 1/16-1/2 | M12 × 1.0 | 42.5 | 72.5 |
| J3513D | 1.5-13 | 1/16-1/2 | M14 × 1.0 | 42.5 | 72.5 |
| J3516 | 3.0-16 | 1/8-5/8 | M12 × 1.25 | 53 | 86 |
| J3516 | 3.0-16 | 1/8-5/8 | 1/2-20UNF | 53 | 86 |
| J3516 | 3.0-16 | 1/8-5/8 | 3/8-24UNF | 53 | 86 |
| J3516 | 3.0-16 | 1/8-5/8 | 5/8-16UN | 53 | 86 |
