Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
12-30kw
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
2000mmx2000mmx3000mm
-
Processing Types:
-
alcohol
-
Product name:
-
Column Distillation Equipment
-
Material:
-
SUS304/SUS316/red Copper
-
Application:
-
Wine Whiskey Vodca Gin Tequila Brandy
-
Type:
-
Column Distillation
-
Capacity:
-
100L-5000L
-
Components:
-
Copper Onion Head
-
Distilling column:
-
4/6/8/12/16/20 Column Plate
-
Heating method:
-
Electrical Heating Steam Hearting
-
Feature:
-
High Effective
-
Tags:
-
For Alcohol
Quick Details
-
Place of Origin:
-
Shandong
-
Brand Name:
-
METO
-
Model Number:
-
500L
-
Voltage:
-
220V/380V
-
Power:
-
12-30kw
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
2000mmx2000mmx3000mm
-
Processing Types:
-
alcohol
-
Product name:
-
Column Distillation Equipment
-
Material:
-
SUS304/SUS316/red Copper
-
Application:
-
Wine Whiskey Vodca Gin Tequila Brandy
-
Type:
-
Column Distillation
-
Capacity:
-
100L-5000L
-
Components:
-
Copper Onion Head
-
Distilling column:
-
4/6/8/12/16/20 Column Plate
-
Heating method:
-
Electrical Heating Steam Hearting
-
Feature:
-
High Effective
-
Tags:
-
For Alcohol

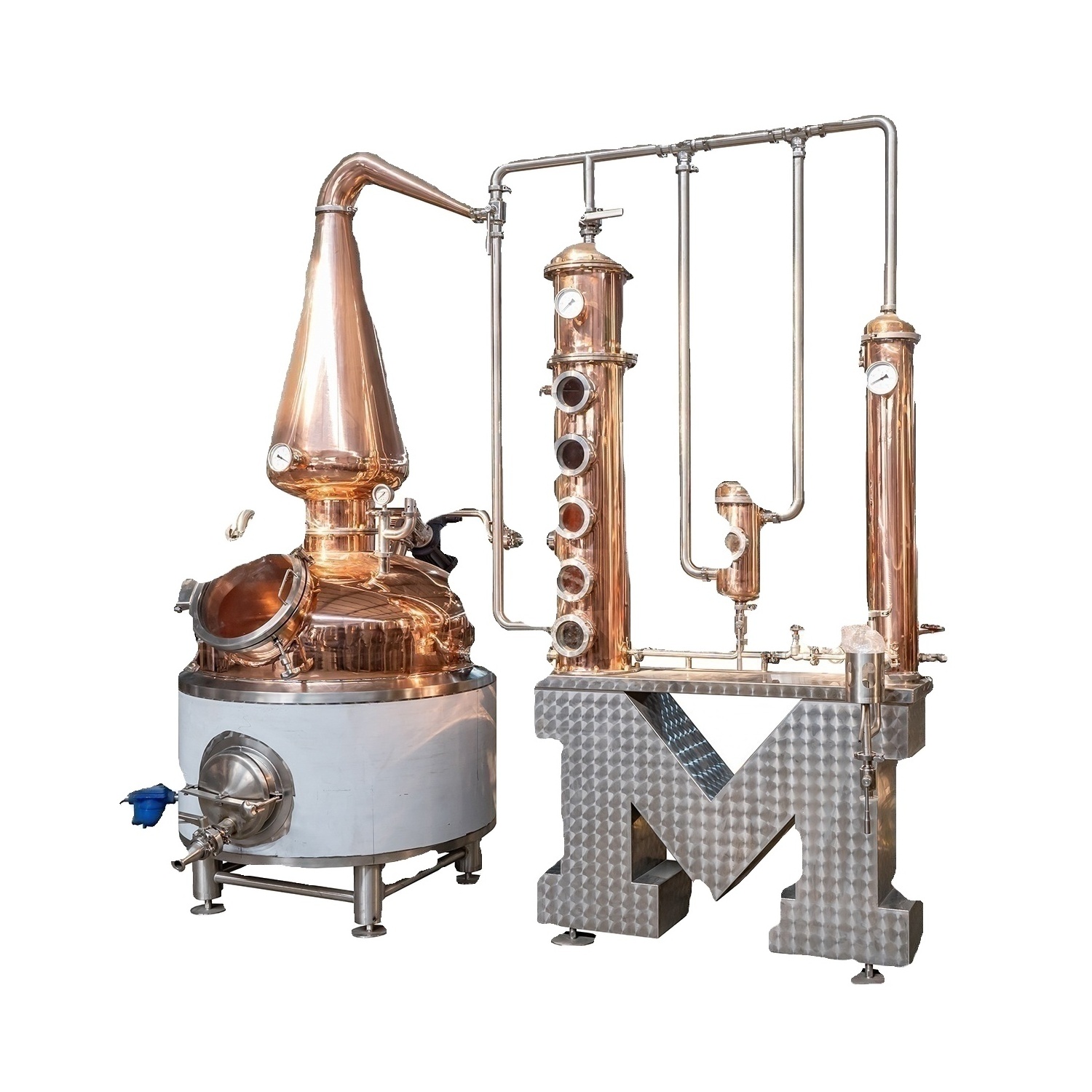

METO alcohol distillation equipment for rum gin vodka brandy spirit distiller red Copper Whiskey Distillery Equipment
Product Description
Distilled alcohol is a kind of alcoholic beverage with higher ethanol concentration than the original fermentation product.
Brandy, whisky, rum and Chinese liquor are all distilled spirits, most of which are spirits with high degree. The production
process is first brewing, then distilling, then cooling, and finally obtaining the alcohol solution drinks with high degree.
Brandy, whisky, rum and Chinese liquor are all distilled spirits, most of which are spirits with high degree. The production
process is first brewing, then distilling, then cooling, and finally obtaining the alcohol solution drinks with high degree.
Specification
|
Product Name
|
METO Distiller Equipment
|
|
Material
|
Red copper &SUS 304 Stainless Steel
|
|
Size
|
50L-5000L
|
|
Application
|
Whiskey, Brandy Gin, Rum, Vodka, Baijiu
|
|
Certificate
|
CE/ UKCA / ISO9001
|
|
Heating
|
Electric/ Steam/ Direct fire
|
|
Parts
|
Still pot, Column, Gin basket, Condenser, CIP, Pipe system
|
|
Options
|
-Voltage :110V/208V/220V/230V/240V/380V/400V/415V/460V/600V/.3 phase 50/60HZ
-Copper pot/ Stainless steel pot
-Copper dephlegmator /condenser
-CIP pump and CIP pipe
-Bottom with spirit collection tank for head heart and tail.
|
Spirit type
|
Spirit type
|
Capacity
|
components
|
|
Whiskey distiller
|
50-5000L
|
Still pot, Swan neck, condenser, CIP, pipe system
|
|
Vodka distiller
|
50-5000L
|
Still pot,onion head, column , dephlegmator, condenser, CIP, pipe system
|
|
Brandy distiller
|
50-5000L
|
Still pot, onion head, column, dephlegmator, condenser, CIP, pipe system
|
|
Rum distillery
|
50-5000L
|
Still pot, onion head, column, dephlegmator,condenser, CIP, Pipe system
|
|
Gin distillery
|
50-5000L
|
Still pot, onion head, column, dephlegmator,condenser, CIP, Pipe system
|
|
Multi-spirits distiler
|
50-5000L
|
Still pot, onion head, column, dephlegmator,condenser, CIP, Pipe system
|
Details Images
Onion head
It is made of copper , the designed enlarged the contacted area of the wine with the copper, It can remove highly volatile sulfur compounds , and it can
react with acid and fat in wine during use to improve the taste.
Distillation column
With blisters device and glass sight glass, it can improve the degree and quality of the wine . For whisky and gin it is have 4 plates column (5 sight glass) At the top of the column is dephlegmator , that improve the quality of the wine.
Condenser
It is made of copper pipe inside and SUS304 stainless steel column .The vapor passing through the cooling tubes gets in touch with
the cold water and exchange heat with each other. Then the vapor is condensed to wine that we want. It has inlet and oulet of
cooling water.
the cold water and exchange heat with each other. Then the vapor is condensed to wine that we want. It has inlet and oulet of
cooling water.
Distillation pot
Inner shell is made of copper, Outer shell is made of SUS 304 stainless steel,pot is assembled with liquid thermometer, pressure gauge ,thermometer probe,safty releasing valve, CIP cleaning ball, drain valves, ect.
All view mirror pressure hole
Made of SUS 304 Stainless steel and borosilicate glass, it have good sealing performance. and can be abserved at any time in the tank,it is safe and reliable .
Gin basket
The gin basket is use for gin produce , add spices and
other substances to enhance the taste of the wine.
