Key Features:

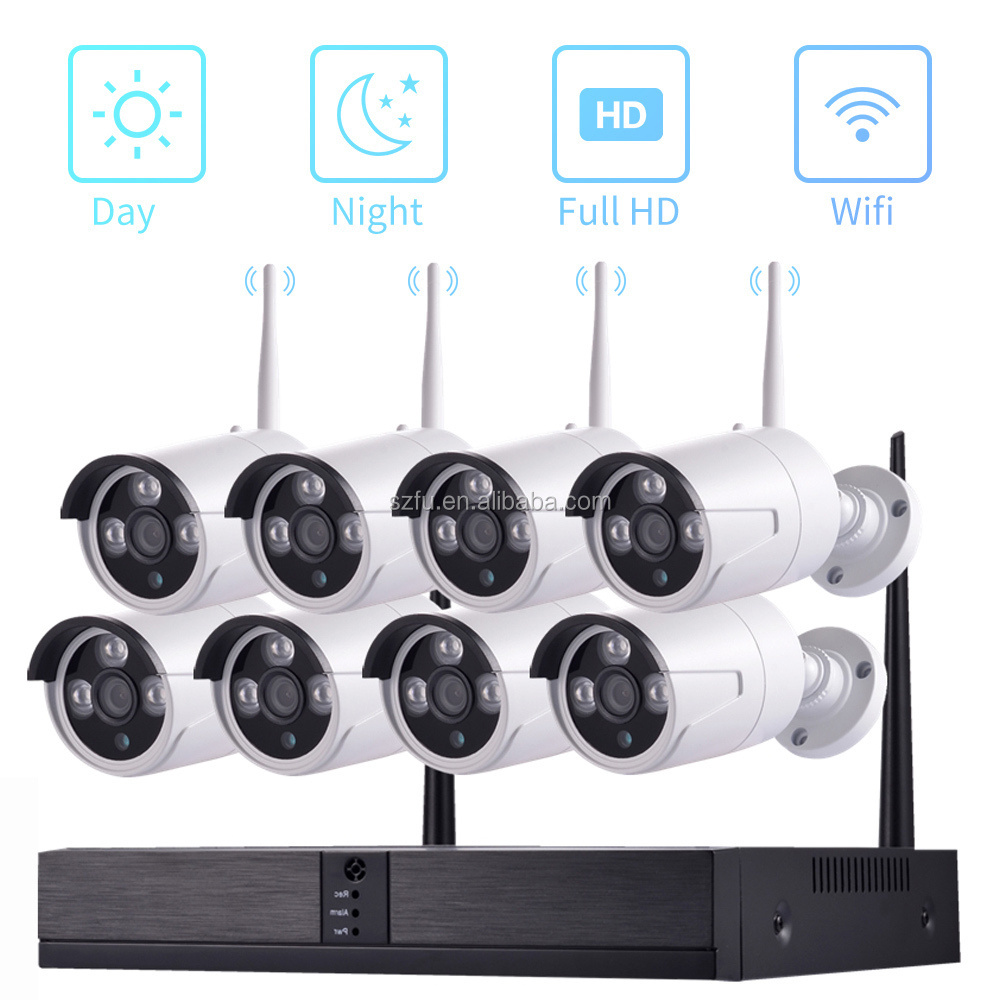

1.8CH 1080P wifi NVR + 8pcs 1080P wifi IP cameras
2.Convenient Installation
3.Plug and play
4.P2P, offer friendly APP
5.Support 1 SATA HDD
6.Wireless transmission stability:2.4G wireless
7.1080P Video
8.Special and separate network for wireless transmission
9.Wifi wild working distance up to 80m,pierce through a wall 30m
10.Quick setup, with built-in multilingual management page.
- Product Details
- {{item.text}}
Quick Details
-
Customized support:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
IND-699HE-XMW(Z-8)
-
Feature:
-
Night Version/
-
Video compression:
-
265 Main Profile
-
Resolution:
-
1080P
-
Product name:
-
4ch H.265 1080p Wireless NVR Kit
-
Image Sensor:
-
1/2.7"CMOS
-
Lens:
-
4mm
-
Dimension:
-
38(L)*38(W)*12(H)mm(No antenna)
-
Day& Night:
-
Auto / Color / BW
Quick Details
-
Special Features:
-
NIGHT VISION, Face Recognition
-
Network:
-
wifi
-
Function:
-
NIGHT VISION
-
Customized support:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
IND-699HE-XMW(Z-8)
-
Feature:
-
Night Version/
-
Video compression:
-
265 Main Profile
-
Resolution:
-
1080P
-
Product name:
-
4ch H.265 1080p Wireless NVR Kit
-
Image Sensor:
-
1/2.7"CMOS
-
Lens:
-
4mm
-
Dimension:
-
38(L)*38(W)*12(H)mm(No antenna)
-
Day& Night:
-
Auto / Color / BW
Product Description
|
Product Name
|
Wifi Nvr kit security camera system
|
|
Channels
|
8
|
|
Function
|
Remote monitoring
|
|
Power
|
DC 12V
|
|
WiFi NVR Specification
|
WiFi NVR Specification
|
|
|
|
||||
|
System
|
Model
|
IND-699HE-XMW(Z-8)
|
|
|
||||
|
|
Main processor
|
Hi 3536D |
|
|
||||
|
|
Operating System
|
Embedded Linux
|
|
|
||||
|
|
System resources
|
Simultaneous multi-channel real-time recording, playback, network operation, USB backup
|
|
|
||||
|
Interface
|
Operator interface
|
16-bit true color graphic menu operation interface, support mouse operation
|
|
|
||||
|
|
Preview
|
1/4
|
|
|
||||
|
|
Video input (IP)
|
8*1080P |
|
|
||||
|
|
Forwarding bandwidth &Access bandwidth
|
24Mbps
|
|
|
||||
|
|
Video compression
|
H.265+
|
|
|
||||
|
|
Display quality
|
Max 1080P
|
|
|
||||
|
|
Decode
|
8*1080P
|
|
|
||||
|
|
VR
|
Unsupport
|
|
|
||||
|
|
Motion detection
|
Support(depend on camera)
|
|
|
||||
|
Audio
|
Audio compression
|
G.711A
|
|
|
||||
|
|
Intercom
|
Unsupport
|
|
|
||||
|
Record & playback
|
Recording mode
|
Manual>Alarm>Dynamic Detection>Timing
|
|
|
||||
|
|
Local payback
|
8*1080P
|
|
|
||||
|
|
Search mode
|
Search by Time/Calendar/Event/Channel
|
|
|
||||
|
|
Record storage
|
HDD、Network
|
|
|
||||
|
|
Backup mode
|
Network backup, USB hard disk, USB burner, SATA burner
|
|
|
||||
|
External interface
|
Video output
|
1ch VGA
|
|
|
||||
|
|
Audio I/O
|
0/0
|
|
|
||||
|
|
Alarm I/O
|
0/0
|
|
|
||||
|
|
Network interface
|
1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI
|
|
|
||||
|
|
USB interface
|
2*USB2.0 ports
|
|
|
||||
|
|
HDD
|
1* SATA(Up to 8TB for each disk)
|
|
|
||||
|
|
ESATA
|
No
|
|
|
||||
|
|
Serial interface
|
No
|
|
|
||||
|
Other
|
ONVIF
|
No
|
|
|
||||
|
|
Power supply
|
12V/2A
|
|
|
||||
|
|
Power Consumption
|
<10w(Without HDD)
|
|
|
||||
|
|
Work environment
|
Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp
|
|
|
||||
|
WiFi Camera Specification
|
Dimension
|
254mm*215mm*42mm
|
|
|
||||
|
|
|
|
|
|
||||
|
To configure
|
Model
|
ND-699HE-XMW(Z-8)
|
|
|
||||
|
|
Processor + sensor
|
HI3516EV100+SC2235P 1/3" Progressive Scan Sensor
|
|
|
||||
|
|
Low illumination
|
Color: 0.1 Lux; B/W: 0.01 Lux
|
|
|
||||
|
|
Effective pixel
|
1080P
|
|
|
||||
|
|
Lens
|
lens 3.6MM
|
|
|
||||
|
|
Infrared lamp
|
3pcs X ￠10 Lamp beads
|
|
|
||||
|
|
Infrared distance
|
20~30 m
|
|
|
||||
|
|
Day&nigh
|
IR cut filter with auto switch
|
|
|
||||
|
General
|
setting
|
Saturation, brightness and contrast ; are adjustable through IE browser or client software.
|
|
|
||||
|
|
Video compression
|
H.265+
|
|
|
||||
|
|
temperature
|
10℃-＋60℃
|
|
|
||||
|
|
humidity
|
10%-90% RH
|
|
|
||||
|
|
Power supply
|
DC12V 1A
|
|
|
||||
|
|
Consumption
|
MAX 6W
|
|
|
||||
|
|
Waterproof grade
|
IP66
|
|
|
||||
Wireless NVR
* 8channel 1080P wireless Network video recorder
The packing acessories:
* 8CH 1080P WiFi NVR (not HDD) X 1 * WiFi 1080P Cameras X 8 * 1m Network line X1 * DC 12V 2A Power adapter X1 * DC 12V 1A Power adapter X8 * USB Mouse X 1 * User Manual X1 * Screw bag X8
* Built-in WIFI Module with high-performance and high stability
* Automatically connection between NVR and IPC
* Main ports -- 1
*SATA port, up to 4TB, 1* USB2.0 port, 1*VGA, * Support video preview/recording/playback/USB backup
* Support the mixed use of wireless and wire, support difference scene.
NVR DOES NOT INCLUDE HDD HARD DRIVE
A reference chart for HDD choosing, the recording days are estimated, not precise. The higher video quality the more space it needs.
NVR DOES NOT INCLUDE HDD HARD DRIVE
A reference chart for HDD choosing, the recording days are estimated, not precise. The higher video quality the more space it needs.
The packing acessories:
* 8CH 1080P WiFi NVR (not HDD) X 1 * WiFi 1080P Cameras X 8 * 1m Network line X1 * DC 12V 2A Power adapter X1 * DC 12V 1A Power adapter X8 * USB Mouse X 1 * User Manual X1 * Screw bag X8
Product Usage
EASY INSTALL AND CONNECT & True Plug & Play and Auto-Pair :
The IP cameras have been pre-matched to the NVR prior to chipping. No need to run video cable, Actual Plug and Play, Just need to connect the NVR and IP cameras with Power Supply. (Cameras are not cover battery)
Wireless Camera is different from Wire-free camera, the power cable is still required to get electricity for 24/ 7 surveillance purposes. Wireless means that there is no video cable between cameras and NVR, easy to install.
Download App ""XMeye"" into your Phone from Android Google Play or Apple App store; With the ability to see all the cameras live from anywhere in the world, peace of mind is always at your fingertips. "
You can view video remotely anywhere with your Phone, Laptop, pad or PC once cameras are set up. The app lets you group multiple
systems to view up to 4 cameras simultaneously anywhere anytime. 8 Channel expandable system, comes with 4 IP cameras. You can add 4 more IP cameras as needed.
You can view video remotely anywhere with your Phone, Laptop, pad or PC once cameras are set up. The app lets you group multiple
systems to view up to 4 cameras simultaneously anywhere anytime. 8 Channel expandable system, comes with 4 IP cameras. You can add 4 more IP cameras as needed.
T
here is wireless signal between camera and nvr, no need internet for the products.
The Wifi signal can penetrate two walls(around 30 meters).and the distance is up to 50 meters( no obstacle).
IP66 Weatherproof:
IP66 Super Waterproof Grade and Dustproof,
Durable Outdoor Weatherproof Casing no Matter Windy or Raining.
Install the Cameras Outdoor or Indoor to Keep your Home or Business Safe.
Note：Power adapter is not waterproof
Day and Night Vision：
The IP-66 weather-proof metal bullet camera featuring 3.6mm LEDs with IR-CUT function, 98ft Night Vision range.
The camera's infrared mode is automatically activated in low lighting conditions. It can clearly monitor everything even at night.
The IP-66 weather-proof metal bullet camera featuring 3.6mm LEDs with IR-CUT function, 98ft Night Vision range.
The camera's infrared mode is automatically activated in low lighting conditions. It can clearly monitor everything even at night.
Motion detection:
There are multiple alarm detection and notification methods.
Support Motion Detection,Camera lens was covered Alarm detection method. Support Buzzer,Email and APP push notification methods.
Support Motion Detection,Camera lens was covered Alarm detection method. Support Buzzer,Email and APP push notification methods.
Company Introduction
Our Services & Strength
We has become a production, marketing, services companies in one entity Our main products are: Smart Home Cameras,Wirelss IP Cameras, outdoor Bullet Cameras, Video Doorbell bell Cameras, CCTV Cameras; battery Cameras, 4G,Solar Cameras.We have 200 employees and 3500 square meters of factory in Shenzhen.There are 12 branches . We provide OEM,ODM custom service for customers all over the world, our products have been exported to many countries, mainly in North America, Europe and Southeast Asia, of course, we attend multi-security exhibitions every year to learn about newer technologies, so we can meet different customsers needs.
Related Products
Packing&Shipping
Package size:
1pcs:
380*310*310 ; 5.3KG
2pcs/CTN:
370*310*570; 11.4KG
