Quick Details
-
Product Name:
-
tv lift
-
Material:
-
cold Rolled Steel
-
Type:
-
hidden into ceiling tv lift
-
Suitable for:
-
32-55 inch tv
-
Product Size:
-
245(H)*520(W)*700(D)mm
-
Bracket thickness:
-
5mm
-
Loading capacity:
-
50KG
-
Flip Angle:
-
0~102°
-
VESA hole:
-
540*400mm
-
Control Way:
-
Remote control /switch
Quick Details
-
Brand Name:
-
BNT
-
Model Number:
-
TCL-2
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
tv lift
-
Material:
-
cold Rolled Steel
-
Type:
-
hidden into ceiling tv lift
-
Suitable for:
-
32-55 inch tv
-
Product Size:
-
245(H)*520(W)*700(D)mm
-
Bracket thickness:
-
5mm
-
Loading capacity:
-
50KG
-
Flip Angle:
-
0~102°
-
VESA hole:
-
540*400mm
-
Control Way:
-
Remote control /switch

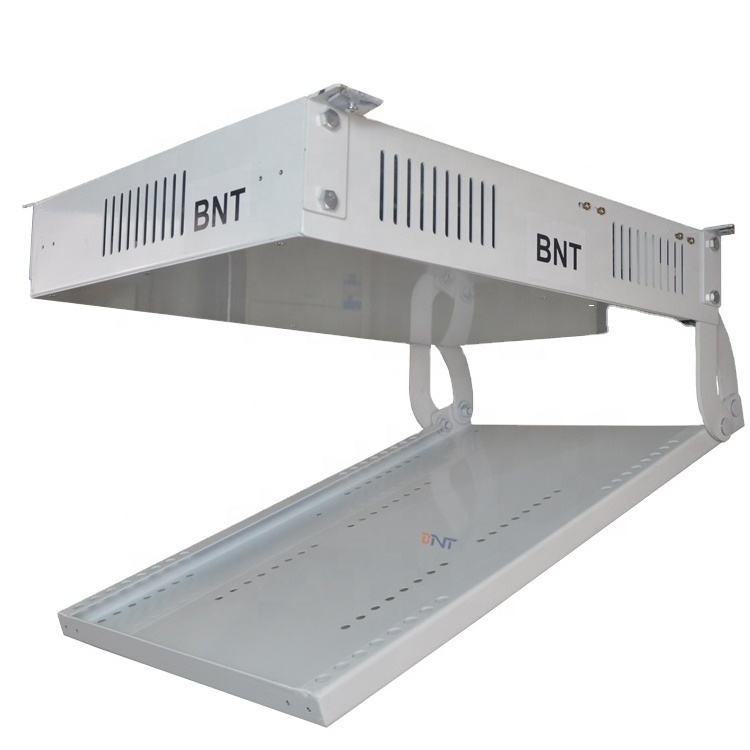

Living room used 55 inch mtoroized hidden into ceiling tv lift
Introduction:
TCL-2 is the automatic flip down ceiling tv mount lift for ceiling mounting.It is deisgned as a hidden equipment for mounting plasma TV form 32 inch to 55 inch. With the tubular motor mechanism, the mounted TV
can automatically flip up and down to 105 degree max.Universal mount panel can match form different brands of 32 inch to 55 inch
plasma
TV, 50KG big loading capacity by using 5MM thickness good quality flipping bracket.
It is widely use on office, hotel, and hospital and smart home application.
Selling point:
1 .Motorized ceiling TV lift with high quality tubular motor
2. wireless remote control and surface switch control the TV flip up and down, optional for Up, Stop, and Down, easy to operate
3. Max flip up angle 107 degree
4. 50kgs max support weight, could load all brands plasma TV from 32 to 55 inch smoothly.
5. Contructed with cold rolled steel material,insure the TV stable and safe during lifting up or down.
6. Good quality wood case packing
Detailed Parameter:
| Product Name | tv lift |
| Model No. | TCL-2 |
| Color | White |
| Material | Cold Rolled Steel |
| Suitable tv Size | 32-55 inch |
| Product Size | 245(H)*520(W)*700(D)mm |
| Case Size | 105(H)*450(W)*620(D)mm |
| Panel size | 30(H)*430(W)*700(D)mm |
| Bracket thickness | 5mm |
| VESA hole | 540*400mm |
| Loading capacity | 50kgs |
| Control Way | Remote control /switch |
| Flip Angle | 0~105° |
