Quick Details
-
Model Number:
-
Storage Tank
-
Dimension(L*W*H):
-
Customer'demand
-
Weight:
-
1-10t
-
Warranty:
-
One Year
-
Certification:
-
ISO
-
Material:
-
fiberglass steel
-
Name:
-
PP storage tank
-
Application:
-
Industry
-
Color:
-
White
-
Test pressure:
-
0-1Mpa
-
Type:
-
Fixed
-
Medium:
-
Ferric Chloride 40% Nitric acid Sulfuric acid
-
Usage:
-
chemical liquid storage
-
Item:
-
Liquid Cryogenic Storage Tank
-
manufacture:
-
One-time winding molding
Quick Details
-
Capacity:
-
1000-100000L
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUQIANG
-
Model Number:
-
Storage Tank
-
Dimension(L*W*H):
-
Customer'demand
-
Weight:
-
1-10t
-
Warranty:
-
One Year
-
Certification:
-
ISO
-
Material:
-
fiberglass steel
-
Name:
-
PP storage tank
-
Application:
-
Industry
-
Color:
-
White
-
Test pressure:
-
0-1Mpa
-
Type:
-
Fixed
-
Medium:
-
Ferric Chloride 40% Nitric acid Sulfuric acid
-
Usage:
-
chemical liquid storage
-
Item:
-
Liquid Cryogenic Storage Tank
-
manufacture:
-
One-time winding molding
Ferric Chloride 40% Nitric acid Sulfuric acid PP storage tank
PP storage tank store Ferric Chloride 40% Nitric acid Sulfuric acid . PPH storage tank pure polyethylene (linear low density polyethylene LLDPE, high density polyethylene (HDPE) as raw material, plastic process of the use of special shape as a whole. Have no welding, no leakage, non-toxic, light weight, anti-aging, impact resistance, corrosion resistance, long service life, etc. A integrated entirety, corrosion resistance, long life advantages.PP storage tank can be stored and the vast majority of inorganic acid, alkali, salt solution and most organic solvents, can partly replace material such as stainless steel, titanium, nickel, high alloy steel, the product conforms to storage and transportation of dangerous goods regulations, ideal is to store the chemical etching solution, clean solution storage containers. Sulfuric acid PP storage tank conforms to the national health standards, food-grade solution alternative stainless steel container shipment.
The following is the filling mediam of the PP storage tank .
Filling mediam | concentration(%) | Temperature | |||
20 | 50 | 65 | 100 | ||
Nitric acid | <10 | √ | √ | √ | √ |
10-25 | √ | √ | √ | √/× | |
30 |
√ |
√/× | √ | ||
35 | √/× | ||||
40-50 | √/× | × | × | ||
50-60 | √/× | × | × | ||
58-70 | × | × | |||
100 | × | ||||
Hydrochloric acid | <36 | √ | √ | √ | √ |
√ | √ | √/× | √ | ||
Sulfuric acid | <10 | √ | √ | √ | √ |
<30 | √ | √ | √ | √/× | |
30-60 | √ | √ | √/× | × | |
78-90 | √ | √/× | × | × | |
Sodium hydroxide | 0-70 | √ | √ | √ | √ |
100 | √ | √ | √ | ||
Sodium hypochlorite | <6 | √ | √/× | × | |
10-20 | √ | × | × | ||
Hydrogen peroxide | <10 | √ | √ | √ | × |
30 | √ | √/× | √/× | × | |
50 | √ | × | × | × | |
90 | √ | × | × | × | |
100 | √ | √ | √ | × | |
phenol | 5 | √ | √ | √ | √ |
10 | √ | √ | √ | × | |
100 | √/× | × | × |
The capacity of PP storage tank can be made from 1000liters to 120000 liters.you can choose the following specifications for your reference.
Capacity m3 | Diameter | L | H | A inlet | B inlet hole | C outlet hole | D vent hole | E 1-2level control hole |
1 | 1000 | 1100 | 1350 | - | 50 | 50 | 25 | 25 |
3 | 1600 | 1200 | 1650 | 400 | 50 | 50 | 25 | 25 |
5 | 1600 | 2250 | 2650 | 400 | 50 | 50 | 25 | 25 |
8 | 2000 | 2200 | 2700 | 400 | 80 | 80 | 25 | 25 |
10 | 2000 | 2800 | 3400 | 500 | 80 | 80 | 25 | 25 |
15 | 2200 | 3550 | 4100 | 500 | 80 | 80 | 50 | 25 |
20 | 2500 | 3600 | 4200 | 500 | 80 | 80 | 50 | 25 |
30 | 2800 | 4400 | 5100 | 500 | 100 | 100 | 50 | 25 |
40 | 3000 | 5100 | 5850 | 500 | 100 | 100 | 50 | 25 |
50 | 3200 | 5600 | 6400 | 500 | 100 | 100 | 50 | 25 |
60 | 3600 | 5250 | 6200 | 500 | 100 | 100 | 50 | 25 |
80 | 4000 | 5650 | 6650 | 600 | 100 | 125 | 80 | 25 |
100 | 4000 | 7300 | 8300 | 600 | 100 | 150 | 80 | 25 |
120 | 4000 | 9000 | 10000 | 600 | 100 | 150 | 80 | 25 |
The advantage of the PP storage tank is following :
(1) the plastic tank of Nitric acid PP storage tank, a forming integral sex is good, no weld, never leakage, strong shock resistance, high tensile strength, anti-oxidation, anti-aging performance is good, accord with standard of health food.
(2) due to the linear low density polyethylene (LLDPE) excellent plastic tanks special structure,performance and service life for more than 15 years.
(3)Compare to other tanks, Nitric acid PP storage tank has a very good chemical resistance, except a few solution can swelling it can almost most resistant material solution.
(4) has the characteristics of internal and external anti-corrosion plastic tank, can be placed in high corrosive environment.
(5)For Nitric acid PP storage tank, General conditions of use for the normal temperature, atmospheric pressure storage tank; Special circumstances, the conditions of use for storage tank temperature is less than 70 ℃ and the hydraulic pressure is less than 1 kg/cm2.
(6)Plastic anti-corrosion tank in large size large capacity in the large volume of products has the very big advantage, despite the large volume, but should remain a forming the characteristics of integrity, this is the place of other storage technology can not reach.
(7) PP storage tank compared with the traditional anti-corrosion tank, low price, high cost performance.
Touch of tank welding unit with PPH screw extrusion is making PPH granular material processed into tank molding process. System USES the PPH particles melt extrusion steel mold again after winding into tanks of the process.

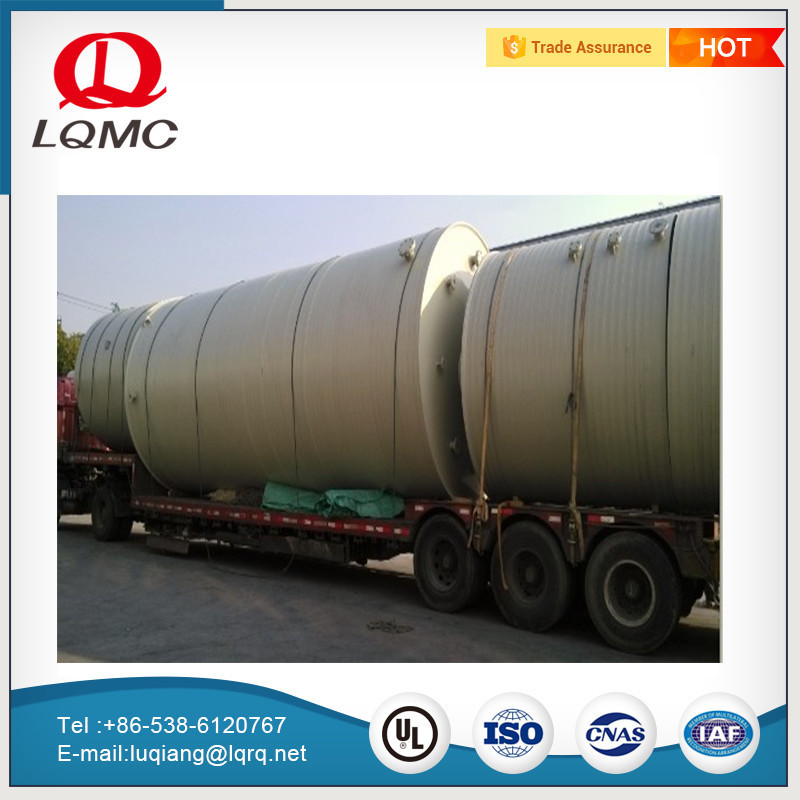

We manufacture so many PP storage tank for store Ferric Chloride 40% Nitric acid Sulfuric acid,following is the picture we manufactured.
Luqiang Energy Equipment co., LTD, founded in 2004, the registered capital of 50 million RMB, the company is located at the foot of mount tai,Shandong province, Tai’an City,which is on the north of China.you can take airplane to Jinan Yaoqiang international airport ,or take the high-speed train from Beijing directly arrivel here,the traffic is very convenient.
CERTIFICAION
After recent years of accumulation of our company in the mobile gas station, oil storage tank and Sulfuric acid PP storage tank etc. These areas have achieved on the domestic and international professional certification, like UL certification and ISO certification the company in order to further expand overseas market s,This year is going to get the ASME, CE and other relevant international certification.
Clients visiting:
Every year so many clietns visit to our factory
WHY CHOOSE US :
1 We have the professional design team,we can design and manufacture the oil storage tank as customer need.
We accept any drawing or sample to manufacture the oil storage tank.
2.We have 25years professional manufacturing experience in storage tanks;
We have professional production workers and production equipment .
3. We have g lobal after-sale service system ,it can offer the Comprehensive technical support and after-sales service in a timely manner .
4. We get the ISO certifications and UL certifications,in this year we will get ASME certifiaction and CE certification.
5. We have widely market all over the world ,our product have export to Singapore,India,Australia,Japan,Nigeria, Angola,Djibouti,Ecuador,South Africa.
