Quick Details
-
Brand Name:
-
Schneider
-
Model Number:
-
DF101
-
Max. Current:
-
32A
-
Poles description:
-
1P
-
[Ie] rated operational current:
-
32 A at 400 V AC
-
Fuse size:
-
10 x 38 mm
-
Compatibility co:
-
DF10
-
Pollution degree:
-
3
-
IP degree of protection:
-
IP20
-
Depth:
-
61 mm
-
Height:
-
79.5 mm
-
Width:
-
17.5 mm
-
Net weight:
-
0.042 kg
-
Certification:
-
IEC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
690VAC
-
Place of Origin:
-
France
-
Brand Name:
-
Schneider
-
Model Number:
-
DF101
-
Max. Current:
-
32A
-
Poles description:
-
1P
-
[Ie] rated operational current:
-
32 A at 400 V AC
-
Fuse size:
-
10 x 38 mm
-
Compatibility co:
-
DF10
-
Pollution degree:
-
3
-
IP degree of protection:
-
IP20
-
Depth:
-
61 mm
-
Height:
-
79.5 mm
-
Width:
-
17.5 mm
-
Net weight:
-
0.042 kg
-
Certification:
-
IEC

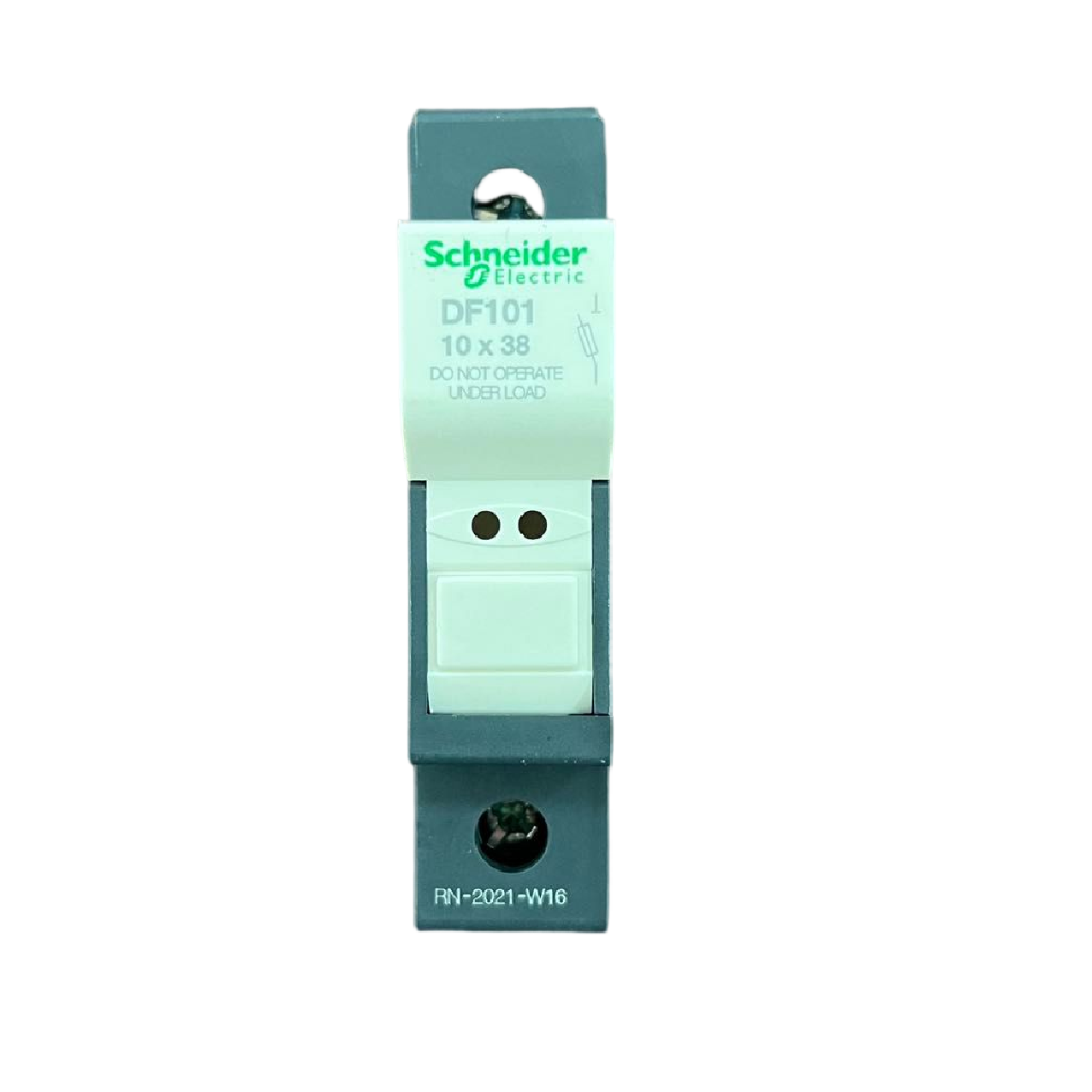

Schneider Fuse Carries DF
Series,
1P, 32A, fuse size 10x38mm,
DF101
Product Description
>> What are the main features of
Schneider fuse carrier DF101?
|
Main
|
|
|
Range
|
TeSys
|
|
Product name
|
TeSys DF
|
|
Product or component type
|
Fuse carrier
|
|
Device short name
|
DF10
|
|
Product compatibility
|
DF2CA fuse cartridge
DF2CN fuse cartridge
|
|
Poles description
|
1P
|
|
Fuse size
|
10 x 38 mm
|
|
Fuse type
|
, aM
, gG
|
|
Control type
|
Toggle padlockable
|
|
Utilisation category
|
AC-20B conforming to IEC 60947-3
DC-20B conforming to IEC 60947-3
|
|
[Ue] rated operational voltage
|
690 V AC
690 V DC
|
|
[Ie] rated operational current
|
32 A at 400 V AC
|
|
[Ith] conventional free air thermal current
|
32 A 20 °C
|
|
[Ui] rated insulation voltage
|
690 V AC
|
|
[Uimp] rated impulse withstand voltage
|
6 kV
|
|
Overvoltage category
|
III
|
|
Short-circuit withstand
|
120 kA 400 V conforming to IEC 60947-3
120 kA 500 V conforming to IEC 60947-3
|
|
Power dissipation in W
|
3 W maximum power dissipation by fuse
|
>> What condition of the environment could Schneider
fuse carrier
DF101
?
|
Environment
|
|
|
Ambient air temperature for storage
|
-40…70 °C
|
|
Ambient air temperature for operation
|
-40…70 °C with derating above 20°C
|
|
Operating altitude
|
0...2000 m
|
|
IP degree of protection
|
IP20
|
|
Pollution degree
|
3
|
|
Fire resistance
|
960 °C conforming to IEC 60695-2-1
|
|
Compatibility code
|
DF10
|
|
Standards
|
EN/IEC 60947-3
EN/IEC 60269-2
UL 4248-1
CSA C22.2 No 4248-1
EN 45545-2: R22 HL2
|
|
Product certifications
|
IEC
UL recognized
CSA
CCC
EAC
DNV-GL
|
|
Mounting support
|
35 mm symmetrical DIN rail
|
|
Mounting position
|
Vertical (tolerance: +/- 23°)
|
|
Connections - terminals
|
Screw clamp terminals 1 cable(s) 1…16 mm²rigid
Screw clamp terminals 2 cable(s) 1…6 mm²rigid
Screw clamp terminals 1 cable(s) 1…16 mm²flexible with or without
Screw clamp terminals 2 cable(s) 1…6 mm²flexible with or without
|
|
Tightening torque
|
2.2 N.m - with screwdriver PZ2
2.2 N.m - with screwdriver flat Ø 5.5 mm
|
|
Quantity per set
|
Set of 12
|
>> What is the dimension of Schneider
fuse carrier DF101
?
|
Dimension
|
|
|
Depth
|
61 mm
|
|
Height
|
79.5 mm
|
|
Width
|
17.5 mm
|
|
Net weight
|
0.042 kg
|
