Quick Details
-
Frequency Response (±3 dB):
-
55 Hz - 20 KHz
-
Low Frequency Driver:
-
1* 12 inch Neodymium woofer
-
High Frequency Driver:
-
1* 3 inch Neodymium compression driver
-
Sensitivity (1w/1m):
-
102 dB
-
Long-term SPL:
-
127 dB
-
Nominal Impedance:
-
8 ohms
-
Powered Version:
-
Sanway Customized Powered Module D1-450
-
Enclosure Material:
-
18mm plywood
-
Dimensions (H x W x D):
-
540mm x 410mm x 389mm
-
Net weight:
-
21kg / 24kg powered versioin
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sanway
-
Model Number:
-
L12
-
Frequency Response (±3 dB):
-
55 Hz - 20 KHz
-
Low Frequency Driver:
-
1* 12 inch Neodymium woofer
-
High Frequency Driver:
-
1* 3 inch Neodymium compression driver
-
Sensitivity (1w/1m):
-
102 dB
-
Long-term SPL:
-
127 dB
-
Nominal Impedance:
-
8 ohms
-
Powered Version:
-
Sanway Customized Powered Module D1-450
-
Enclosure Material:
-
18mm plywood
-
Dimensions (H x W x D):
-
540mm x 410mm x 389mm
-
Net weight:
-
21kg / 24kg powered versioin

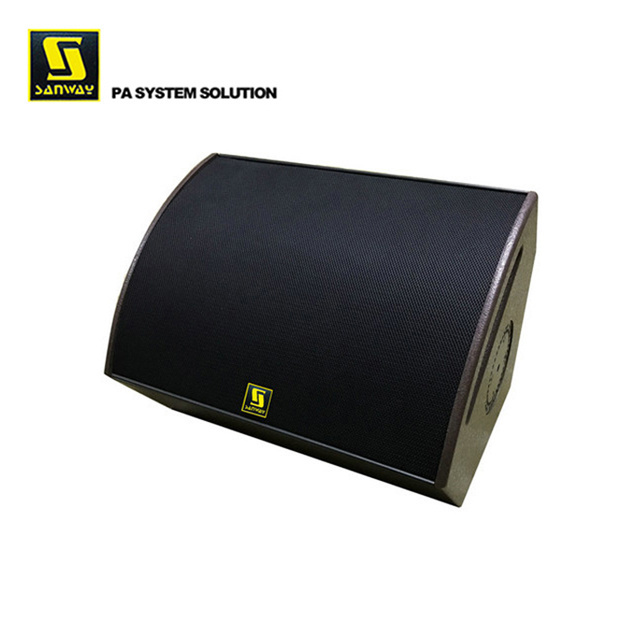

L12 Single 12" inch Active Studio Monitor Speaker Empty Box
Description
The L-12 passive cabinet is the mid sized model of the XT coaxial series and has an operating frequency bandwidth of 55 Hz to 20 kHz. The L-12 enclosure contains a 3’’ diaphragm compression driver coaxially loaded by a 12’’ low frequency transducer mounted in a bass-reflex tuned enclosure. In passive configuration, the L-12 on board crossover network uses proprietary third order filters The linearization and protection of the transducers is defined by the drive parameters contained in the amplified controllers.
Key Features
1. Plug and play for fast set-up and reduced tuning time
2. Integrated rigging system for distributed SR applications
3. Sleek design, durable construction, extended longevity
4. Ultimate sonic performance, clarity and precision
5. Point source radiation with excellent off-axis performance
6. FOH, fill, monitor versatility for reduced inventory
Application
Live performance systems.
Mobile and fixed DJ systems.
Sound system rental and tour.
Permanent installations.
Outdoor or indoor hug, middle, small events
Other entertainment places
Specification
|
Model |
L-12 12” Coaxial Passive or Powered Speaker |
|
Frequency Response (±3 dB) |
55 Hz - 20 KHz |
|
Sensitivity (1w/1m) |
102 dB |
|
Long-term SPL |
127 dB |
|
Maximum SPL |
133 dB |
|
Nominal Impedance |
8ohms |
|
Power rated |
380 watts |
|
Peak Power handling |
760 watts |
|
Nominal Dispersion |
90°Axi-symmetric |
|
Powered Version |
Sanway Customized Powered Module D1-450 |
|
Dimensions (H x W x D) |
540mm x 410mm x 389mm |
|
Enclosure Material |
18mm plywood |
|
Surface Finished |
Grey or White color selectable |
|
Grille |
black perforated steel framed mounted Grey or |
|
white acoustic foam |
|
|
Net weight |
21kg / 24kg powered versioin |
|
Low Frequency Driver |
1* 12 inch Neodymium woofer |
|
High Frequency Driver |
1* 3 inch Neodymium compression driver |
|
Input Connectors |
Neutrik NL4X2 |
