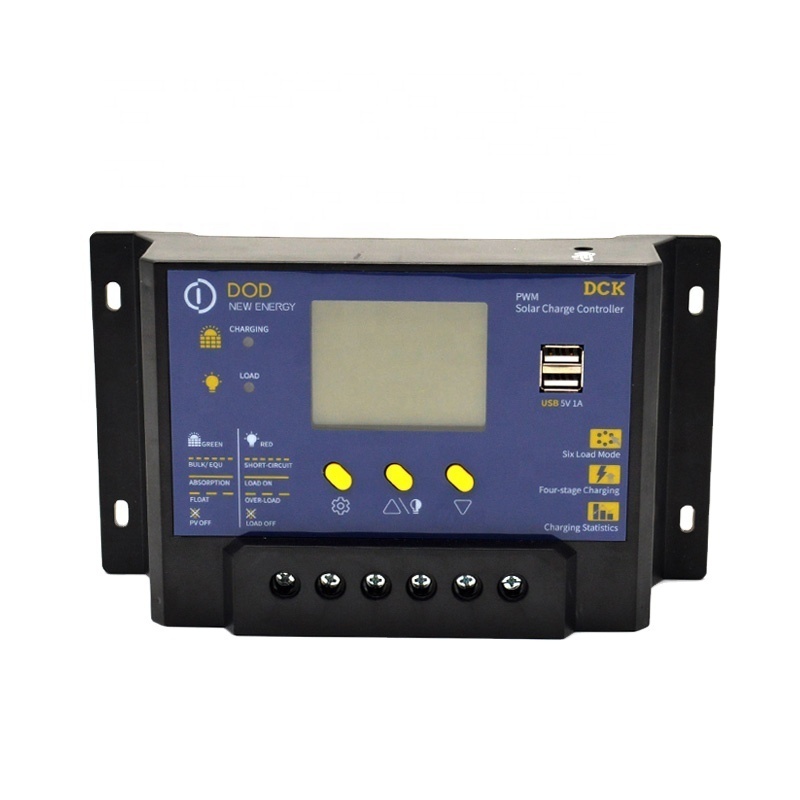

48v lithium lifepo4 pwm solar power charge controller with Timer and Lighting, pwm regulator for solar battery charger 12v 40a

48v lithium lifepo4 pwm solar power charge controller with Timer and Lighting, pwm regulator for solar battery charger 12v 40a

FOB Reference Price: Get Latest Price

≥50 Pieces

US $30.57

Free Inquiry

Customized Request

Explore More Products

12v/24v/48v Auto 30a 40a Mppt Water Proof Solar System Mppt Solar Charge Controller

$ 70.61

Battery Charger Battery Charger Converter

Household Solar Energy System Ac 220v To Dc 12v 10a Car Solar Battery Charger

$ 7.22

Outdoor Power Supply 12v 24v To Ac 120v 220v Solar Battery Car Charger Inverter

$ 14.45

High Frequency Inverter Led Display Mppt Solar 96v 50ah 60ah Battery Charge Controller

$ 147.78

Product Details

{{item.text}}

Quick Details

Brand Name:: DOD

Model Number:: DCK-1240

Work Time (h):: 24

Max PV Power:: 2880W

Max PV Voltage:: 55V/ 100V

Certificate:: CE ROHS

Warranty:: 1 YEAR

Charge mode:: 4-Stage PWM Charge

Display:: Large LCD + LED

Battery type:: Sealed Gel AGM Flooded Lithium

Control Mode:: Intelligent Control Pwm Solar Controller

Load Working Mode:: 24H/Light Control/Time Control/manual/test

Feature:: High Efficiency Charging Method

Certification:: CE RoHS ISO9001

OEM/ODM:: Available

Keywords:: Solar Charger Controller PWM

Quick Details

Type:: PWM

Application:: Charger Controller, Solar Working Station, Lighting Controller, Solar System Controller

Place of Origin:: Sichuan, China

Brand Name:: DOD

Model Number:: DCK-1240

Work Time (h):: 24

Max PV Power:: 2880W

Max PV Voltage:: 55V/ 100V

Certificate:: CE ROHS

Warranty:: 1 YEAR

Charge mode:: 4-Stage PWM Charge

Display:: Large LCD + LED

Battery type:: Sealed Gel AGM Flooded Lithium

Control Mode:: Intelligent Control Pwm Solar Controller

Load Working Mode:: 24H/Light Control/Time Control/manual/test

Feature:: High Efficiency Charging Method

Certification:: CE RoHS ISO9001

OEM/ODM:: Available

Keywords:: Solar Charger Controller PWM

50a 48v lithium lifepo4 pwm solar power charge controller with Timer and Lighting pwm regulator for battery charger 12v 40a

Why Choose US ?

1. Factory Directly : Over 20 different kinds of controller for choose ,Price is good ,Quality can be controlled.

2. Certificate : Our charge controller got SGS testing certificate ,CE ,ROHS as well

3. OEM and cooperating with an famous brand in Europe. We have pass strict factory inspection Audit by third party institution and client auditor. During the cooperation with famous brand client, we know what customer want and we know how to make 100% quality control.
4. We can customize specification like current ,voltage ,max input voltage etc as client request ,to supply some certain function and place.

5. sample is available .
6. Fast Delivery , Below 5000 pieces controller delivery in 2 weeks.
7. Trade assurance supplier , quality and on time shipment guaranteed.

Details Images

Product Presentation

Hilight Functions :

* Max solar input : 55V (12/24V) ; 1 00V (48V)

* 4 stage charging : Bulk - Absorption - Float +

Equalize

* Suitable for 4 Battery types : AGM , Gel , Wet ,

Lifepo4

* Time& light Control

* Intelligent 3 stage over temperature protection

* Self fault detect and fault reminding

* Charging power recording

3 stage Time and Power Control

* set the load working time is 3 period during a night , each period could be from 0-23 hours .

* set different output power in these 3 period working time , output power could be from 0-100% .

Full Protection:

* Over temperature protection

* Over voltage protection

* Low voltage protection

* Over load protection

* Short circuit protection

* Reverse polarity connection protection

High Quality Material :

* high definition LCD display ,help you to know the whole system working state . you can adjust the parameters by yourself according to different using condition .

* using superior ABS material hull , with impact resistance, high flash point, Anti-Aging characters , which improved the controller using life and security .

Large Terminal :

* using upgraded thick bottom plate , and perfect design of the mosfet , which makes the radiating improved 30% efficiency , ensure the controller working with its best performace

* Large connection terminal ,to ensure stand enough current . very easy for cable connection .also can low down the voltage drop , decrease the wastage .

Product Paramenters

Model	DCK1240	DCK1250	DCK1260	DCK4850	DCK4860
Battery Voltage	12V/24V Auto Select					48V
Charge & Load Current	40A	50A	60A	50A	60A
Charge mode	PWM, Time and Lighting Control
Maximum solar voltage	55V					100V
Maximum output power	480W/960W	600W/1200W	720W/1440W	2400W	2880W
Protections	Reverse polarity connection of the solar panels; Reverse polarity connection of the battery; Over-charge ; Over-discharge; Over-load ; Over-temperature; Short-circuit
Overload Protection	shut down after 60s in case of 110%-130% load , shut down after 5s in case of 130%-160% load , Short circuit: shut immediately
Temperature Protection	1. temp up to 85℃: controller will lower the PV input current in order to lower the temp. no reminding on LCD display. 2. temp >90℃, controller will reduce the PV input current to zero,the load will be switched off and a high temp reminging icon will show on the LCD. 3. After the temp has decreased to less than 82℃, controller will back to normal work .
Self-consumption	<10mA
USB	5V 1A
Temperature compensation	Yes
Operating temperature	-20°C to +50°C (full load)
Humidity range	≤95% (N.C.)
Dimension	1508535mm
Weight	500g

Battery Charging Parameters

Battery Mode

B01

B02

B03

B04

B05

Battery Type

AGM

GEL

WET

LIFEPO4

Battery Voltage

12/24V/48V

12.8V

25.6V

Absorption

14.4/28.8V/57.6V

14.2/28.4V/56.8V

14.6/29.2V/58.4V

14.2V

28.4V

Float

13.7/27.4V/54.8V

13.35V

26.7V

Equalize

None

14.8/29.6V/59.2V

None

Equalize Duration

None

1time every 2 months

None

Low Volt. Disconnect

11.2/22.4V/44.8V

11.2V

22.4V

Low Volt. Disconnect
Setting Range

10.5V-12.0V

21.0V-24.0V

42.0V-48.0V

10.5V-12.0V

21.0V-24.0V

42.0V-48.0V

10.5V-12.0V

21.0V-24.0V

42.0V-48.0V

10.5V-12.0V

21.0V-24.0V

Low Volt. Reconnect

12.6/25.2V/50.4V

12.6V

25.2V

ow Volt. Reconnect
Setting Range

12.0V-13.5V

24.0V-27.0V

48.0V-54.0V

12.0V-13.5V

24.0V-27.0V

48.0V-54.0V

12.0V-13.5V

24.0V-27.0V

48.0V-54.0V

12.0V-13.5V

24.0V-27.0V

Certificate

Related Products

Company Introduction

DOD New energy is high technology company which specialized in solar power system,wind power system and related products. Main products contains solar charge controller,wind generator,solar panel,power inverter ,battery etc and most export to Europe and America. Till now we have got ISO, TUV, CE, ROHS,IEC,SGS,UL Approval.
To supply the suitable and high efficient power system is DOD New Energy ‘s Goal. We will use our supply chain, professional knowledge and experience to help our customer to save Souring time and costs.

Packing&Shipping

FAQ

1.How to buy a sample ?
Customer need to choose the controller model ,tell us your battery voltage and Ampere you need , then we will suggest you a suitable controller. Delivery time will be 5-10 days below 10 pieces sample. Samples will delivery be International express like FedEx ,UPS,DHL . Pls let us know your shipping address to confirm the shippingcosts.

2. What is the payment terms ?
For below 1000 USD, we accept Paypal ,Bank T/T .
For Above 1000 USD, We Accept Bank T/T, Irrevocable L/C.
We welcome client to place order through Alibaba Trade Assurance . Trade Assurance can give customer 100% on-time shipment protection ,100% Product quality protection,100% Payment protection . Our Company Trade Assurance amount limit is over 50000 USD. Customer can place order without worried.

3. What is controller warranty ?
All our controller are warranty is 12 months . Within 1 year if found defective, we offer free new controller for replacement.

for more products , you can also check our website : www.dodelectric.com
