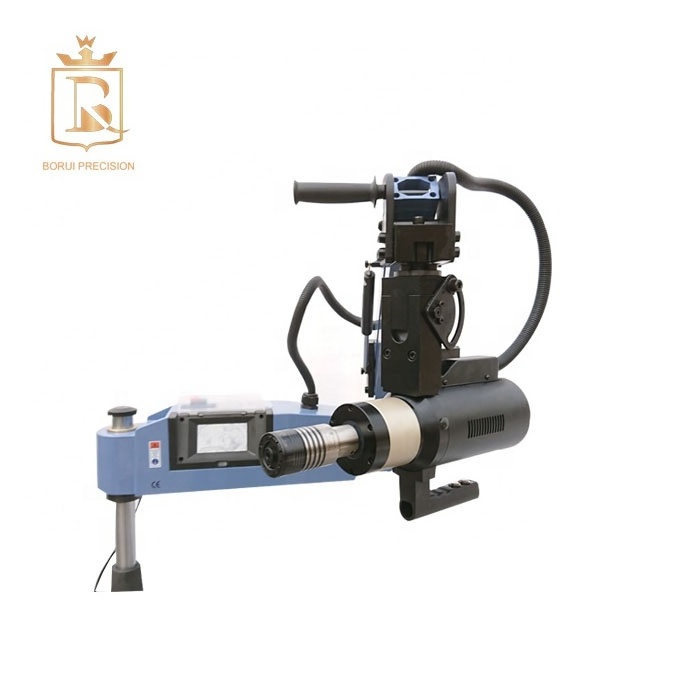

220V power servo motor tap machine electric tapping machine M6-36

220V power servo motor tap machine electric tapping machine M6-36

FOB Reference Price: Get Latest Price

≥1 Sets

US $690

≥5 Sets

US $670

≥10 Sets

US $660

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: China

Brand Name:: Borui

Model Number:: M6-36

Voltage:: 220V

Dimension(L*W*H):: 85*77*22

Power (kW):: 1200W

Weight (KG):: 52 KG

Marketing Type:: New Product 2021

Certification:: CE

Quick Details

type:: Radial Drilling Machine

Max. Drilling Dia. (mm):: 2mm

Range of Spindle Speed(r.p.m):: 1 - 156 r.p.m

Place of Origin:: China

Brand Name:: Borui

Model Number:: M6-36

Voltage:: 220V

Dimension(L*W*H):: 85*77*22

Power (kW):: 1200W

Weight (KG):: 52 KG

Marketing Type:: New Product 2021

Certification:: CE

Products Spec

Model No.	M3-M12	M3-M16	M6-M24	M6-M36
Type	Servo Electric Tapping Machine				Servo Electric Tapping Machine
Input Voltage	220V / 50Hz				200V/ 50Hz
Rated Power	600W	600W	1200W	1200W
Tapping Range	M3-12	M3-16	M6-24	M6-36
Connect Head	GT12-B16	GT12-B16	GT24-B18	GT24-B18
Standard collet	M3-12	M3-16	M6-24	M6-36
Collets quantity	6PCS	8pcs	8pcs	11pcs
Direction	Universal/Horizontal/360° universal
Horizontal Working Area	1045mm	1045mmmm	1180mm	1180mm
Vertical working Area	330mm	330mm	370mm	370mm
Max Speed	1000RPM	312RPM	200RPM	156RPM
Non -standard OEM	Available OEM Service
Weight	30KG	32KG	48KG	50KG

FEATURES AT A GLANCE

* High speed, fast speed
* Enhanced reducer with durable gears.
* Imported servo motor with strong output force.
* Enhanced reducer with durable gears.
* Intelligent control system stable and reliable program.
* Safety torque collet,overload protection device.
* Deep-hole Tapping Hierarchically.Flexible cutting state,Save Cost.
* Re-positioning fast, Machining speed,High accuracy thread, and increased production capacity.

Product Overview

M3-16 electric tapping macine Parameters

* Tapping angle: Universal.
* Rotation Speed: 0-312r/min(Stepless Speed Regulation)
* Tapping Capacity
Steel: M3-M16
Aluminum: M3-M16
Stainless steel: M3-M16
* Working Area Horizontal: 1100mm(43.3inch)
* Weight: 32KG (108lb.)
* Vertical: 400mm adjustable
* Power/Voltage :600W/220V equipped Power Transformer to 110V

Three Tapping Mode:

1.Manual Tapping

Set the tapping speed and pitch by yourself, and observe the value on the display to reach the depth. Press the return-tap button until it exits completely

2.Auto Tapping

only need to input the tapping speed, return speed,tapping depth, it will tap automatically.It will return when it tap till the set depth

3.Deep Hole Tapping

It is mainly used in deep hole threading. The system intelligently simulates the manual processing method as it advances and retreats in the cycle. while processing and chip removal, to ensure the tapping effect and the life of the tap.

Tapping Machine Applicable Materials:
Aluminum, Copper, A3 steel, 45 steel, Cast Iron, Pig Iron, Q235, S136, mold steel, 718H, 40Cr, Stainless Steel and other metal materials
