Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
770*430*300MM
-
Weight:
-
25KG
-
Max. Grinding Length:
-
700mm
-
Power:
-
0.37KW
-
Max. Grinding Diameter:
-
680mm
-
Certification:
-
ISO9001
Quick Details
-
Model Number:
-
MC-1H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KUNCHI
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
770*430*300MM
-
Weight:
-
25KG
-
Max. Grinding Length:
-
700mm
-
Power:
-
0.37KW
-
Max. Grinding Diameter:
-
680mm
-
Certification:
-
ISO9001

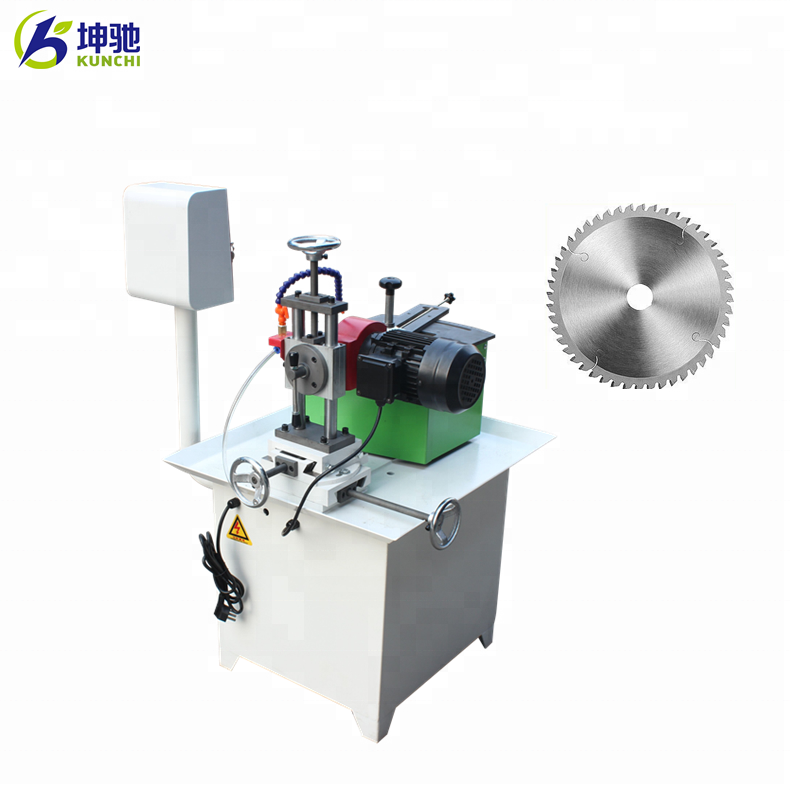

Easy Operation Saw Blade Tooth Grinding Machine / Sharpening Machine
Saw Blade Tooth Grinder / Saw Tooth Sharpener
This machine is specially designed for grinding the teeth of hard alloy saw blades, suitable for grinding various kinds of super hard alloy saw blades.
* Equipped with adjustable circuit supporting plate, which can furthest support the saw saw blade teeth.
* Equipped with locating pin, which can be adjusted to the position according to the diameter and teeth number of the saw blade, the sliding plate can rotate horizontally, which can assure the original grinding angle or can change it.
* The grinding head is equipped with rotating structure with± 20 ° angle, which can grind the saw blade with oblique edge.
Specification of the saw blade grinding machine(Semi-automatic)
|
Name |
Saw blade tooth grinding machine |
|
Model |
MC-1H |
|
Power |
0.37KW/220v/50hz |
|
Rotating speed |
2850rpm |
|
Grinding diameter |
80-700mm |
|
Diameter of inner hole of saw blade accepted |
22/25.4/30mm |
|
Specification of grinding wheel |
125*32*10mm |
|
Adjustable angle of grinding wheel |
± 20 ° |
|
Adjustable angle of saw blade |
Left 20° right 80 ° |
|
Machine size |
770*430*300mm |
|
Weight |
25kg |
Detailed pictures of saw tooth grinder(Semi-automatic)
Specification of the saw blade tooth sharpening machine(Automatic)
|
Name |
Saw blade tooth sharpening machine |
|
Model |
MC-1A |
|
Power |
0.67KW/220v/50hz |
|
Rotating speed |
2800rpm |
|
Grinding diameter |
120-680mm |
|
Pinch range accepted |
9-28mm |
|
Tooth moving speed |
0-55 tooth/min |
|
Machine size |
600*700*1200mm |
|
Weight |
90kg |
Detailed pictures of saw tooth grinder(Automatic)
Spare parts of the saw tooth grinder(Automatic type)
