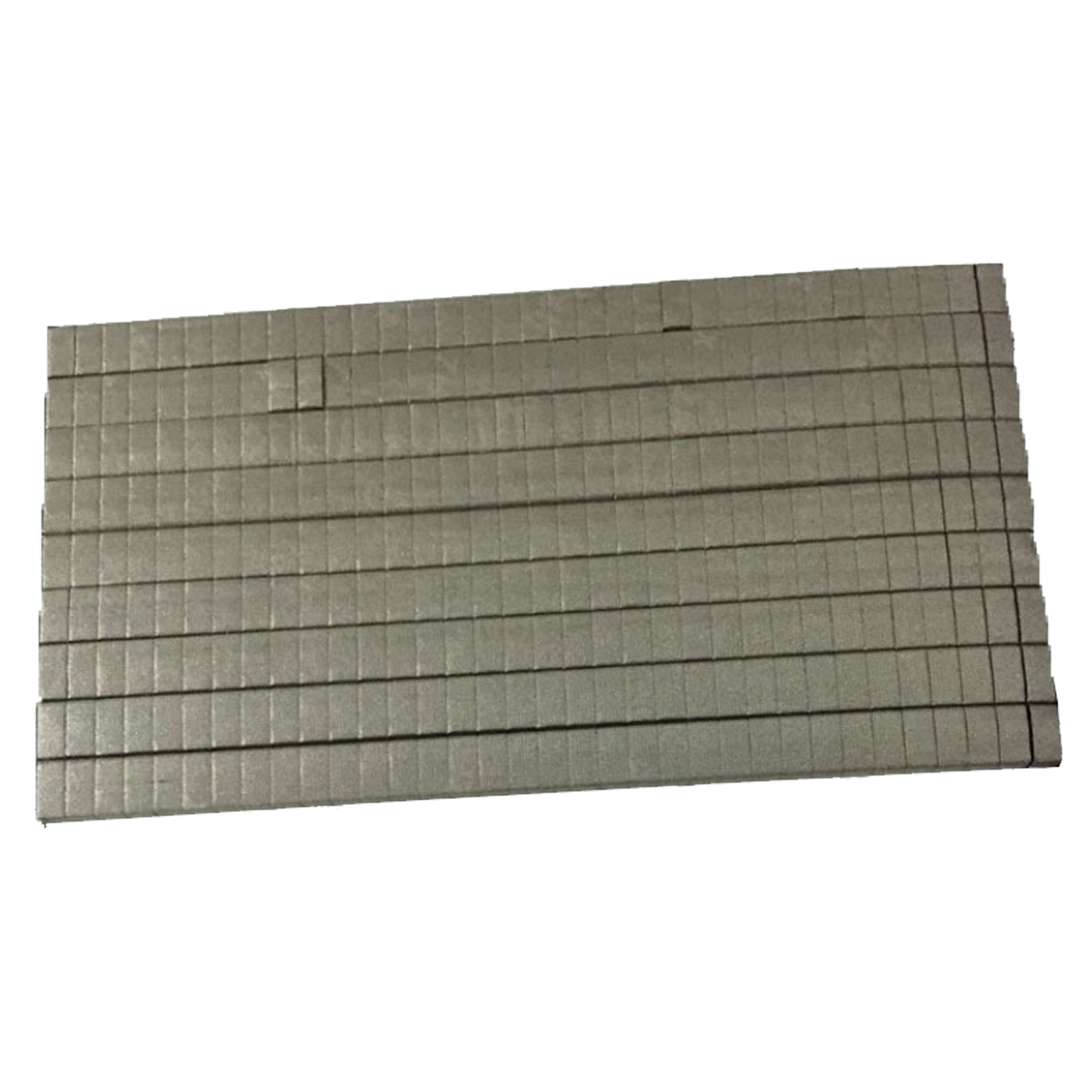

Die Cut Nickel/Copper Plated Electrical Conductive Polyurethane Foam

This Die Cut Nickel/Copper Plated Electrical Conductive Polyurethane Foam is made of polyurethane foam coated with copper and nickel. Compression is 25% to 75%.

The material will return to almost its original height when released. The foam is covered with a layer of conductive polyurethane to protect it from environmental influences and to prevent burrs when cutting. Its conductivity is excellent in all directions (X, Y, and Z). Conductive foam is fire retardant as well as RoHS compliant.

The conductive foam is characterized by:

*Available in thicknesses of 0.5MM~20MM
*Several layers can be joined together for thickness, on request
*Excellent electric conductivity throughout the material
*Excellent electromagnetic shielding effect
*High workability due to adhesion
*Easy die cutting, kiss cutting and slitting
*Size - Sheet type: max 950 x 950 mm (other sizes on request).

Shielding effectiveness 100Mhz - 1GHz
1.5 mm thickness, 80dB - 83dB
2.4mm thickness, 88dB - 104dB
3.5mm thickness, 80dB - 103dB
