Quick Details
-
Lamp Body Material:
-
Aluminum Alloy
-
Lamp Luminous Flux(lm):
-
155LM
-
Input Voltage(V):
-
3.7V
-
Lamp Luminous Efficiency(lm/w):
-
51.67
-
Lifespan (hours):
-
100000
-
Product Weight（kg）:
-
0.18
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CESP
-
Model Number:
-
CES-EX-FL-7623A
-
Power:
-
3W
-
Illuminance:
-
2150 Lux
-
Irradiation distance:
-
185 M
-
Battery capacity:
-
2200 mAh
-
Drop height:
-
2 M
-
Waterproof grade:
-
IP66
-
Light intensity:
-
8600 cd
-
Explosion-proof grade:
-
Ex ib IIC T4 Gb
-
Product size:
-
D35x157mm
-
Certification:
-
CE/ROHS/FCC/Ex
Quick Details
-
Battery Type:
-
AA
-
Use:
-
Industrial
-
Power Source:
-
rechargeable battery
-
Lamp Body Material:
-
Aluminum Alloy
-
Lamp Luminous Flux(lm):
-
155LM
-
Input Voltage(V):
-
3.7V
-
Lamp Luminous Efficiency(lm/w):
-
51.67
-
Lifespan (hours):
-
100000
-
Product Weight（kg）:
-
0.18
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CESP
-
Model Number:
-
CES-EX-FL-7623A
-
Power:
-
3W
-
Illuminance:
-
2150 Lux
-
Irradiation distance:
-
185 M
-
Battery capacity:
-
2200 mAh
-
Drop height:
-
2 M
-
Waterproof grade:
-
IP66
-
Light intensity:
-
8600 cd
-
Explosion-proof grade:
-
Ex ib IIC T4 Gb
-
Product size:
-
D35x157mm
-
Certification:
-
CE/ROHS/FCC/Ex

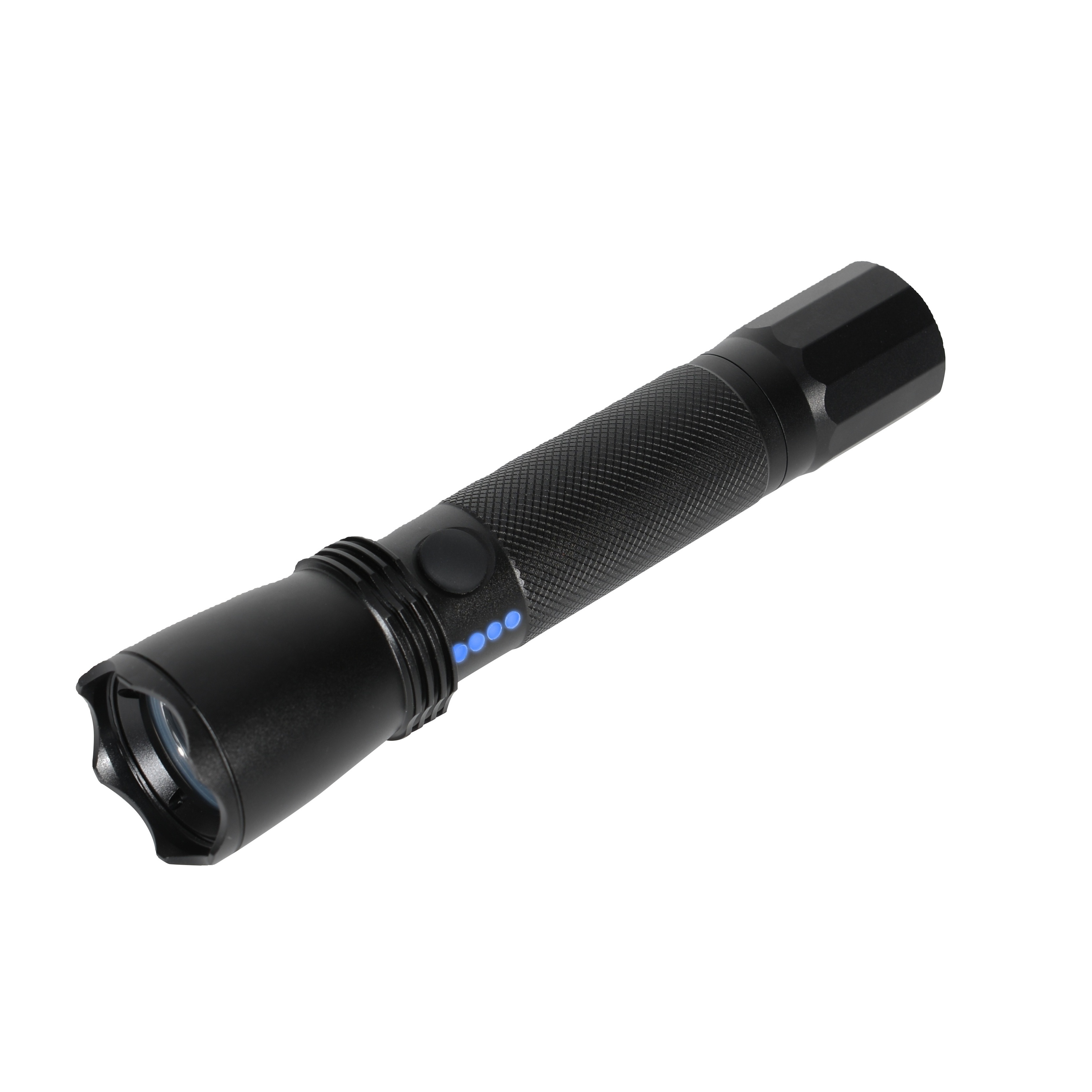

Product Description
Security & Reliability
Type of protection - intrinsic safety: Ex ib IIC T4 Gb, suitable for Zone 1, Zone 2 Locations.
- Intelligent control
There are three working modes: strong light, working light and stroboscopic. The switch is controlled by intelligent chip. It has the functions of low-power warning and automatic low-power protection.
The strong and weak light can be converted at will.
The intelligent charger has over charge, short circuit protection and charging display device, which can extend the service life of lamps and lanterns.
The strong and weak light can be converted at will.
The intelligent charger has over charge, short circuit protection and charging display device, which can extend the service life of lamps and lanterns.
- Light weight and strong durability
Small size, light weight, structurally sound design, aesthetically pleasing. It can be handheld, strapped on, hung and so on, to meet various work demands.
- Superb Energy Efficiency
LED light source adopting world famous brand, high lumen efficiency, high CRI, low energy consumption, extra-long service life, maintenance free results in no further operation costs.
- Economically & Environmentally Friendly
Dual protection high-energy mammoryless lithium battery has the advantages of large capacity, long service life, high number of rechargeable times, low self-discharge rate, economically and environmentally friendly, and can prevent instances of overcharge, over discharge and short circuit.
- Power level detection
Humanized four stage power indication (through 4 mini light grids) and low voltage warning function design, which enables power level detection at any time; when the power is insufficient, the last light bead will flash to prompt charging.
- Waterproofing and fall resistance
The casing is made of imported high hardness alloy material to ensure that the product can withstand strong collision and impact. Multiple waterproof structures and excellent waterproof performance, it can be used in various harsh environments.
Product Paramenters
Power 3 W
Illumination value 2150 Lux
Irradiation distance 185 M
Battery capacity 2200 mAh
Drop height 2 M
Waterproof grade IP66
Product weight 180 g
Light source CREE XPE
Luminous flux 155lm
Light intensity 8600 cd
Battery type 1 section 18650
3 gears
Explosion-proof grade Ex ib IIC T4 Gb
Product size φ35×157mm
Application
Application
It is widely used at various locations and by various personnel such as railways, shipping vessels, mining companies and field worksites. (zone 1, zone 2)
Indonesia
- Explosion Proof LED Flood Light
- Explosion Proof LED Flood Light
Netherlands - Seaside Oil Refinery
CESP LED Explosion proof Lights
for Powder Magazine in Chile
for Powder Magazine in Chile
Natural Gas Hanling Facility in Malaysia- 120W Led EX-proof Light Project
Australian Gas Station Lighting - CES-J100
CES-J series is used for
Oil depot lighting
WIDE APPLICATIONS
The CES-LN-02P series is widely used in the hazardous locations, such as gas station, factory workshop, petrochemical plant and so on.
It is the most popular product in our company, this product is a high sales volume of our company every year. As picture showed is LN-02P Linear light for LNG plant in Singapore, it is also used in an China National Offshore Oil Corporation Lighting Engineering Project - CNOOC . The image below is a physical images of all kinds of projects.
It is the most popular product in our company, this product is a high sales volume of our company every year. As picture showed is LN-02P Linear light for LNG plant in Singapore, it is also used in an China National Offshore Oil Corporation Lighting Engineering Project - CNOOC . The image below is a physical images of all kinds of projects.
CES-EX-LN-02P Linear Light replace to the ex-proof fluorescent light in Singapore
Control Room - United States
CES-EX-LN-02P Ex-Proof Linear Light
CES-EX-LN-02P Ex-Proof Linear Light
Italy - these luminaries are installed in explosion-proof boxes
CES-EX-LN-02P
CNOOC -
China National Offshore Oil Corporation Lighting Engineering Project.
