Quick Details
-
Dimension(L*W*H):
-
8300X4830X2100MM
-
Year:
-
2022
-
Power (kW):
-
3 kW
-
Weight (KG):
-
16000 KG
-
Drum diameter:
-
850mm
-
Drum length:
-
1400mm
-
Heating Method:
-
steam or oil
-
Marketing Type:
-
Hot Product 2022
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EVERFINE ROTOCURE MACHINE
-
Voltage:
-
220V~660V
-
Dimension(L*W*H):
-
8300X4830X2100MM
-
Year:
-
2022
-
Power (kW):
-
3 kW
-
Weight (KG):
-
16000 KG
-
Drum diameter:
-
850mm
-
Drum length:
-
1400mm
-
Heating Method:
-
steam or oil
-
Marketing Type:
-
Hot Product 2022
Rubber rotocure machine mainly works for calendering of belt after rubber belt building,as can improve the shape and intrinsic quality of rubber belt.
1. The drum rolls are the main parts of machine group, which work for curing of rubber belts; the drive rolls connect with the reducer to transfer the drive so that the machine can run in different speed. The steel belt connect all rolls into one drive chain for cooperative motion; the hydraulic device can provice the tension and pressure; EPC centering device can control the running track of steel belt; the hot oil heating device can control the technology temperature; the let-off device transfers the rubber belt to be cured ;the traction device control the tension before and after curing; the wind-up device works for winding of belt.
2. rubber vulcanizing press has compact structure, stable control and convenient maintenance, as can completely meet the requirements of rubber belt manufacturers.
3. rubber vulcanizing press has different structure from platen press, which has specially designed structure to reach continuous production with perfect performance. The curing temperature and pressure are stable. It can produce hundreds of meters and even thousands of meters circle belt.
|
Model |
DLG700×1400-1800 |
DLG1100×2000 |
DLG1500×2000-2500 |
DLG2000×2500-4200 |
|||
|
Max. product width |
mm |
1200-1600 |
2000 |
2000-2500 |
2500-4200 |
||
|
Max. product thickness |
mm |
5 |
8 |
12 |
12 |
||
|
Drum dia. |
mm |
700 |
1100 |
1500 |
2000 |
||
|
Drum working width |
mm |
1400-1800 |
2200 |
2350-2750 |
2750-4200 |
||
|
Total pulling force of steel belt |
t |
38-49 |
90 |
93.6-117 |
120-144 |
||
|
The linear speed of vulcanizing drum |
m/min |
1.12-0.04 |
0.06-1.8 |
0.175-3.14 |
0.24-4.7 |
||
|
Steam pressure |
MPa |
0.6 |
≤ 0.8 |
≤ 1 |
≤ 1 |
||
|
Vulcanizing temperature |
°C |
1140-160 |
140-160 |
160-180 |
160-180 |
||
|
Main motor power |
kw |
4 , 5.5 |
7.5 |
7.5-11 |
15 ~ 30 |
||
|
Overall dimensions |
L |
mm |
8300 |
10000 |
1350 |
18600 |
|
|
W |
mm |
4400-4830 |
4900 |
5200 |
4650-6200 |
||
|
H |
mm |
2100 |
2600 |
6085 |
6285 |
||
|
About weight |
t |
~ 20-30 |
~ 42 |
~ 79 |
~ 80-126 |
|
|

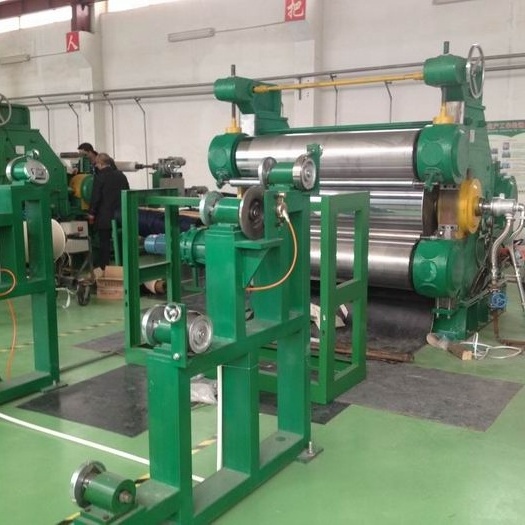

Rubber Rotocure machine in factory:
We are an enterprise of technology-pioneer type specializing in production of rubber machinery and the leading manufacturer and export base of rubber machinery industry in China.
Our rubber machinery includes: autoclave, devulcanizer, bale cutter, internal mixer, banbury intensive kneader, banbury mixer, dispersion kneader, butyl reclaimed rubber desulfurizing kneader, two roll rubber mixing mill, open type rubber mixing mill, rubber cracker mill, rubber refiner, batch-off machine, rubber extruder, hot feeding rubber extruder, cold feeding rubber extruder, rubber calender, three roller calender, four roller calender, plate vulcanizing press, tyre machinery, tyre curing press, inner tube press, EVA foam press, hydraulic press, rubber track joint press, conveyor belt vulcanizing press, conveyor belt vulcanizer, conveyor belt vulcanizing line, conveyor belt joint press, belt splice press, belt repair press, reclaimed rubber machinery, rubber powder machinery, rubber cracker, etc.
