Quick Details
-
Brand Name:
-
Xingtailong
-
Function:
-
valve core
-
Purity:
-
95%
-
Frictional times:
-
300, 000 to 500, 000
-
Color:
-
Pure white
-
Density:
-
3.6-3.9g/cubic cntimeter
-
Specification:
-
diameter 25mm-210mm
-
Feature:
-
tap ceramic disc
-
Attribute:
-
cartridge ceramic disc
-
Characteristic:
-
electrical ceramic disc
-
Usage:
-
Industry Usage
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Hunan, China
-
Model Number:
-
XTL
-
Brand Name:
-
Xingtailong
-
Function:
-
valve core
-
Purity:
-
95%
-
Frictional times:
-
300, 000 to 500, 000
-
Color:
-
Pure white
-
Density:
-
3.6-3.9g/cubic cntimeter
-
Specification:
-
diameter 25mm-210mm
-
Feature:
-
tap ceramic disc
-
Attribute:
-
cartridge ceramic disc
-
Characteristic:
-
electrical ceramic disc
-
Usage:
-
Industry Usage

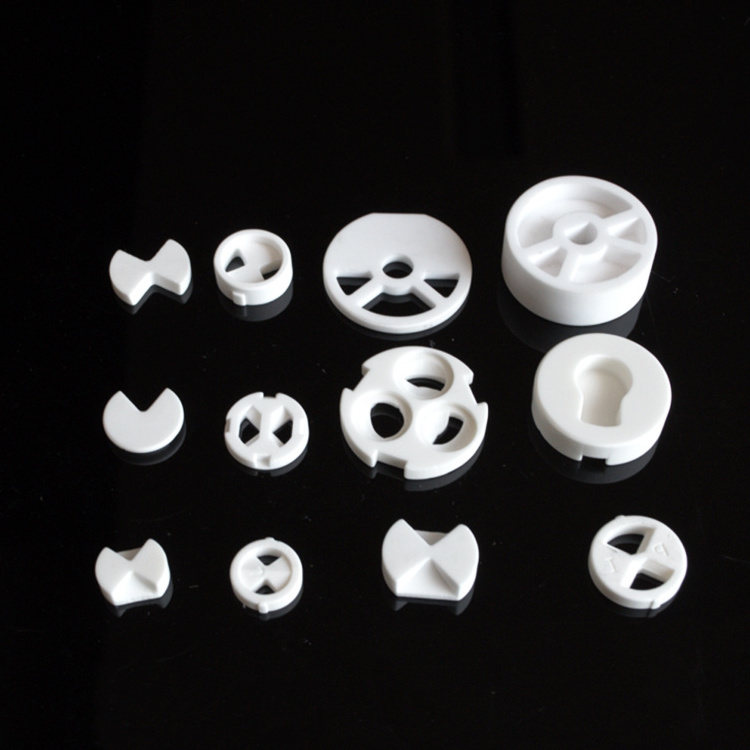

Al2O3 Ceramic Water Valves Disc Customized alumina ceramic 99% Alumina discs parts
|
Performance For Industrial Ceramic |
|||||
|
Item |
|
Unit |
95Al 2 O 3 |
96 Al 2 O 3 |
99 Al 2 O 3 |
|
Physical Characteristics |
Heat resistance |
℃ |
1500 |
1550 |
1800 |
|
Bulk density |
g/cm 3 |
3.6 |
3.6 |
3.9 |
|
|
Water absorption |
% |
0 |
0 |
0 |
|
|
Mechanical Characteristics |
Flexural strength |
Mpa |
320 |
340 |
360 |
|
Hardness vickers |
Gpa |
12.2 |
13.5 |
15.6 |
|
|
Elastic modulus |
Gpa |
280 |
320 |
370 |
|
|
Poisson’s ratio |
|
0.22 |
0.23 |
0.23 |
|
|
Thermal Characteristics |
Linear expansion coefficient |
(20-500℃) 10 -6 /℃ |
7.1 |
7.2 |
8 |
|
Thermal conductivity |
w/(m.k) |
16 |
24 |
32 |
|
|
Specific Heat |
*10 -3 J/(kg*K) |
0.78 |
0.78 |
0.9 |
|
|
Electrical Characteristics |
Dielectric constant (1MHZ) |
- |
9 |
9.4 |
9.9 |
|
Dielectric loss angle |
*10 -4 |
15 |
5 |
1 |
|
|
Dielectric strength |
*10 6 V/m |
12 |
15 |
15 |
|
|
Item number |
Diameter(mm) |
|
XTL-25 |
25 |
|
XTL-35 |
35 |
|
XTL-40 |
40 |
|
XTL-115 |
11.5 |
|
XTL-120 |
12.0 |
|
XTL-135 |
13.5 |
|
XTL-145 |
14.5 |
|
XTL-150 |
15.0 |
|
XTL-155 |
15.5 |
|
XTL-157 |
15.7 |
|
XTL-158 |
15.8 |
|
XTL-160 |
16.0 |
|
XTL-161 |
16.1 |
|
XTL-162 |
16.2 |
|
XTL-190 |
19.0 |
|
XTL-207 |
20.7 |
|
XTL-210 |
21.0 |
