Quick Details
-
Voltage:
-
contact
-
Power:
-
950
-
Dimension(L*W*H):
-
45*58*83cm
-
Weight (KG):
-
80
-
Marketing Type:
-
Hot Product 2023
-
Evaporation Capacity(kg/h):
-
3
-
Model Number:
-
DW-10N
-
No-load Temperature:
-
<-56℃
-
Freeze Area:
-
0.08 m2-0.12 m2
-
Plate Load Capacity:
-
1-1.5 L
-
Ability to Capture Water:
-
3Kg
-
Sample Tray Size:
-
4*200mm/ 3*180 mm
-
Machine Dimension:
-
W450*D580*H(380+450) mm
-
Vacuum Degree:
-
<10Pa
-
interlaying spacing:
-
70mm
-
Cold trap size:
-
215*160mm
Quick Details
-
Type:
-
Freeze Drying Equipment
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Drawell
-
Voltage:
-
contact
-
Power:
-
950
-
Dimension(L*W*H):
-
45*58*83cm
-
Weight (KG):
-
80
-
Marketing Type:
-
Hot Product 2023
-
Evaporation Capacity(kg/h):
-
3
-
Model Number:
-
DW-10N
-
No-load Temperature:
-
<-56℃
-
Freeze Area:
-
0.08 m2-0.12 m2
-
Plate Load Capacity:
-
1-1.5 L
-
Ability to Capture Water:
-
3Kg
-
Sample Tray Size:
-
4*200mm/ 3*180 mm
-
Machine Dimension:
-
W450*D580*H(380+450) mm
-
Vacuum Degree:
-
<10Pa
-
interlaying spacing:
-
70mm
-
Cold trap size:
-
215*160mm

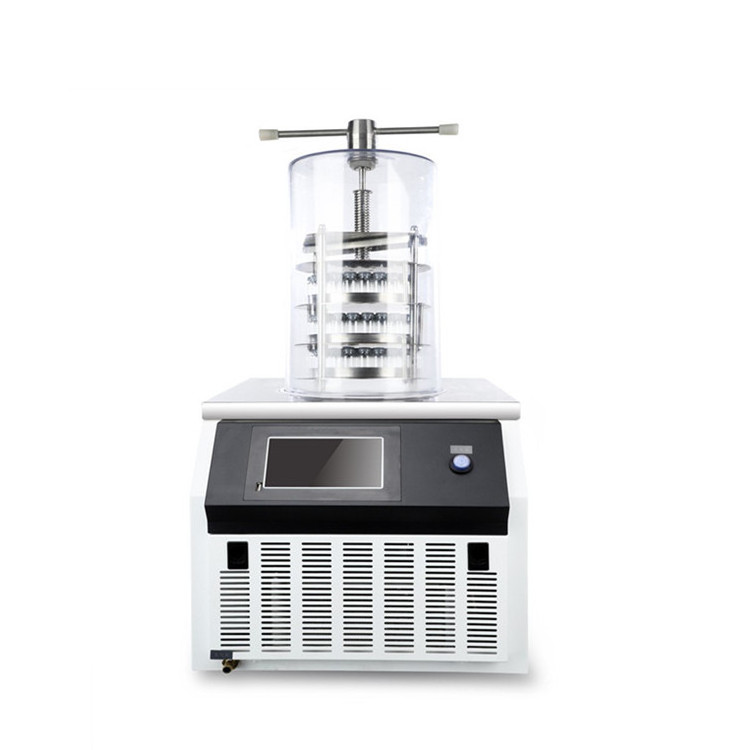

DW-10N Freeze Dryer
Characteristics:
●Accord with international standards of Green environmental friendly
● 7" True-color Touch Screen, English Bilingual Interface, display drying curve and history curve;
● U disk Can storage lyophilized data;
● Upload software can print curve;
● Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data;
●Large opening trap, no coil inside, with samples pre-freeze function
● Imported refrigeration compressor, low noise
● Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean
● Transparent Bell type drying room, secure and ocular
● Stainless steel sample holder, common sample plate spacing adjustable
● Small size and easy to operate
● Nitrogen inflation valve within
● Transparent Bell type drying room, secure and ocular
● Stainless steel sample holder, common sample plate spacing adjustable
● Small size and easy to operate
● Nitrogen inflation valve within
|
DW-10N
|
Ordinary
|
Top-Press
|
Ordinary Multi-Manifolds
|
Top-Press Multi-Manifolds
|
|
No-load Temperature
|
<-56℃
|
<-56℃
|
<-56℃
|
<-56℃
|
|
Freeze Area
|
0.12 m2
|
0.08 m2
|
0.12 m2
|
0.08 m2
|
|
Plate Load Capacity
|
1.5 L
|
1 L
|
1.5 L
|
1 L
|
|
Ability to Capture Water
|
3Kg
|
3 Kg
|
3 Kg
|
3 Kg
|
|
Vacuum Degree
|
<10Pa
|
<10Pa
|
<10Pa
|
<10Pa
|
|
Machine Dimension
|
W450×D580×H(380+450) mm
|
W450×D580×H(380+450) mm
|
W450×D580×H(380+450) mm
|
W450×D580×H(380+450) mm
|
|
Sample Tray Size
|
4×Φ200mm
|
Ø 3×180 mm
|
4×Φ200mm
|
Ø 3×180 mm
|
|
Power
|
950W
|
950W
|
950W
|
950W
|
|
Power Supply
|
110V/60Hz or 220V/50Hz
|
110V/60Hz or 220V/50Hz
|
110V/60Hz or 220V/50Hz
|
110V/60Hz or 220V/50Hz
|
|
interlayer spacing
|
70 mm
|
70 mm
|
70 mm
|
70 mm
|
|
Cold trap size
|
Ø215×160 mm
|
Ø215×160 mm
|
Ø215×160 mm
|
Ø215×160 mm
|
|
The number of Schering bottles
|
Ø22: 260
|
Ø22: 165
|
Ø22: 260
|
Ø22: 165
|
|
|
Ø16: 480
|
Ø16: 285
|
Ø16: 480
|
Ø16: 285
|
|
|
Ø12: 920
|
Ø12: 560
|
Ø12: 920
|
Ø12: 560
|
|
N.W./ G.W
|
80KG/95KG
|
85KG/100KG
|
95KG/110KG
|
100KG/115KG
|
