Quick Details
-
Brand Name:
-
HBGB
-
Model Number:
-
Chain Link Fence
-
Product name:
-
chain link fence part/fittings/accessories
-
Material:
-
metal steel
-
Surface treatment:
-
Hot Dipped Galvanzied
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, ECO FRIENDLY, Rodent Proof, Rot Proof, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HBGB
-
Model Number:
-
Chain Link Fence
-
Product name:
-
chain link fence part/fittings/accessories
-
Material:
-
metal steel
-
Surface treatment:
-
Hot Dipped Galvanzied
Galvanzied chain link fence fittings/parts/ accessories can be PVC coated or Galvanized.

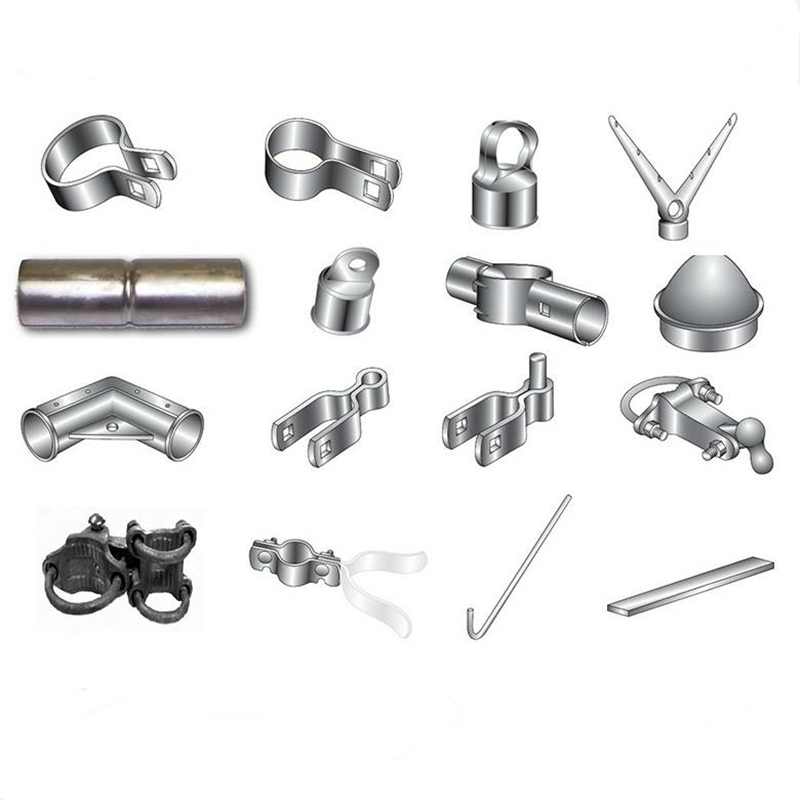

1. Chain link fence fittings categories:
- Post cap
- Tension band
- Brace band
- Truss rod
- Truss tightener
- Short winder
- Tensioner
- Male or female gate hinge
- Stretching bar
- Barbed wire arm: single arm or V arm
- Gate fork latch
- Gate male or female hinge
- rubber wheel
- flange plate
- tightener
- truss rod
2. Usages:
1 )Tension Bands are used to attach Tension Bars to the Terminal Posts.
---Standard Size (14 gauge x 3/4") .
---Includes 5/16" x 1 1/4" Carriage Bolt with Nut.
---Fits over a 1 3/8" O.D.* post O.D. - Outside Diameter of Post.
2) Brace Bands are used to attach Rail End Cups, Truss Rod Holders, Base Wire & Barb Wire to the Terminal Posts.
---Standard Size (14 gauge x 3/4") .
---Includes 5/16" x 1 1/4" Carriage Bolt with Nut.
---Fits over a 1 3/8" O.D.* post.
3) Tension Bar.
--Used to hold the tension on the ends of a chain link stretch.
--Requires Tension Bands to attach to a terminal post.
--Galvanized Steel Construction.
4) Rail end cups CONCAVE ADAPTR PART.
--Used to attach top rail to a Bullet Top (sku#0151) terminal post cap.
--Residential Use.
--Great for making a 3 directional or odd angle toprail connection.
5) Post caps ALUM DOME CAP PART——
--Used to cover tops of chainlink posts and other round pipe.
--Fits over 1 3/8" O.D.* pipe.
--Cast Aluminum Construction.
6) LOOP CapsAL LOOP CAP PART——
--For Residential Chainlink.
--Fits over a 1 5/8" line post.
--1 3/8" toprail fits inside of loop.
--Fits over a 1 5/8" line post.
--1 5/8" toprail fits inside of loop.
7) Barbed wire arms 3"CORNER ARM- 3-WIR PART.
woven bag or carton.
Post caps
--Fits over 1 3/8" O.D.* pipe.
--Cast Aluminum Construction.
--Residential or Light Commercial Use.
8) Barbed wire arms 3"CORNER ARM- 3-WIR PART.
woven bag or carton.
Post caps
--Fits over 1 3/8" O.D.* pipe.
--Cast Aluminum Construction.
--Residential or Light Commercial Use.
--ISO9001.
Chain link fence fittings:
