Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mactron
-
Dimension(L*W*H):
-
1100mm*980mm*600mm
-
Weight (KG):
-
300 KG
-
Core Components:
-
Laser tube
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Laser Power:
-
60W
-
Control System:
-
64 Bit DSP
-
Resolution Ratio:
-
<0.025mm
-
Working Area:
-
600mm*400mm
-
Cutting Speed:
-
0-48000mm/min
-
Location Precision:
-
<0.01mm
-
Operating Temperature:
-
0°C-45°C
-
Accessories:
-
Water cooling unit, Air Pump, Exhaust Blower Unit
Quick Details
-
Engraving Area:
-
600mm*400mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-64000mm/min, 0-64000mm/min
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mactron
-
Dimension(L*W*H):
-
1100mm*980mm*600mm
-
Weight (KG):
-
300 KG
-
Core Components:
-
Laser tube
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Laser Power:
-
60W
-
Control System:
-
64 Bit DSP
-
Resolution Ratio:
-
<0.025mm
-
Working Area:
-
600mm*400mm
-
Cutting Speed:
-
0-48000mm/min
-
Location Precision:
-
<0.01mm
-
Operating Temperature:
-
0°C-45°C
-
Accessories:
-
Water cooling unit, Air Pump, Exhaust Blower Unit
|
Model
|
MT-6040
|
MT-9060
|
MT-1060
|
MT-1080
|
|||
|
Work Area (cm)
|
60 × 40
|
90 × 60
|
100 × 60
|
100 × 80
|
|||
|
Laser Generator
|
Water cooled Co2 glass sealed laser tube
|
|
|
|
|||
|
Laser Power
|
60W/70W (Optional)
|
|
|
|
|||
|
Drive Motors
|
Micro stepping stepper motor system
|
|
|
|
|||
|
Control System
|
64 Bit DSP
|
|
|
|
|||
|
PC Interface
|
USB 2.0 Port, USB Disk
|
|
|
|
|||
|
Cutting Speed
|
0-48000mm/min
|
|
|
|
|||
|
Engraving Speed
|
0-64000mm/min
|
|
|
|
|||
|
Resolution Ratio
|
<0.025mm
|
|
|
|
|||
|
Power Supply
|
AC110V/220V-240V ± 10%, 50/60HZ
|
|
|
|
|||
|
Location Precision
|
<0.01mm
|
|
|
|
|||
|
Operating Temperature
|
0°C-45°C
|
|
|
|
|||
|
Graphic Format supported
|
HPGL(PLT), JPGE, PCS, TGA, DST, DXP, DXF, DWG, CDR
|
|
|
|
|||
|
Red Pointer
|
Optional
|
|
|
|
|||
|
Dimension(cm)
|
110 × 98 ×60
|
148×118×60
|
158×118×60
|
158×138×60
|
|||
|
Weight (kg)
|
180
|
240
|
290
|
350
|
|||
|
Dual Laser Head
|
Optional
|
Optional
|
Optional
|
Optional
|
|||
|
Accessories
|
Water cooling unit, Air Pump, Exhaust Blower Unit
|
|
|
|
|||
Main Features

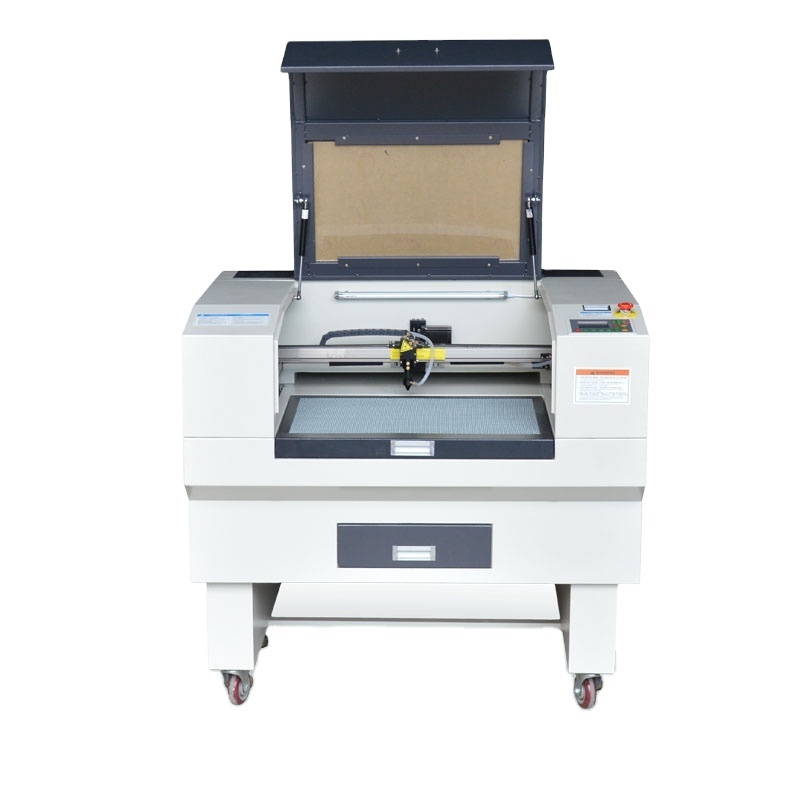

MT-6040 Laser Cutting Jigsaw Puzzle Machine adopt DSP control technology, special type laser power source and closed circulation chain stainless steel working bench to ensure working stability.
Adopt high quality stepping motor and driver.
USB to transmit date, and equipped with large capacity internal memory, greatly improving working speed and efficiency.
Application Material:
Bamboo piece, double-color planks, boulder, horns, leather, crystal, Wood Craft, organic plastic, paper, film, canvas,Die Board, plastic,cardboard ,invitation card.
Application Industry:
MT-6040 Laser Cutting Jigsaw Puzzle Machine mainly used for the engraving and cutting on acrylic, wood, variety of plastic, Fabrics (silk fabrics, cotton fabrics, decorative fabrics, polyester fabrics, synthetic fabrics,), leather (leather, artificial leather, decorative leather, packaging leather, soft-leather), cardboard and other supplies, and all kinds of non-metal material.
