Quick Details
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-HMTG24ET6S
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
24 ports smart managed switch 2.5G manageably switch
-
RJ45 Ports:
-
24*2.5GRJ45 Ports
-
Uplink Ports:
-
6*10G SFP Port
-
Managed port:
-
1*Console port
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Power Supply:
-
Input:AC100-240V 50/60Hz
-
PoE Port Power:
-
DC48V~DC56V
-
Dimensions (W x D x H):
-
440mm*360mm*45mm
-
Operating Temperature:
-
-20℃ ~ 50℃
-
Warranty:
-
3 years
Quick Details
-
Transmission Rate:
-
10/100/1000/2500mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
240Gbps
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-HMTG24ET6S
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
24 ports smart managed switch 2.5G manageably switch
-
RJ45 Ports:
-
24*2.5GRJ45 Ports
-
Uplink Ports:
-
6*10G SFP Port
-
Managed port:
-
1*Console port
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Power Supply:
-
Input:AC100-240V 50/60Hz
-
PoE Port Power:
-
DC48V~DC56V
-
Dimensions (W x D x H):
-
440mm*360mm*45mm
-
Operating Temperature:
-
-20℃ ~ 50℃
-
Warranty:
-
3 years
Product Description

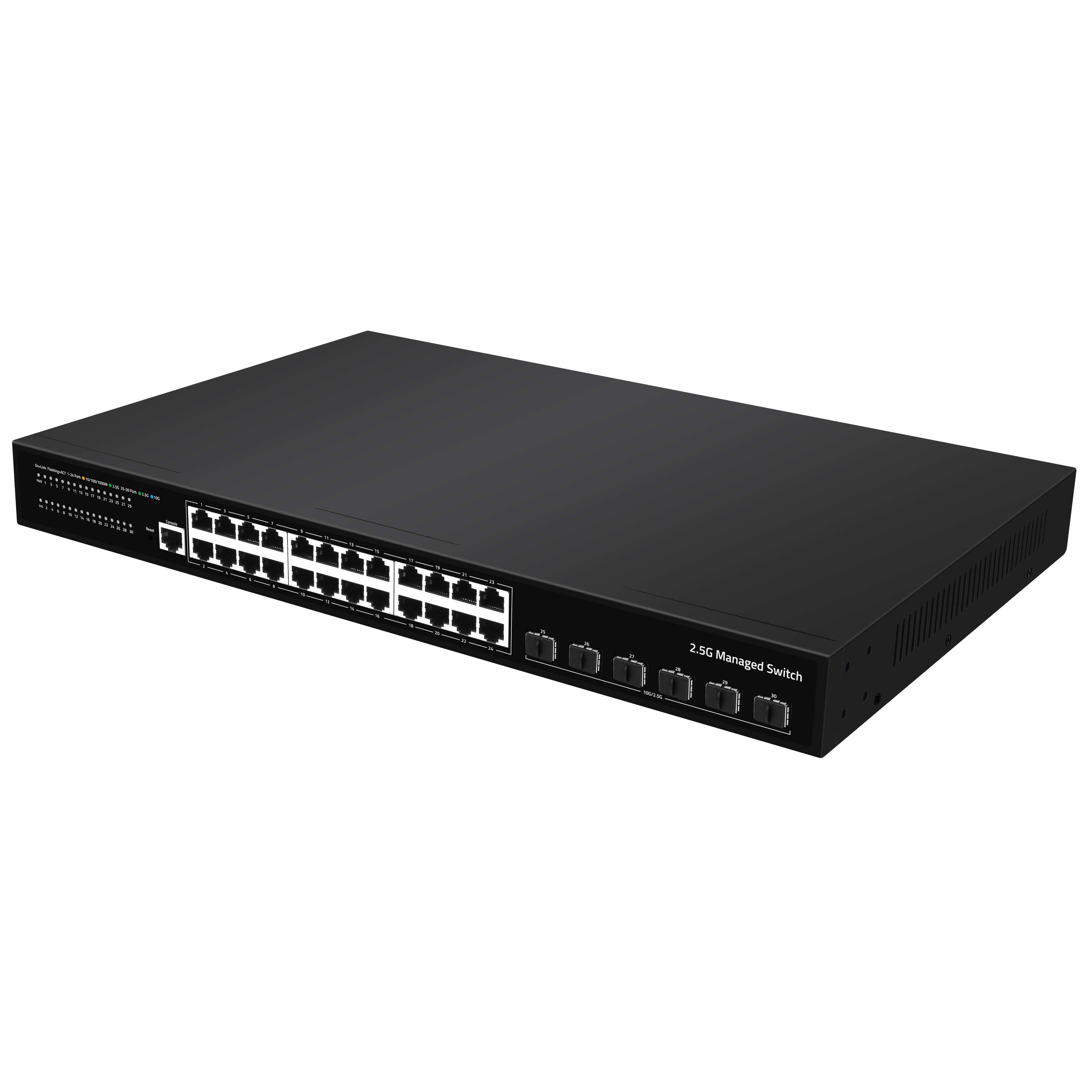

Sunsoont Layer 3 standard 24 ports smart managed switch 2.5G manageably switch
Sunsoont
30 Port L3 Managed 10G Uplink 2.5G Ethernet Switch, support 24* 100/1000/2500M adaptive RJ45 ports+6* 10Gb SFP+ port+1* RJ45 console port. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection; The device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions. With advanced security functions and quality of service (QoS), it can be used as core layer,distribution layer ,and access layer switch with high density port and easy management, is an ideal choice for various business network applications.
Feature
* Support IEEE 802.1d, IEEE 802.1w, IEEE 802.1s,IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x,
IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standards;
* L3 management, support DHCP Server, QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2；
* Support STP/RSTP/MSTP (ERPS), support loop detection and self-healing, support remote loopback monitoring and control（802.3ah OAM）;
* Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN;
* Support IP address + MAC address + VLAN+Port binding, DHCP Snooping, support IP source and DAI protection;
* Support IPV4/IPV6,RIP v1/v2, OSPF v2;
* Supports WEB, TELNET, CLI, SSH, SNMP, RMON management;
* Support Port Surge Protection: Common Mode 6KV, Differential Mode 2KV; ESD: Contact 6KV, Air 8KV
IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standards;
* L3 management, support DHCP Server, QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2；
* Support STP/RSTP/MSTP (ERPS), support loop detection and self-healing, support remote loopback monitoring and control（802.3ah OAM）;
* Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN;
* Support IP address + MAC address + VLAN+Port binding, DHCP Snooping, support IP source and DAI protection;
* Support IPV4/IPV6,RIP v1/v2, OSPF v2;
* Supports WEB, TELNET, CLI, SSH, SNMP, RMON management;
* Support Port Surge Protection: Common Mode 6KV, Differential Mode 2KV; ESD: Contact 6KV, Air 8KV
Details Images
System Infomation
Specification
|
Product name
|
24 ports 2.5G L3 managed Fiber Switch
|
|
|
Model No.
|
SST-HMTG24ET6S
|
|
|
Port
|
24 *2.5G RJ45 ethernet ports+4*10G SFP+ ports, 1 Console port
|
|
|
Network protocol
|
IEEE 802.3: Ethernet MAC Protocol
IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae: 10G Ethernet (optical fiber) IEEE 802.3az: Energy Efficient Ethernet IEEE 802.3ad: Standard method for performing link aggregation IEEE 802.3x: Flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p: LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q: VLAN Bridge Operation IEEE 802.1x: Client/Server Access Control and Authentication Protocol IEEE 802.1d: STP IEEE 802.1s: MSTP IEEE 802.1w: RSTP |
|
|
Network Media
|
10BASE-T: Cat3,4,5 UTP(≤100 m)
100BASE-TX: Cat5 or more UTP(≤100 m) 1000BASE-TX: Cat5 or more UTP(≤100 m) |
|
|
Optical
|
Multimode: 1310nm, 2Km
Single Mode: 1310nm, 20/40 Km 1550nm, 60/80/100/120Km |
|
|
LED
|
FX,PWR,Link/ Act,SYN
|
|
|
Structure Size
|
Product Dimensions: 440*360*44.5mm
Package Dimensions: 580*440*120mm Product N.W: 5.49KG Product G.W: 6.85KG |
|
|
Packing Info
|
Carton Dimensions: 600*460*278mm
Packing Quantity: 2pcs Packing weight: 14.7 KG |
|
|
Power Voltage
|
Working voltage: AC100-240V 50/60Hz
Power supply: DC 12V5A |
|
|
Power Consumption
|
Total consumption: maximum 67.5W
|
|
|
Package List
|
Ethernet switch: 1 Set, Instruction manual: 1 PCS, Certificate: 1 PCS, Power cord: 1PCS
Serial cable: 1PCS, Rack ear: 1 Pairs |
|
|
Warranty
|
3 years
|
|
|
Basic characteristics
|
|
|
|
Bandwidth
|
240Gbps
|
|
|
Packet Buffer
Memory |
178.56Mpps
|
|
|
DDR SDRAM
|
512MByte
|
|
|
Flash Memory
|
32MByte
|
|
|
Package Cache
|
16Mbit
|
|
|
MAC Address Table
|
32K
|
|
|
Jumbo frame
|
10Kbytes
|
|
|
VLANs
|
VLAN range 1-4094, with a maximum active VLAN of 4K
|
|
|
MAC
|
16K
|
|
|
Forwarding Mode
|
Store-And-Forward
|
|
|
L2 Software Features
|
|
|
|
Port managment
|
Enable/Disable port
|
|
|
|
speed,duplex,MTU Setting
|
|
|
|
flow-control
|
|
|
|
Port information view
|
|
|
Port mirroring
|
Support port access direction, vlan mirror
|
|
|
Port speed limit
|
Support , speed limit by the chip
|
|
|
Port isolation
|
Support
|
|
|
Storm suppression
|
Supports unknown unicast, unknown multicast, broadcast storm suppression
|
|
|
Link aggregation
|
Supports static manual aggregation
|
|
|
|
Support LACP dynamic aggregation
|
|
|
VLAN
|
Access
|
|
|
|
Trunk
|
|
|
|
hybrid
|
|
|
|
Supports VLAN assignment based on port, protocol, MAC
|
|
|
|
Support GVRP dynamic VLAN registration
|
|
|
|
Voice VLAN
|
|
|
MAC
|
Support static add, delete
|
|
|
|
MAC address learning limit
|
|
|
|
Support for dynamic aging time settings
|
|
|
Spanning Tree
|
Support 802.1d (STP)
|
|
|
|
Support 802.1w (RSTP)
|
|
|
|
Support 802.1s (MSTP)
|
|
|
IGMP-snooping
|
Support static add, delete
|
|
|
|
Supports v1 / 2/3 dynamic multicast listening
|
|
|
L3 & Router
|
|
|
|
Interface configuration
|
Support SVI port
|
|
|
ARP
|
Support static ARP
|
|
|
|
Support setting ARP Aging time
|
|
|
VRRP
|
Supports VRRP route backup
|
|
|
ND
|
Support IPv6_ND configuration
|
|
|
Router
|
Static router
|
|
|
|
RIP(V1/V2)/ OSPF(V2) /BGP
|
|
|
|
RIP/OSPF/BGP Support route authentication function
|
|
|
|
RIP/OSPF/BGP Support route import, filter function
|
|
|
Extender function
|
|
|
|
ACL
|
Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number
|
|
|
|
Support time-range time period management
|
|
|
QOS
|
Based on 802.1p (COS) classification
|
|
|
|
Based on DSCP classification
|
|
|
|
Based on source IP, destination IP, port number classification
|
|
|
|
Support SP, WRR, DRR scheduling strategy
|
|
|
|
Support rate speed limit CAR
|
|
|
LLDP
|
Supports LLDP link discovery protocol
|
|
|
User setting
|
Add/Delete users
|
|
|
Log
|
User login, operation, status, event log
|
|
|
Anti-attack
|
DOS Defense
|
|
|
|
Support CPU protection, limit the rate of sending cpu packets
|
|
|
|
ARP Bind(IP,MAC,PORT Bind)
|
|
|
Network diagnosis
|
Support ping,telnet,trace
|
|
|
System management
|
Device reset, configuration save / restore, upgrade management, time setting, and so on
|
|
|
Management Function
|
|
|
|
CLI
|
Supports serial command line management
|
|
|
TELNET
|
Support telnet remote management
|
|
|
WEB
|
Support L2
|
|
