Quick Details
-
Product Size:
-
210*110*52MM
-
Weight:
-
0.7KGS
-
Input Voltage:
-
220±10%
-
Mode Switch Brightness:
-
200LUX±30%
-
Sound Pressure:
-
65dB(A-weight)±10%
-
red light frequency:
-
300~500KHZ
-
Green Light Frequency:
-
300~500KHZ
-
Wires Length:
-
2.4Meter
-
Warranty:
-
2 Years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NO
-
Product name:
-

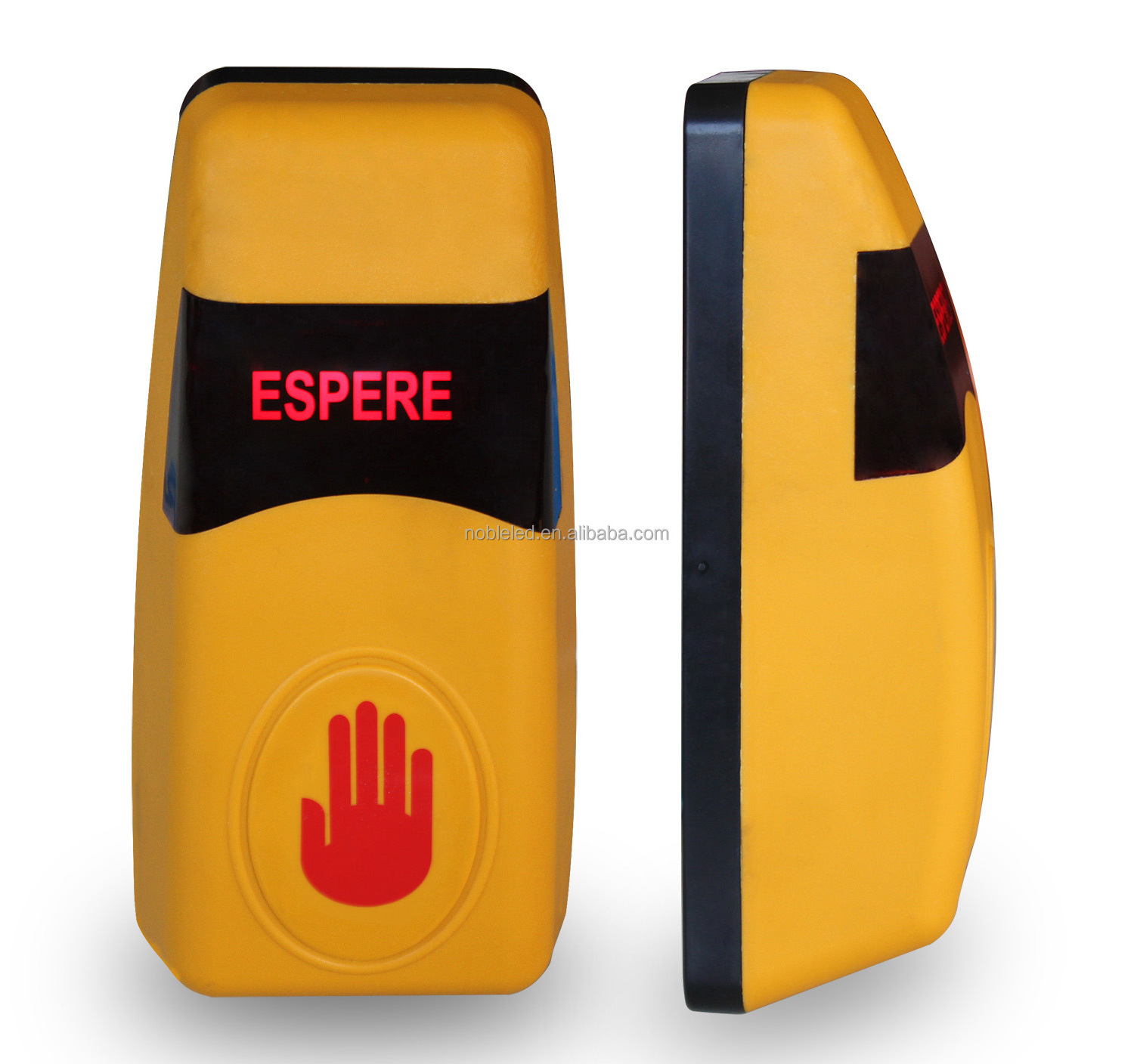

Cross traffic pedestrian light push button for safety crossing
-
Product Size:
-
210*110*52MM
-
Weight:
-
0.7KGS
-
Input Voltage:
-
220±10%
-
Mode Switch Brightness:
-
200LUX±30%
-
Sound Pressure:
-
65dB(A-weight)±10%
-
red light frequency:
-
300~500KHZ
-
Green Light Frequency:
-
300~500KHZ
-
Wires Length:
-
2.4Meter
-
Warranty:
-
2 Years
Overview
Feature
Crossing the street to remind the blind clock
Feature:
1,Outlook small, novel,compact, waterproof design, easy to install, ABS+PC material, high strength and anti-aging.
2,With a non-contact touch button,more hygienic in public places,with high sensitivity and long life.
3,Blind clock voice prompts loud,Volume can be adjusted,day and night volume automatically switch,At the same time, the sound
source can be customized.
4,Optional dynamic volume adjustment function, the blind clock can automatically adjust the volume according to the surrounding
environment of the intersection, which is more intelligent.;
5,The wireless button adopts 2.4G self-organizing network Mesh network communication technology, automatic signal relay, the
signal is stable and reliable, and the distance is long..
6,With 32-bit MCU control, the pedestrian button signal can be output through the receiver 8 group IO output or 485 output, the
output signal can be freely mapped, or the output protocol can be customized, and the third-party traffic signal can be seamlessly
connected.
7,With led lights and language reminders, button prompt text and graphics can be customized;.
8,The wireless blind clock button is equipped with a PC-side configuration software. By connecting the network cable, you can
configure the button output mapping on the PC and adjust the voice volume of the blind clock..Blind clock button selection
specifications.
Feature:
1,Outlook small, novel,compact, waterproof design, easy to install, ABS+PC material, high strength and anti-aging.
2,With a non-contact touch button,more hygienic in public places,with high sensitivity and long life.
3,Blind clock voice prompts loud,Volume can be adjusted,day and night volume automatically switch,At the same time, the sound
source can be customized.
4,Optional dynamic volume adjustment function, the blind clock can automatically adjust the volume according to the surrounding
environment of the intersection, which is more intelligent.;
5,The wireless button adopts 2.4G self-organizing network Mesh network communication technology, automatic signal relay, the
signal is stable and reliable, and the distance is long..
6,With 32-bit MCU control, the pedestrian button signal can be output through the receiver 8 group IO output or 485 output, the
output signal can be freely mapped, or the output protocol can be customized, and the third-party traffic signal can be seamlessly
connected.
7,With led lights and language reminders, button prompt text and graphics can be customized;.
8,The wireless blind clock button is equipped with a PC-side configuration software. By connecting the network cable, you can
configure the button output mapping on the PC and adjust the voice volume of the blind clock..Blind clock button selection
specifications.
Supply Ability
Supply Ability: 3000 Piece/Pieces per Month
Product Photos
Product Presentation
Product introduction: application, function, style, etc
The following configuration is a product diagram + table with the specific parameters of the configuration product
|
Color
|
yellow
|
|
Material
|
ABS+PC
|
|
Working voltage
|
12-24VDC or100-277VAC
|
|
Frequency band
|
2.4G
|
|
Transmitting power
|
200mA
|
|
Receive sensitivity
|
-98dBm
|
|
Button output
|
wired
|
|
Waterproof level
|
IP65
|
|
Lifespan
|
over 100,000 hours
|
|
Warranty
|
2 years
|
Testing
Wireless parameter:
Frequency band: 2.4G (2405MHz ~ 2480MHz 16 channels can be set)
Transmitting power: 200mA
Receive sensitivity: -98dBm
Communication distance: more than 200 meters (this is the distance between the single button and the receiver, and the muti-button
coordinates the working distance further)
Button parameter
Touch button detection distance is less than 2cm
Touch output: wired optional normally open or normally closed output, wireless output
Character display
The default red "Wait", other characters can be customized
Silkscreen characters default red, other characters can be customized
Frequency band: 2.4G (2405MHz ~ 2480MHz 16 channels can be set)
Transmitting power: 200mA
Receive sensitivity: -98dBm
Communication distance: more than 200 meters (this is the distance between the single button and the receiver, and the muti-button
coordinates the working distance further)
Button parameter
Touch button detection distance is less than 2cm
Touch output: wired optional normally open or normally closed output, wireless output
Character display
The default red "Wait", other characters can be customized
Silkscreen characters default red, other characters can be customized
Project
Company Introduction
SHENZHEN NOBLE OPTO CO.,LTD is a high-tech private enterprise, Professional in researching, developing, and manufacturing high flux traffic signal light, solar power traffic signal. Since(2008)the establishment of the company, we recognize the importance of providing good quality products and best pre-to after-sale, and we are always trying our best offer to improve our design and production capacity. Moreover, we have the led traffic lights EN12368,ITE,CE IS9001 certification. Our products are exported to oversea markets around European countries and Middle Eastern area, such as
Sweden, England, Italy, Poland, Romania, Serbia, Turkey, Israel, Spain, USA, Russia Ross, Singapore etc.
Certificate
SHENZHEN NOBLE OPTO CO.,LTD has been and will always be striving to improve its production quality standards as well as making production operations more efficient and environmentally friendly.
There are certificates of conformity showing we comply with relevant international quality standards such as
EN12368,FCC,RoHS,CE,ISO9001, Software copyright and utility model patent.
FAQ
1. Where are there your company solar traffic light system projects?
A: South Africa, Nigeria, Congo, Libya, Philippines, Zimbabwe, Mozambique etc.
2. Whole solar traffic light system include?
A: Including traffic light, controller, battery, solar panel, solar charge, pole, controller box, cable.
3. Is it easy to install the solar traffic light system?
A: Yes, it is easy. If any problems on installation of traffic light, we will provide you video to show, or let you contact our engineer to consult directly.
4. How long warranty is the solar traffic light system?
A: Traffic light and controller, our warranty is 2 years, Solar panel and battery, only 1 year warranty.
5. Why choose Noble?
A: Our company is professional on traffic light system.
Welcome to contact us for more details.
Traffic signal, solar traffic light, pedestrian light, countdown timer, controller system, loop detector, pedestrian touch button, blind clock, etc.
A: South Africa, Nigeria, Congo, Libya, Philippines, Zimbabwe, Mozambique etc.
2. Whole solar traffic light system include?
A: Including traffic light, controller, battery, solar panel, solar charge, pole, controller box, cable.
3. Is it easy to install the solar traffic light system?
A: Yes, it is easy. If any problems on installation of traffic light, we will provide you video to show, or let you contact our engineer to consult directly.
4. How long warranty is the solar traffic light system?
A: Traffic light and controller, our warranty is 2 years, Solar panel and battery, only 1 year warranty.
5. Why choose Noble?
A: Our company is professional on traffic light system.
Welcome to contact us for more details.
Traffic signal, solar traffic light, pedestrian light, countdown timer, controller system, loop detector, pedestrian touch button, blind clock, etc.
