Quick Details
-
Input:
-
4*HD-SDI (HD MI)
-
Output:
-
Dual GbE interfaces
-
Resolution:
-
1920x1080p,1280x720p,720x480p, 720x576p, 480x360p, Auto
-
Video encoding:
-
MPEG-2, H.264/AVC, H.265/HEVC
-
Audio encoding:
-
LC-AAC, HE-AAC and HE-AAC v2; MPEG-1 Layer, AC3, MP3
-
Protocol:
-
UDP/RTP/RTSP/HTTP/MMS/FTP/RTMP/HLS/MPEG-DASH
-
Application:
-
Cable, Satellite, OTT, Mobile, Web, Digital Video Broadcasting
-
Option:
-
8 HD-SDI input
-

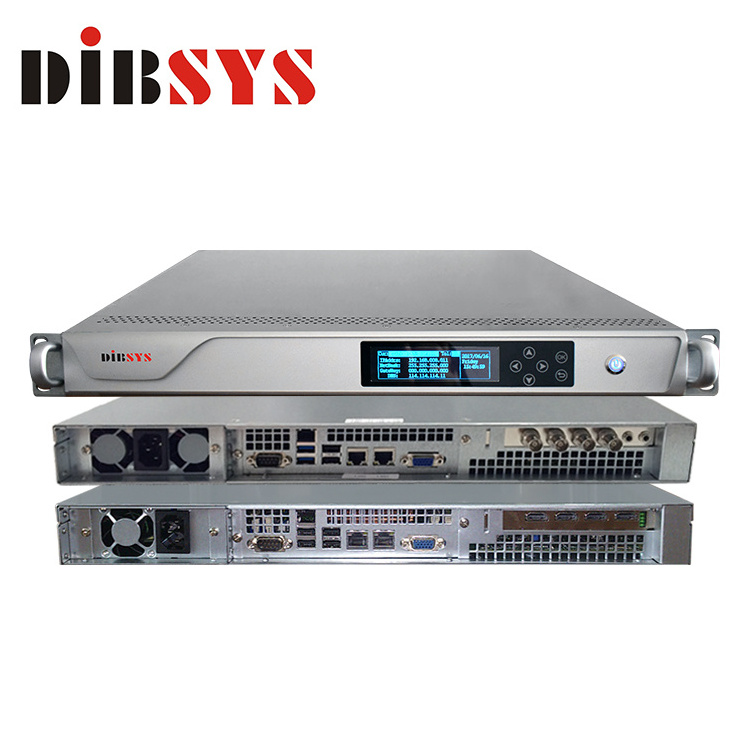

Product name:
-
IPTV SDI Encoder
-
Type:
-
Ip Streaming Encoder
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dibsys
-
Model Number:
-
Anystream315
-
Input:
-
4*HD-SDI (HD MI)
-
Output:
-
Dual GbE interfaces
-
Resolution:
-
1920x1080p,1280x720p,720x480p, 720x576p, 480x360p, Auto
-
Video encoding:
-
MPEG-2, H.264/AVC, H.265/HEVC
-
Audio encoding:
-
LC-AAC, HE-AAC and HE-AAC v2; MPEG-1 Layer, AC3, MP3
-
Protocol:
-
UDP/RTP/RTSP/HTTP/MMS/FTP/RTMP/HLS/MPEG-DASH
-
Application:
-
Cable, Satellite, OTT, Mobile, Web, Digital Video Broadcasting
-
Option:
-
8 HD-SDI input
-
Product name:
-
IPTV SDI Encoder
-
Type:
-
Ip Streaming Encoder
Features
▶Up to 4Channels HD-SDI or HD-MI per chassis(1RU)
▶Highly Reliable, High density 1-RU platform can process up to 4*1080P Full HD profiles
▶Achieve a compression gain of 40-60% over H.264/AVC in subjective quality
▶Support Multi-screen services and Generate High, Medium, Low Bitrates in different IP protocol for IOS, Android devices, Flash.
▶Full HD, MPEG/H.264-to- H.264/HEVC(H.265) any to any transcoding
▶Down/UP Scale converter ability to convert all HD services to SD or SD to HD
▶Picture-in-picture (PIP) operation supported
▶DVB Subtitle and Logo insertion
▶Up to 2 audio channels Per embeded SDI inputs, Option Provides up to 8 audio channels for customization
▶High quality pre-processing including filtering, Deinterlacing, cross scaling
▶Support RTMP, HTTP Live Streaming, Pull/Push HTTP/RTSP, RTMP, UDP, SDP
▶Support for Variable Bit Rate (VBR) encoding maximizes adaptive streaming video quality and bandwidth efficiency
▶Dual Gigabit Ethernet LAN ports provide additional performance and redundancy. Seperate ethernet ports for service streaming and out-of-band management
▶High contrast LCD display
▶Parameter template settings and imports
▶Real time preview of input video stream in encoding and parameter configuration
▶Supports logo insertion and text overlay on outputs
▶Designed for 24*7*365 uninterrupted working
▶Easy to Web management
Main Application
▶Digital broadcast and IPTV headend
▶Multimedia and games, animation, video production
▶Repurposing HD-SDI Video Feeds for Streaming
▶Transrating for Bandwidth Reduction
▶pristine video quality over the lowest bitrates
|
Input
|
|
|
|
Number of Channels
|
4 Ports
|
|
|
SD-SDI
|
SMPTE 259M - 270Mbit/s
|
|
|
HD-SDI
|
SMPTE 292M - 1.485Gbit/s
|
|
|
3G-SDI
|
SMPTE424M - 2.97Gbit/s
|
|
|
Connector
|
1x BNC (75 Ohm)
|
|
|
|
HD MI 1.4a
|
|
|
Output
|
|
|
|
IP Output type
|
Two Gig Ethernet Ports
|
|
|
Connector Type
|
RJ45 100/1000M - Auto Negot
|
|
|
|
MPEG-2 TS (SPTS),Over IP out
|
|
|
|
TS Over UDP/RTP/HTTP
|
|
|
|
RTP over HTTP
|
|
|
|
FLV Over HTTP
|
|
|
|
RTMP
|
|
|
|
MP3 over HTTP
|
|
|
|
FLV
|
|
|
|
ASP
|
|
|
|
HTTP Live streaming Apple HLS (m3u8)
|
|
|
Pre-processing
|
|
|
|
LOGO insertion
Subtitle Overlay |
Option Static or roll subtitle, up to 3 way
|
|
|
Bit Depth
|
8/10-bit
|
|
|
Deinterlace
|
default,Close,Linear,Blend,Bob,Yadif
|
|
|
PID Configuration
|
PMT/Video/Audio PID; PCR delay/disp interval
|
|
|
Advanced Processing
|
De-blocking filter, Scene detection, Automatic MBAFF,CABAC Entropy Encoding
|
|
|
Video encoding
|
|
|
|
Bitrate Contro
|
VBR, CBR, ABR, NearCBR
|
|
|
Resolutions
|
1920x1080p,1280x720p,720x480p,720x576p, 480x360p, Auto
|
|
|
Frame rate
|
2-30fps
|
|
|
Screen Ratio
|
4:3, 16:9
|
|
|
Option Multiple concurrent outputs per each encoding input
|
|
|
|
|
H.265/HEVC High Profile; HEVC Main profile
|
|
|
|
H.264 Main/High Profile 3.0- 5.1
|
|
|
|
H.263 Profile Levels 10, 20, 30
|
|
|
|
MPEG-4 SP, Levels 0, 0b, 1, 2, 3
|
|
|
|
H.264 Baseline Levels 1, 2, 3
|
|
|
Encoding delay
|
1000-2000ms
|
|
|
B-Frame
|
0-5
|
|
|
Reference Frame
|
1-6
|
|
|
Key frame rate
|
1-18
|
|
|
Video Bitrate
|
32kbps to 10Mbps
|
|
|
Enhancement filter
|
Deinterlacing; MABFF CABAC; Noise reduction; Sharpening; Visual Optimizing
|
|
|
Video Delay
|
0-1000ms
|
|
|
Scale
|
Ordinary, Auto Paddingintelligent Scale
|
|
|
Fast Mode
|
Quality Priority,Balanced, Speed Priority
|
|
|
Audio encoding
|
|
|
|
Numbers of encoding
|
2 Channels via embedded in SDI(Provides up to 8 audio channels for customization)
|
|
|
|
AAC,AACv2,AMR
|
|
|
|
D Digital(AC-3)
|
|
|
|
D Digital Plus(EAC-3)
|
|
|
|
MP2A,MP3A,Transparent
|
|
|
Audio Channel
|
Single, Dual, 5.1 Channel
|
|
|
Audio Track
|
0, 1, 2, 3
|
|
|
AV Sync
|
0s, 0.5s, 1s, 3s, 4s, 5s, 6s
|
|
|
Sample rate
|
8khz to 48khz
|
|
|
Bitrate rate
|
8kbps to 384kbps
|
|
|
Volume
|
Ordinary, Intensity1, Intensity2, Intensity3
|
|
|
Sample rate
|
8khz to 48khz
|
|
|
Bitrate rate
|
8kbps to 384kbps
|
|
|
Volume
|
Ordinary, Intensity1, Intensity2, Intensity3
|
|
|
Management
|
|
|
|
Local interface
|
LCD + control buttons
|
|
|
Configuration
|
Web Interface
|
|
|
Port
|
RJ45, 10/100/1000M BaseT
|
|
|
Language
|
English
|
|
|
Environment
|
|
|
|
Power Supply
|
110-240 VAC
|
|
|
Operation temperature
|
0~50℃ (32 -122°F)
|
|
|
Storage temperature
|
-40-70°C (-40-158°F)
|
|
|
Power Consumption
|
100W
|
|
|
Dimensions
|
483mm (W) x 534mm (L) x 45mm (H)
|
|
|
Weight
|
11kg (24lbs)
|
|
|
Models
|
Description
|
|
Anystream315
|
4* HD/SD-SDI in, H264/HEVC encoding
|
|
Anystream310
|
4* HD MI in, H264/HEVC encoding
|
|
