Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
2700K/4200K/6500K/
-
Color Rendering Index(Ra):
-
>80
-
Application:
-
Shopping malls, exhibition rooms, offices
-
Product Weight（kg）:
-
0.19
-
Input Voltage(V):
-
AC 110-265V
-
Lamp Luminous Flux(lm):
-
685lm
-
Model Number:
-
DRCS007-15
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
To save trouble, choose the sheng shi.
-
Lamp body material::
-
die-cast aluminum
-
Panel material::
-
Acrylic
-
Drive power::
-
isolated high-efficiency constant current drive power
-
Beam angle::
-
120 degrees
-
Switch Type::
-
Control the three-stage dimming at the on/off of the switch
-
LED Light Source::
-
COB+SMD
-
Shape::
-
Square
-
Input Voltage(V)::
-
AC 85-265V
-
Driver::
-
constant current driver
-
Working temperature::
-
-20~+58°C
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
>95
-
Lamp Body Material:
-
Aluminum
-
Install Style:
-
Downlights
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
2700K/4200K/6500K/
-
Color Rendering Index(Ra):
-
>80
-
Application:
-
Shopping malls, exhibition rooms, offices
-
Product Weight（kg）:
-
0.19
-
Input Voltage(V):
-
AC 110-265V
-
Lamp Luminous Flux(lm):
-
685lm
-
Model Number:
-
DRCS007-15
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
To save trouble, choose the sheng shi.
-
Lamp body material::
-
die-cast aluminum
-
Panel material::
-
Acrylic
-
Drive power::
-
isolated high-efficiency constant current drive power
-
Beam angle::
-
120 degrees
-
Switch Type::
-
Control the three-stage dimming at the on/off of the switch
-
LED Light Source::
-
COB+SMD
-
Shape::
-
Square
-
Input Voltage(V)::
-
AC 85-265V
-
Driver::
-
constant current driver
-
Working temperature::
-
-20~+58°C
To be durable, choose Shengshi Lighting

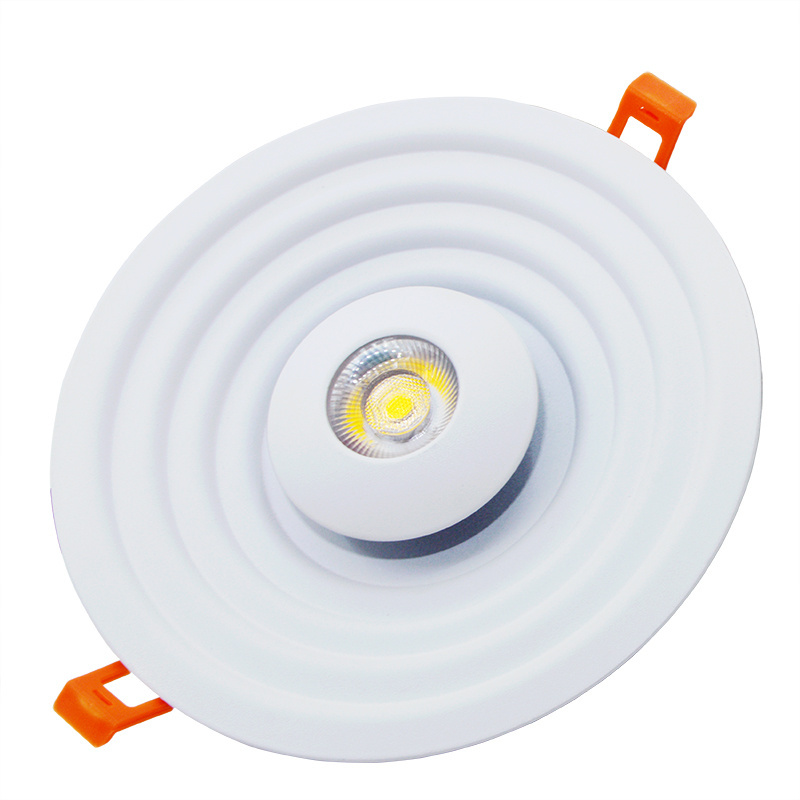

Physical picture of
led
downlight
Detailed Images
1. The lampshade of the led downlight uses an acrylic panel, which will not turn yellow and dust-proof after a long time; it is fashionable when it is bright.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
2. The lamp body made of die-casting aluminum can achieve better heat dissipation and protection.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
High-conductivity aluminum substrate
2. The light source of the
Three-color dimming led spotlight
uses two sets of COBs of large chip groups; the high CRI phosphors produced in Taiwan are aging and light decay to ensure the life of the lamps.
High-efficiency drive power
4. The LED drive power supply adopts the 3★ scheme, and the conversion rate can reach 92%.
Optimized luminescence
5. The SKMAX optical light distribution mirror makes the led spotlight more condensed and not glare.
Ergonomic design
6. The non-slip buckle designed by human nature will not scratch your hands and ceiling.
7. We are a large-scale manufacturer that can customize and OEM for you.
Product Presentation
|
Product Name
|
led downlights
|
|
Model
|
DRCS007
|
|
Material
|
Aluminum
|
|
Voltage
|
AC85-265V
|
|
Power Factor
|
>90%
|
|
Luminous Efficiency
|
>98LM/W
|
|
CRI
|
>85Ra
|
|
Type of Lamp-house
|
Kitchen Bathroom Living Room Bedroom Corridor Concealed
|
|
Style
|
Modern
|
|
Power
|
Panel External diameter
|
CUT-HOLE
|
Height
|
Chip size /quantity
|
COBChip size /quantity
|
|
3+2W
|
98mm
|
80mm
|
23mm
|
COB+SMD
|
4 ㎡
|
|
7+4W
|
120mm
|
110mm
|
25mm
|
COB+SMD
|
5 ㎡
|
|
15+7W
|
175mm
|
160mm
|
28mm
|
COB+SMD
|
6 ㎡
|
|
25+12W
|
225mm
|
205mm
|
32mm
|
COB+SMD
|
8 ㎡
|
Pure high color rendering, let you live real color
The color rendering index is as high as 85Ra. It does not appear to be listless due to the dimness and lack of light. It trulypresents the natural colors of life, so that the murals, photo walls, carpets, and sofas in your home can be dazzling.
Three-level color upgrade.
One lamp changes three colors. Ordinary wall switch can adjust one lamp and three colors, and switch the light as you like. The color is not used to make people have different psychological feelings. The warm white light is warm and soft, and the white light is fresh and bright, which can meet the atmosphere needs of different scenes.
Company Introduction
Zhongshan Shengshi Lighting Co., Ltd. Design exploration and manufacturing of photography hotel furniture, office lighting, indoor lighting, commercial lighting, shopping mall lighting, office lighting, hotel lighting, outdoor lighting, villa lighting, high-end lighting services, architectural lighting Integrating customers' new technologies and new materials, providing services for lighting products, using light, improving the living environment, and adding value to customers. Since 2012, the company has its own competitive new technology research and development team and production line, and strives to combine product technology and quality to become an industry leader. With the maturity and perfection of the LED product market. The company focuses on research and production advantages in LED commercial lighting, and develops LED lighting products. The company's products mainly include: LED downlights, track lights, fire-fighting downlights and grille lights. Extensively penetrate into land projects, hotels, conferences, office buildings, large chain supermarkets, etc. Products have passed CCC, CE, FCC, etc. , RoHS and other national certifications. Our product market covered European, American, Mid East, Australian and domestic commercial lighting markets, and Hong Kong has a solid and reliable business partner.
While developing new products, the company continuously introduces management and technical personnel, and strictly implements the ISO9001 quality management system. Every process from product development and design to hardware manufacturing, assembly, and finished product shipments is strictly inspected in accordance with the quality system standards. , Deeply praised and trusted by new and old customers! Shengshi Lighting will continue to move forward with the trend of the times, keep pace with the times, and provide the industry with LED lighting solutions in the industry.
Zhongshan Shengshi Lighting Co., Ltd. is located in Guzhen Town, Zhongshan City, 128 kilometers from Shenzhen to the south and 46 kilometers from Guangzhou to the north. It is a large-scale LED commercial lighting manufacturer; the existing plant is 3000 square meters, with an annual output value of more than 60 million. There are 50 employees, including: 3 researchers and 5 quality engineers, with a monthly output of 300,000.
FAQ
Q.
What is the MOQ ?
For sample---1pcsFor Product----1 carton box is available,please contact for packing.
Q.
Can I mix different designs?
Sure.different emitting colorcan be mix for same size.
Q.
Can I get a lower price if I order large quantities?
Yes, cheaper prices with more bigger size orders.
Q.
Can I add or delete items from my order if I change my mind ?
Yes, but you need to tell us asap. If your order has been done in our production line, we cannot change.
Q. Can I get the pre-production sample?
Q. Can I get the pre-production sample?
Yes, we will send you production sample, after you confirm, then we will start production.
Q. When you ship my order?
Q. When you ship my order?
Normally 7-15days after receiving your payment, but it can be negotiated based on order qty and production schedule. Q. How about the quality guarantee period? 2 or 3 year!
Q.
How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.15%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q:How to choose
led downlight
?
A：If it is new, you can choose the power at will. If it is a replacement, be sure to replace a lamp with equivalent lumen, which can be inferred by the following formula. (Lamp lumens * luminaire power = new luminaire lumens* new luminaire power) The following are the lumens of various lamps for reference. Generally, the power will be written on the box.
1: Determine the color temperature At present,
the color temperature of lamps on the market mainly includes warm white light (3000-3500K), neutral white (4000-4500K), pure Baiguang (5000-6500), and cold white light (above 7000K). Choosing a suitable color temperature will be unexpected. The lighting effect, especially for commercial occasions.
2: Determine the light emitting angle.
At present, the spotlights on the market have different angles, and basically 5°-180° can be bought. If you need a reflective effect, that is, the light is wide, then choose a larger angle. If you need a spotlight effect, that is, the light effect is narrower, choose a smaller angle. If there is no requirement, you can choose some intermediate angles.
3: Determine whether to drive. At present,
there are driven lamps and non-driving lamps on the market. The lamp with driver has no flicker, and the life span is longer and shorter depends on the material of the LED driver The lamp with driver has stroboscopic,and the life is longer, with slight stroboscopic Lamps without a driver have a shorter life, and there is a slight flicker. The flicker is caused by the alternating high and low alternating current, which causes the light to turn on and off, but it is invisible to the naked eye. It is usually adjusted to the camera state with a mobile phone. The flashing is stroboscopic.
