Quick Details
-
Model Number:
-
LW26
-
Max. Current:
-
160A
-
Mechanical Life:
-
0.3*10000000 times
-
supply:
-
600000pcs/month
-
Panel:
-
OFF-ON
-
Quality Assurance::
-
2 years
-
Color:
-
black/red explosion-proof rotary switch
-
Have stock:
-
Yes
-
Service:
-
OEM/ODM
-
Type:
-
2 position selector switch
-
packing:
-
Standard exporting carton
-
Delivery Detail:
-
within 7 days
-
Certification:
-
CE ISO9001, ce
Quick Details
-
Max. Voltage:
-
400V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEYU
-
Model Number:
-
LW26
-
Max. Current:
-
160A
-
Mechanical Life:
-
0.3*10000000 times
-
supply:
-
600000pcs/month
-
Panel:
-
OFF-ON
-
Quality Assurance::
-
2 years
-
Color:
-
black/red explosion-proof rotary switch
-
Have stock:
-
Yes
-
Service:
-
OEM/ODM
-
Type:
-
2 position selector switch
-
packing:
-
Standard exporting carton
-
Delivery Detail:
-
within 7 days
-
Certification:
-
CE ISO9001, ce

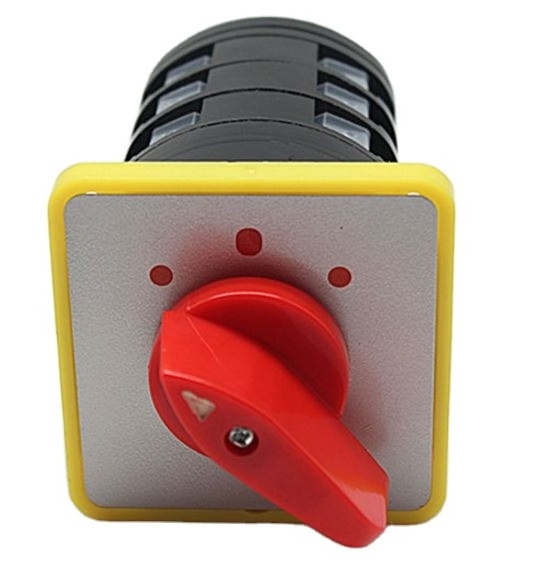

LW26 400V 160A Rohs Ce Certificate Changeover Switch With 2 position selector Switch
Why Choose us ?
1. Assessed 7 years Gold Supplier
2.Passed by CE ISO9001 certification and Patent
3.100%QC inspection before shipment
4.Best quality& Best service with Competitive price
Introduction
The LW26 sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits.For breaking and closing,change-over of circuits under unfrequenly manual operation.And the typical application are:control switch of 3 phase motors,control switch gear,control switch of instruments,and change-over switch of machinery and welding machine.
The series comply with the GB 14048.3,GB 14048.5 and IEC 60947-3,IEC 60947-5-1.
The LW26 series have 7 current ratings:10A,20A,25A,32A,63A,125A and 160A.
The LW26 series rotary switch were designed for multiple functions,wide variety of appli -cations.
The LW26-10,LW26-20,LW26-25,and LW26-32F have finger protection terminals.
LW26 series rotary switch are an excellent substitute for LW2,LW5,LW6,LW8,LW12,LW15,HZ5, HZ10,and HZ12.
The LW26 series rotary switch has two derivatives,LW26GS Pad-lock and LW26S lock.
Both of them are applicable in circuits when an physical control is required.
We can equip protective box for 20A,25A,32A and 63A.
|
Description |
LW26-10 |
LW26-20 |
LW26-25 |
LW26-32 |
LW26-63 |
LW26-125 |
LW26-160 |
|||||||||||||
|
Rated insolation voltage |
Ui |
V |
660 |
660 |
660 |
660 |
660 |
660 |
660 |
|||||||||||
|
Rated thermal current |
Ith |
A |
10 |
20 |
25 |
32 |
63 |
125 |
160 |
|||||||||||
|
Rated working voltage |
Ue |
V |
240 |
440 |
24 |
110 |
240 |
440 |
24 |
110 |
240 |
440 |
240 |
440 |
240 |
440 |
240 |
440 |
240 |
440 |
|
Rated working current |
Ie |
|
|
|
|
|
20 |
20 |
|
|
|
|
|
|
|
|
|
|
|
|
|
AC-21A AC-22A |
|
A |
10 |
10 |
|
|
|
|
|
|
25 |
25 |
32 |
32 |
63 |
63 |
100 |
100 |
150 |
150 |
|
AC-23A |
|
A |
7.5 |
7.5 |
|
|
15 |
15 |
|
|
22 |
22 |
30 |
30 |
57 |
57 |
90 |
90 |
135 |
135 |
|
AC-2 |
|
A |
7.5 |
7.5 |
|
|
15 |
15 |
|
|
22 |
22 |
30 |
30 |
57 |
57 |
90 |
90 |
135 |
135 |
|
AC-3 |
|
A |
5.5 |
5.5 |
|
|
11 |
11 |
|
|
15 |
15 |
22 |
22 |
36 |
36 |
75 |
75 |
95 |
95 |
|
AC-4 |
|
A |
1.75 |
1.75 |
|
|
3.5 |
3.5 |
|
|
6.5 |
6.5 |
11 |
11 |
15 |
15 |
30 |
30 |
55 |
55 |
|
AC-15 |
|
A |
2.5 |
2.5 |
|
|
5 |
4 |
|
|
8 |
5 |
14 |
6 |
|
|
|
|
|
|
|
AC-13 |
|
A |
|
|
12 |
0.4 |
0.4 |
|
20 |
0.5 |
0.5 |
|
|
|
|
|
|
|
|
|
|
power |
|
P |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AC-23A |
|
KW |
1.8 |
3 |
|
|
3.7/2.5 |
7.5/3.7 |
|
|
5.5/3 |
11/5.5 |
7.5/4 |
15/7.5 |
15/10 |
30/18.5 |
30/15 |
45/22 |
37/22 |
75/37 |
|
AC-2 |
|
KW |
2.5 |
3.7 |
|
|
4 |
7.5 |
|
|
5.5 |
11 |
7.5 |
15 |
18.5 |
30 |
30 |
45 |
37 |
55 |
|
AC-3 |
|
KW |
1.5 |
2.2 |
|
|
3/2.2 |
5.5/3 |
|
|
4/3 |
7.5/3.7 |
5.5/4 |
11/5.5 |
11/6 |
18.5/11 |
15/7.5 |
30/13 |
22/11 |
37/18.5 |
|
AC-4 |
|
KW |
0.37 |
0.55 |
|
|
0.55/0.75 |
1.5/1.5 |
|
|
1.5/1.1 |
3/2.2 |
2.7/1.5 |
5.5/3 |
5.5/2.4 |
7.5/4 |
6/3 |
12/5.5 |
10/4 |
15/7.5 |
Mechanical life without load:0.3×106times,operation frequency is 300 times/h..
Mechanical life with load:AC-15 DC-13 to 0.01×104times operation frequency is 300 times/h.
AC-3 to 0.1×104times operation frequency is 120 times/h.
AC-4 to 0.1×104times operation frequency is 120 times/h.
