Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Reverse Speed(km/h):
-
23
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CMEC
-
Weight:
-
16500 kg
-
Dimension(L*W*H):
-
8970*2625*3420mm
-

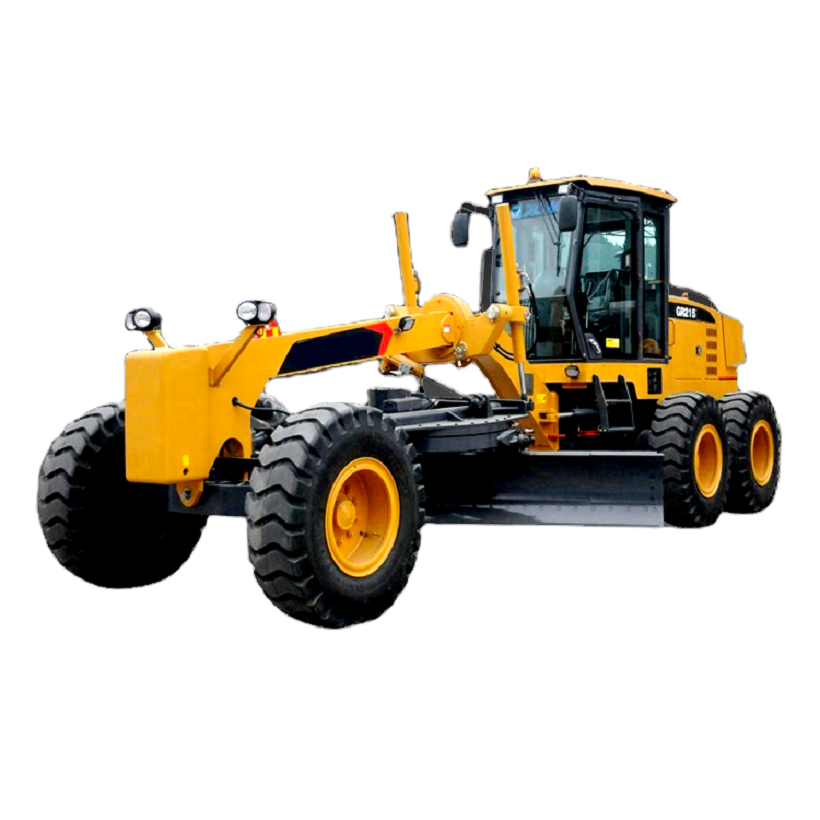

Product name:
-
Motor Grader
-
Model:
-
GR215
-
Rated Power (kW/rpm):
-
160/2200
-
Application:
-
Construction Site
-
Engine Brand:
-
Cummins
-
Engine model:
-
6CTA8.3-C215
-
Tire specification:
-
17.5-25
-
Maximum lift height:
-
450mm
-
Maximum cutting depth:
-
500mm
-
Cutting angle:
-
28°-70°
Quick Details
-
Forward Speed(km/h):
-
38
-
Engine Brand:
-
Top brand
-
Working diameter:
-
4270x610mm
-
Marketing Type:
-
Hot Product 2022
-
Reverse Speed(km/h):
-
23
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CMEC
-
Weight:
-
16500 kg
-
Dimension(L*W*H):
-
8970*2625*3420mm
-
Product name:
-
Motor Grader
-
Model:
-
GR215
-
Rated Power (kW/rpm):
-
160/2200
-
Application:
-
Construction Site
-
Engine Brand:
-
Cummins
-
Engine model:
-
6CTA8.3-C215
-
Tire specification:
-
17.5-25
-
Maximum lift height:
-
450mm
-
Maximum cutting depth:
-
500mm
-
Cutting angle:
-
28°-70°
|
Engine model
|
6CTA8.3-C215
|
|
Rated power/speed
|
160kW/2200rpm
|
|
Overall dimension (standard)
|
8970x2625x3420
|
|
Total weight (standard)
|
16500 kg
|
|
Tire specification
|
17.5-25
|
|
Ground clearance (front axle)
|
430mm
|
|
Tread
|
2156mm
|
|
Space of front and rear axles
|
6219 mm
|
|
Space of middle and rear wheels
|
1538 mm
|
|
Maximum lift height
|
450mm
|
|
Maximum cutting depth
|
500mm
|
|
Length & chord height Khife
|
4270x610mm
|
|
Cutting angle
|
28°-70°
|
Q: How does your factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality
controlling from the production. All our products have gained CE, FCC, ROHS certification.
Q:What can you do?
A:1.AII of our products have proceeded aging test before shipment and we guarantee safety while using our products.
2. OEM/ODM orders are warmly welcomed!
Q:Warranty and return:
A:1. Products have been tested by 48hours continuous load aging before ship out.wanrranty is 2 years
2. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q:Is sample available and free?
A:Sample is available, but the sample cost should be pay by you. The cost of sample will be refund after further order.
Q:Do you accept customized order?
A:Yes, we do.
Q:What's the delivery time?
A:It usually takes 7-20 days after confirming payment, but specific time should be based on tne order quantity.
