Quick Details
-
Theoretical Shot Volume(cm³):
-
47 cm³
-
Injection Rate (g/s):
-
39 g/s
-
Injection Weight (g):
-
55 g
-
Screw Speed (rpm):
-
0 - 150 rpm
-
Screw diameter (mm):
-
26 mm
-
Distance between Tie Bars:
-
200 mm
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
HM-15T-PUSB
-
Brand Name:
-
Hommar
-
Power (kW):
-
4.2 kW
-
Product name:
-
Data Cable Molding Machine
-
Keyword:
-
plastic usb cable injection moulding machine
-
PLC:
-
Hiah Precise Control. High sensitive response
-
motor:
-
Save power by 30% and low noise
-
Hydraulic Motor:
-
low noise
-
Pump:
-
Low noise
-
Oil Cylinder:
-
Anti brasive
-
Heating rings:
-
Longer span life
-
Position transducer:
-
High Prescise Control
-
Electronic parts:
-
Stable High sensitive
Quick Details
-
Mold Height(mm):
-
60 - 100 mm
-
Ejector Stroke(mm):
-
30 mm
-
Ejector Force(kN):
-
6.9 kN
-
Theoretical Shot Volume(cm³):
-
47 cm³
-
Injection Rate (g/s):
-
39 g/s
-
Injection Weight (g):
-
55 g
-
Screw Speed (rpm):
-
0 - 150 rpm
-
Screw diameter (mm):
-
26 mm
-
Distance between Tie Bars:
-
200 mm
-
Weight (KG):
-
600 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
HM-15T-PUSB
-
Brand Name:
-
Hommar
-
Power (kW):
-
4.2 kW
-
Product name:
-
Data Cable Molding Machine
-
Keyword:
-
plastic usb cable injection moulding machine
-
PLC:
-
Hiah Precise Control. High sensitive response
-
motor:
-
Save power by 30% and low noise
-
Hydraulic Motor:
-
low noise
-
Pump:
-
Low noise
-
Oil Cylinder:
-
Anti brasive
-
Heating rings:
-
Longer span life
-
Position transducer:
-
High Prescise Control
-
Electronic parts:
-
Stable High sensitive
Products Description

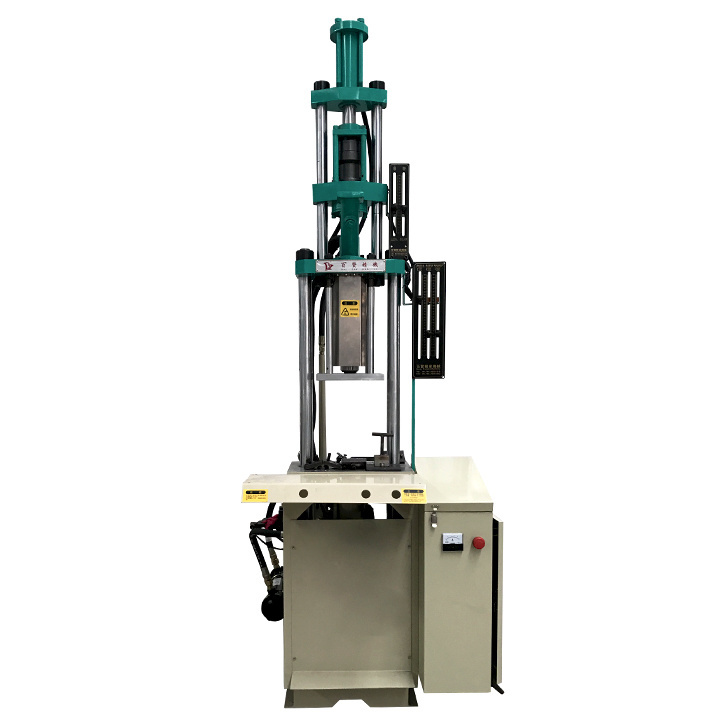

15T Cheap Plastic Usb Cable Making Injection Moulding Machine Manual for iphone
|
Clamping Force
|
15T
|
|
Plastic Type
|
Thermoplastic
|
|
Machine Type
|
Vertical Plastic Injection Molding Machine
|
|
Screw Diameter
|
22-26mm
|
|
Screw Stroke
|
90mm
|
|
Machine Dimesions
|
1200mm*900mm*2300mm
|
Injection Unit:
Use high-quality screw;
Clamping Unit:
①Use mechanical direct-locking structure, longer mold and service life and lower energry consumption; ② High positioning accurancy.
Controller:①
Porcheson PLC; ② High Precise Control; ③ High sensitive response;
Infrared sensor:
double infrared sensor. It has a greater range of induction which can protect the safety of the works better.
Electronic parts: Schneider, Fuji, Fotek Electronic part. High sensitive and more stable.
Framework: Reinforced and rugged steel construction.
Electronic parts: Schneider, Fuji, Fotek Electronic part. High sensitive and more stable.
Framework: Reinforced and rugged steel construction.
Specification
|
|
Mold
|
Unit
|
HM-V15T
|
|
注射装置
Injection Unit
|
Screw Diameter
|
mm
|
22-26
|
|
|
Screw Stroke
|
mm
|
90
|
|
|
Theoretical Shot Volume
|
cm³
|
34-47
|
|
|
Injection Molding Quality
|
g
|
39*55
|
|
|
|
oz
|
18.5-26
|
|
|
Max.Injection Pressure
|
(kgf/cm²)
|
1625-1164
|
|
|
Injection Rate
|
cm³/s
|
28-39
|
|
|
Screw Speed
|
r.p.m
|
0-150
|
|
合模装置
Mold Clamping Unit
|
Clamping Force
|
KN(tf)
|
150(15)
|
|
|
Clamping Stork
|
mm
|
200
|
|
|
Min.Mold Thickness
|
mm
|
60(100)
|
|
|
Max.Open Distance
|
mm
|
260(300)
|
|
|
Space Between Columns
|
mm
|
280
|
|
|
Max.Size of Mold
|
mm
|
240
|
|
|
Plate Size
|
mm
|
380*350
|
|
|
Distance of Product Out of Mold
|
mm
|
30
|
|
|
Ejector Force
|
KN(tf)
|
0.7
|
|
|
QTY of Ejector
|
pcs
|
1
|
|
其他
General
|
System Pressure
|
Mpa(kgf/cm²)
|
13.7(140)
|
|
|
Motor Power
|
kw(HP)
|
2.2(5)
|
|
|
Electric Power
|
kw
|
2
|
|
|
Temperature Stage
|
|
2+1
|
|
|
Mechanine Dimesions
|
mm
|
1200*900*2300
|
|
|
Machine Weight
|
tf
|
0.6
|
