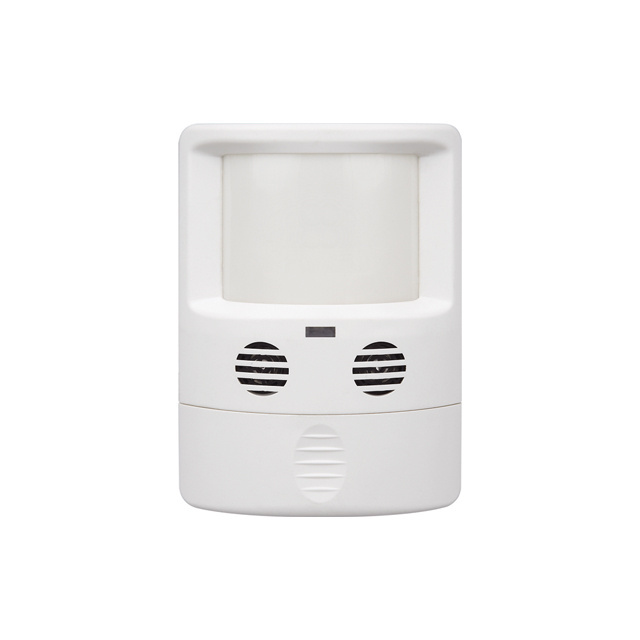

Dual Technology Ultrasonic and Passive Infrared Line Voltage Wall Mount Occupancy Sensor
Dual Technology Ultrasonic and Passive Infrared Line Voltage Wall Mount Occupancy Sensor
Dual Technology Ultrasonic and Passive Infrared Line Voltage Wall Mount Occupancy Sensor
Dual Technology Ultrasonic and Passive Infrared Line Voltage Wall Mount Occupancy Sensor
Dual Technology Ultrasonic and Passive Infrared Line Voltage Wall Mount Occupancy Sensor
Dual Technology Ultrasonic and Passive Infrared Line Voltage Wall Mount Occupancy Sensor
Dual Technology Ultrasonic and Passive Infrared Line Voltage Wall Mount Occupancy Sensor
Dual Technology Ultrasonic and Passive Infrared Line Voltage Wall Mount Occupancy Sensor

Dual Technology Ultrasonic and Passive Infrared Line Voltage Wall Mount Occupancy Sensor

FOB Reference Price: Get Latest Price
≥100 Pieces
US $45
≥3000 Pieces
US $34
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
MDW-V
Place of Origin:
Zhejiang, China
Brand Name:
HONGJI/OEM
Theory:
Ultrasonic / Passive Infrared Sensor
Output:
Analog Sensor
Brand:
Sensor Switch
Product name:
Sensor
Voltage:
120/277VAC, 50/60Hz
Fluorescent:
600VA@120VAC / 1385VA@277VAC
Motor:
1/4Hp
Incandescent:
800W
Time Delay:
30 Sec to 30 Mins
PIR Coverage:
1000ft2
Ultrasonic Coverage:
800-1200ft2
Material:
PC
Certificate:
UL

Quick Details

Use:
Position Sensor
Mounting Type:
Wall occupancy sensor
Description:
Dual Technology Wall occupancy sensor
Model Number:
MDW-V
Place of Origin:
Zhejiang, China
Brand Name:
HONGJI/OEM
Theory:
Ultrasonic / Passive Infrared Sensor
Output:
Analog Sensor
Brand:
Sensor Switch
Product name:
Sensor
Voltage:
120/277VAC, 50/60Hz
Fluorescent:
600VA@120VAC / 1385VA@277VAC
Motor:
1/4Hp
Incandescent:
800W
Time Delay:
30 Sec to 30 Mins
PIR Coverage:
1000ft2
Ultrasonic Coverage:
800-1200ft2
Material:
PC
Certificate:
UL

Dual Technology Ultrasonic and Passive Infrared Line Voltage Wall Mount Occupancy Sensor

Banner

Dimmers , Fan Speed Controls , Motion Sensors , Timers , GFCIs , USB Charger Receptacles ,
Switches , Receptacles , Floor Boxes , Plugs and Connectors , Flush Mount Receptacles ,
Locking Devices , Data-Com Devices , Wallplates

Our Advantage
1. 10+ years experience in design and manufacturing.
2. We have UL recognized laboratory.
3. A wide selection of products.
4. ALL of our goods have got certificates such as cULus and cETLus etc.
5. We have sold our products to GE, THD, LOWE'S, Wal-Mart, etc.
6. The capabilities of our team and equipment allow us to design, develop, and do more than just OEM and ODM.
7. The production area is about 20000square meter (WENZHOU).

Product Description

MDW-V
Electrical Specifications
Voltage 120/277VAC, 50/60Hz
Fluorescent 600VA@120VAC / 1385VA@277VAC
Motor 1/4Hp
Incandescent 800W
Time Delay 30 Sec to 30 Mins
Walk-Through Mode 3 minutes if no activity after 30 seconds
Test Mode 5 seconds at initial power up or DIP switch reset
PIR Coverage
Coverage 1000ft2
Sensitivity Adjustment Automatic or Low (DIP switch setting)
Ultrasonic Coverage
Coverage 800-1200ft2
Sensitivity Adjustment Minimum to Maximum (trimpot)
Frequency 40kHz
Environment Specifications
Operating Temperature 32℉-131℉
Material Specifications
Material PC
Standards & Certifications
Certification/Listing UL
Warranty 2 Year Limited


Related Products

Send your inquiry details in the below for free sample,click send now

Company information

YUEQING HONGJI TRADE CO., LTD .is a manufacturing and trading combination company that specializes in the design, manufacturing and marketing of a series of energy management, lighting controls and wiring devices since 2009. We utilize the most advanced technology and engineering skills to bring you the newest innovations in lighting controls and wiring devices such as: floor box es , dimmers, fan speed controls, occupancy sensors, timers, receptacles, switches, locking devices, data-com devices, wall plates, etc.

YUEQING HONGJI TRADE CO., LTD .product line covers over 700 different product solutions for residential, commercial, institutional, industrial electrical and datacom applications which make us an ideal co-worker for builders, contractors, specifiers, MROs and distributors.

The company’s ISO9001 production facilities encompass 450,000 square feet and are among the most modern and technically advanced. Over 300 employees apply best-practice product development, manufacturing techniques and stringent quality-control measures to assure YUEQING HONGJI TRADE CO , LTD.devices dependable performance .

Certifications

Packaging & Shipping

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: We accept TT .

Q3. What is your terms of delivery?
A: FOB, CFR, CIF.

Q4. How about your delivery time?
A: Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery .

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q9: What kind of certification do you have ?

A: We have the UL, cUL, ISO9001 and ETL etc.
